研磨介质

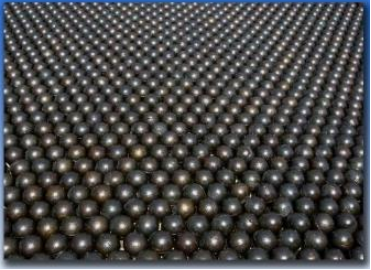

高铬钢球
High-chrome cast grinding balls with uniform size, high hardness and excellent wear resistance — engineered for ball mills in mining and cement.
产品
为最严苛的矿山而铸，经久耐用。
六大产品系列，一个理念：每一件铸件都为其将面对的具体工况量身设计。
高铬铸造钢球
Cr12 · HRC ≥ 58 · 冲击韧性 ≥ 3 J/cm² · 符合 GB/T17445-2009
最大 Φ80mm年产能 2.3 万吨应用于德兴铜矿
锻造钢球
Φ100–Φ140mm · 四种规格 · 余干分公司年产 8000 吨
西藏华泰龙云南锡业湖南黄金洞
产品图集
公司产品图集
新上传的产品图集中展示于此，涵盖破碎机衬板、电铲总成、矿山辅助车辆与磨机衬板系统等。
钢球

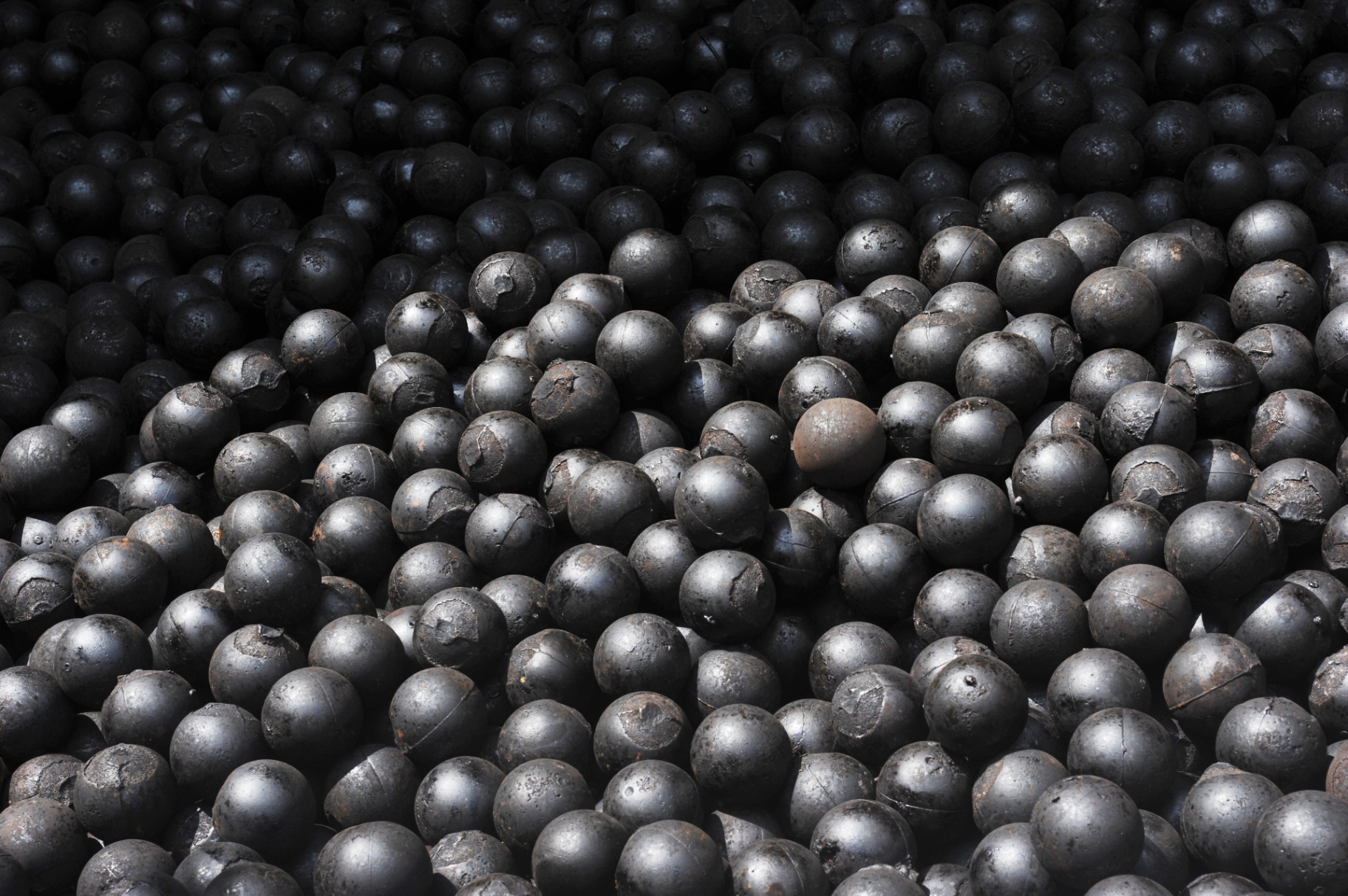

热处理高铬钢球
Heat-treated high-chrome grinding balls offering stable hardness, low breakage rate and excellent wear performance.
磨机衬板

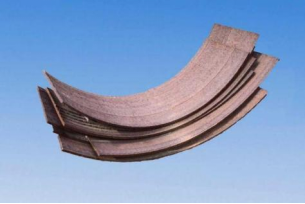

新型耐磨复合衬板（弧形）
Next-generation curved composite liner — high-hardness ceramic / carbide wear layer metallurgically bonded to a tough steel backing for superior service life.
磨机衬板

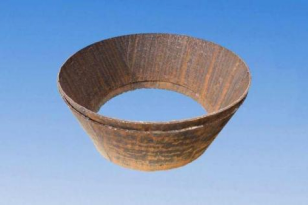

新型耐磨复合衬板（锥形）
Conical wear-resistant composite liner for chutes, cyclones and crusher cavities — combines extreme abrasion resistance with shock-tolerant steel substrate.
磨机衬板

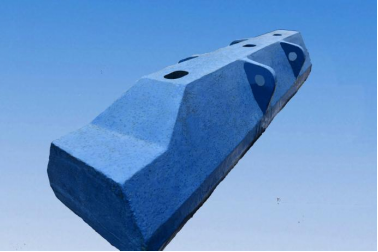

半自磨机衬板
Heavy-duty semi-autogenous (SAG) mill liner — high-impact wear-resistant casting engineered for long service life in large-diameter SAG mills.
磨机衬板

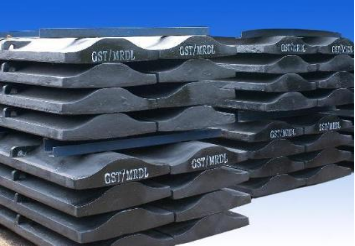

Ф3.2×3.1m 球磨机衬板
Complete set of high-manganese / high-chrome ball mill liners for Ф3.2×3.1 m mills — stacked and ready for shipment, marked GST/MRDL.
磨机衬板

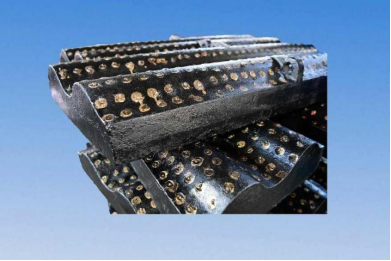

TiC 棒增强高锰钢复合衬板
High-manganese steel composite liner reinforced with titanium carbide (TiC) rod inserts — combines extreme surface hardness with shock-resistant matrix toughness.
磨机衬板

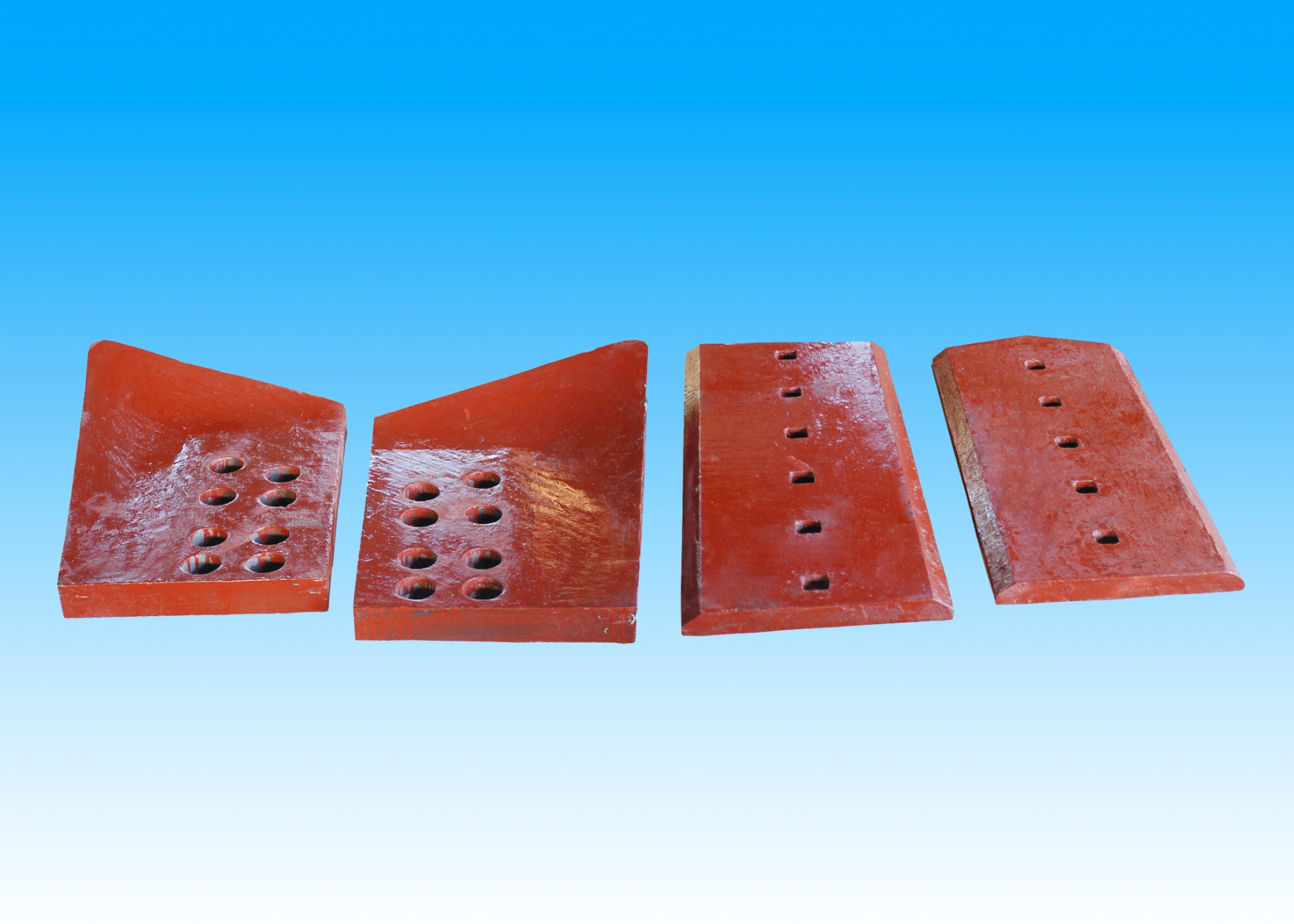

磨机衬板套件
Bolted mill liner plates in matched corner and shell profiles, primer-coated and ready for installation.
磨机衬板

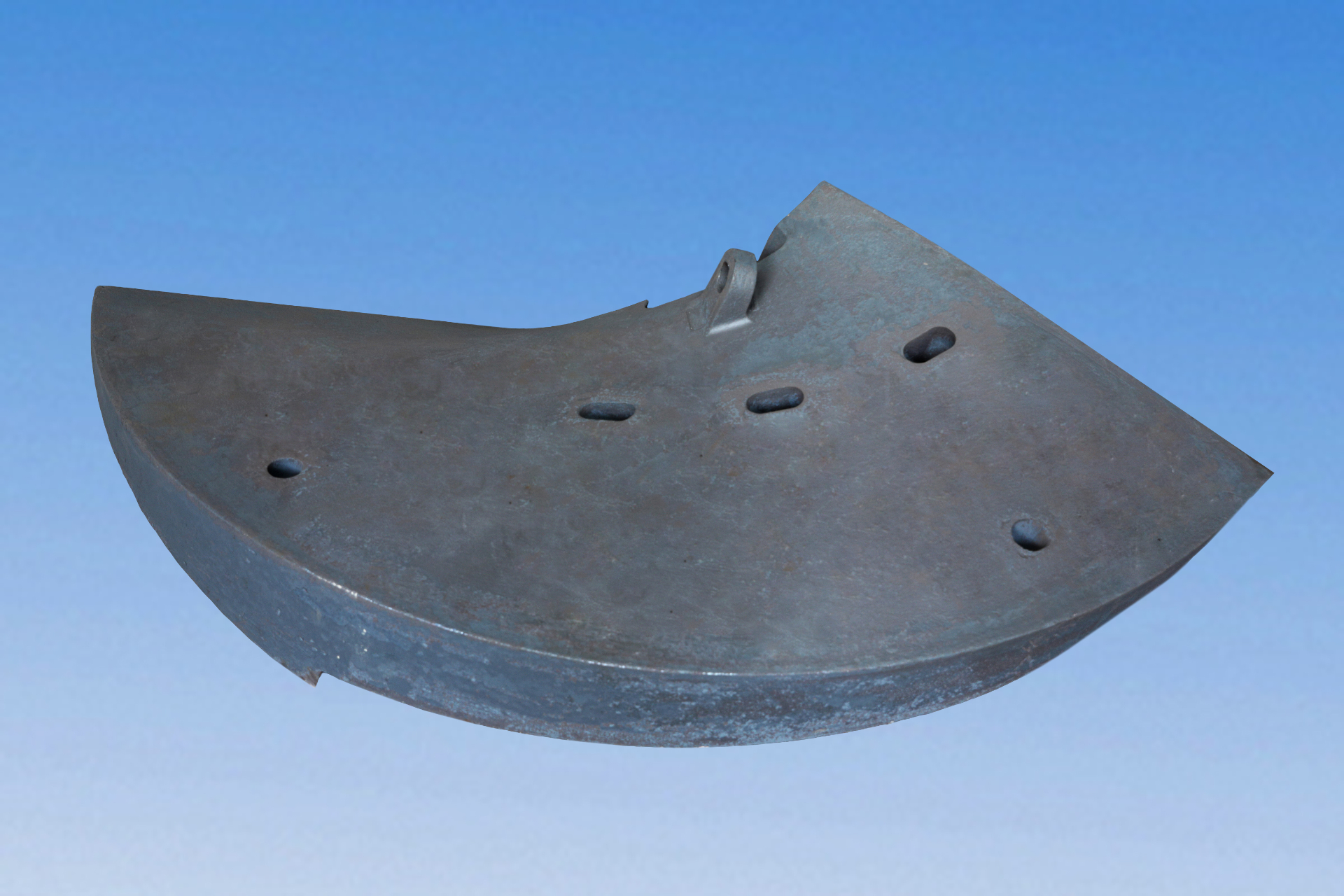

弧形扇段磨机衬板
Heavy curved sector liner with lifting lug and bolt slots for large-diameter ball and SAG mills.
磨机衬板

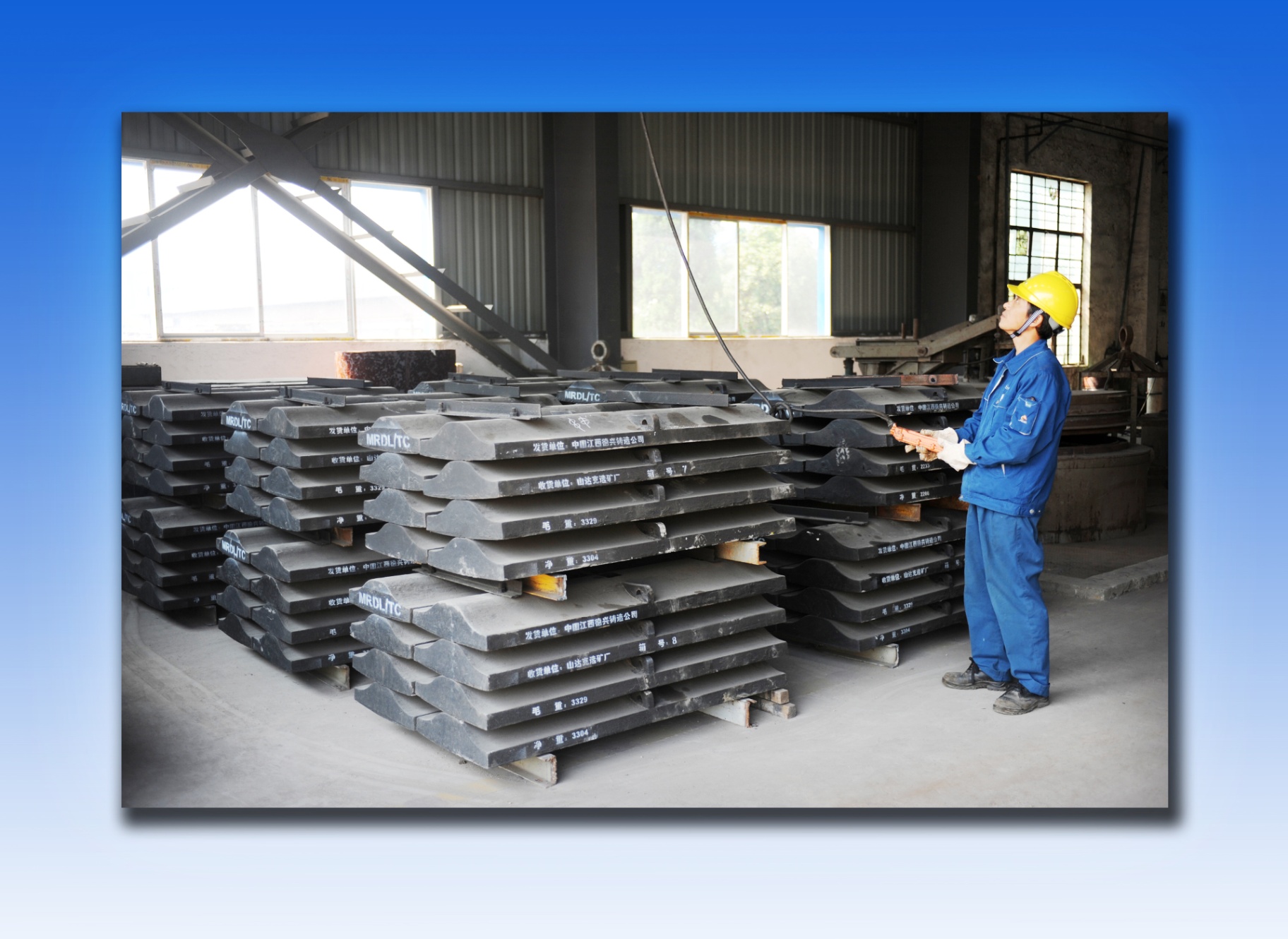

磨机衬板成品发货库存
Finished mill liner castings stacked and tagged for shipment to mine sites — full traceability with gross/net weight marking.
磨机衬板

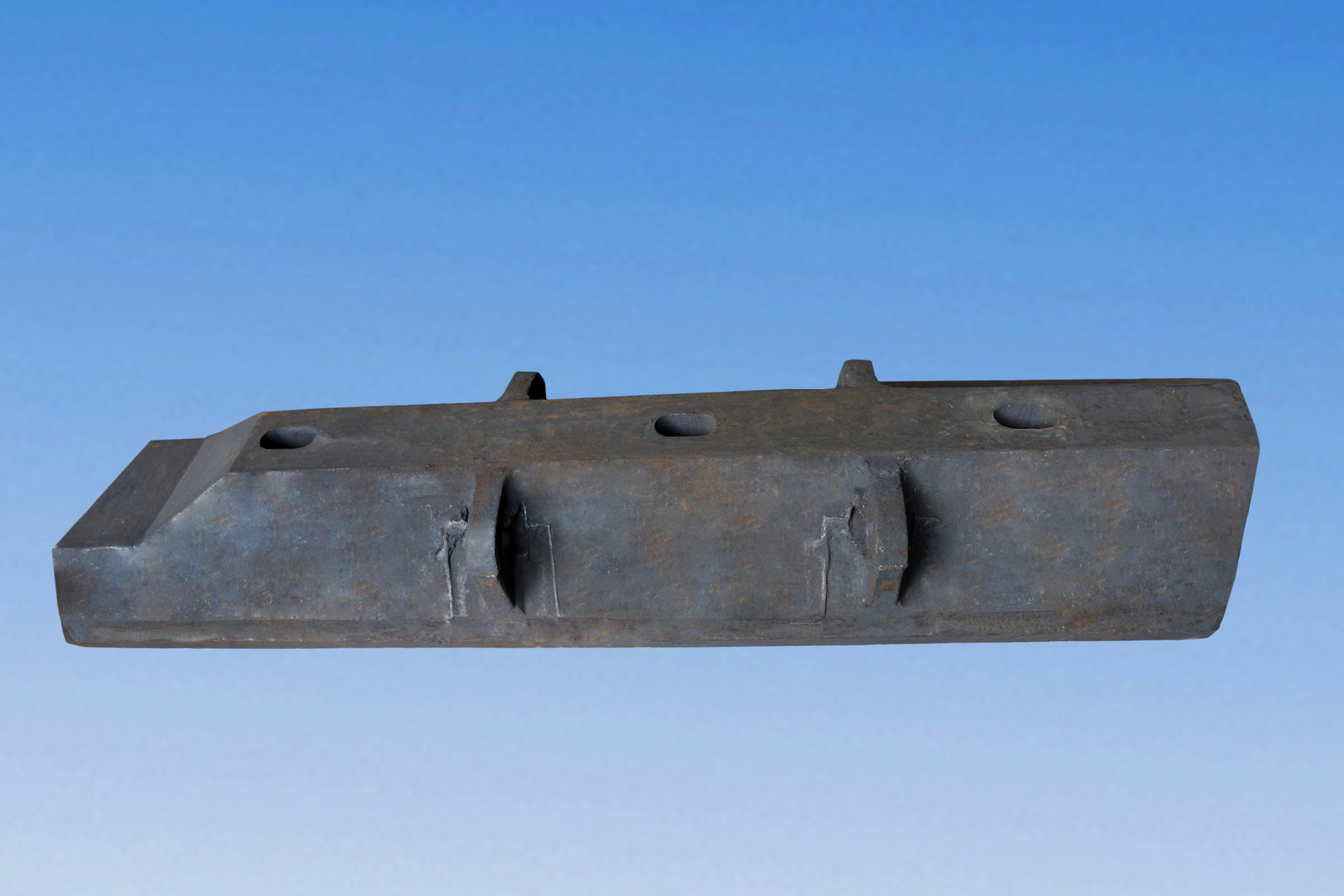

半自磨机提升条铸件
As-cast SAG mill lifter bar with bolt holes and lifting tabs, supplied in high-chrome or alloy steel grades.
磨机衬板

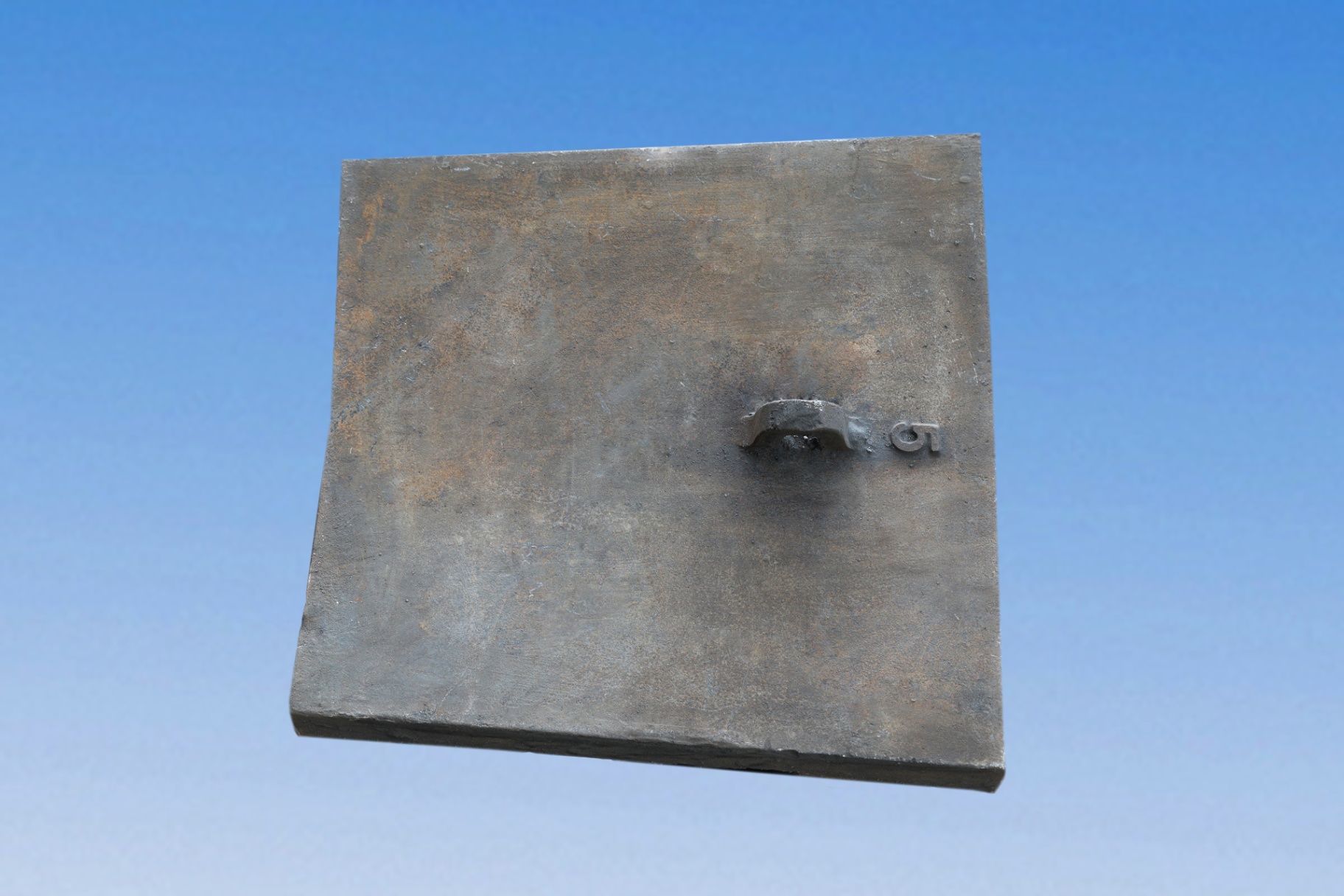

方形筒体衬板
Square shell liner casting with integral lifting lug for ball mill shell positions, machined to drawing.
磨机衬板

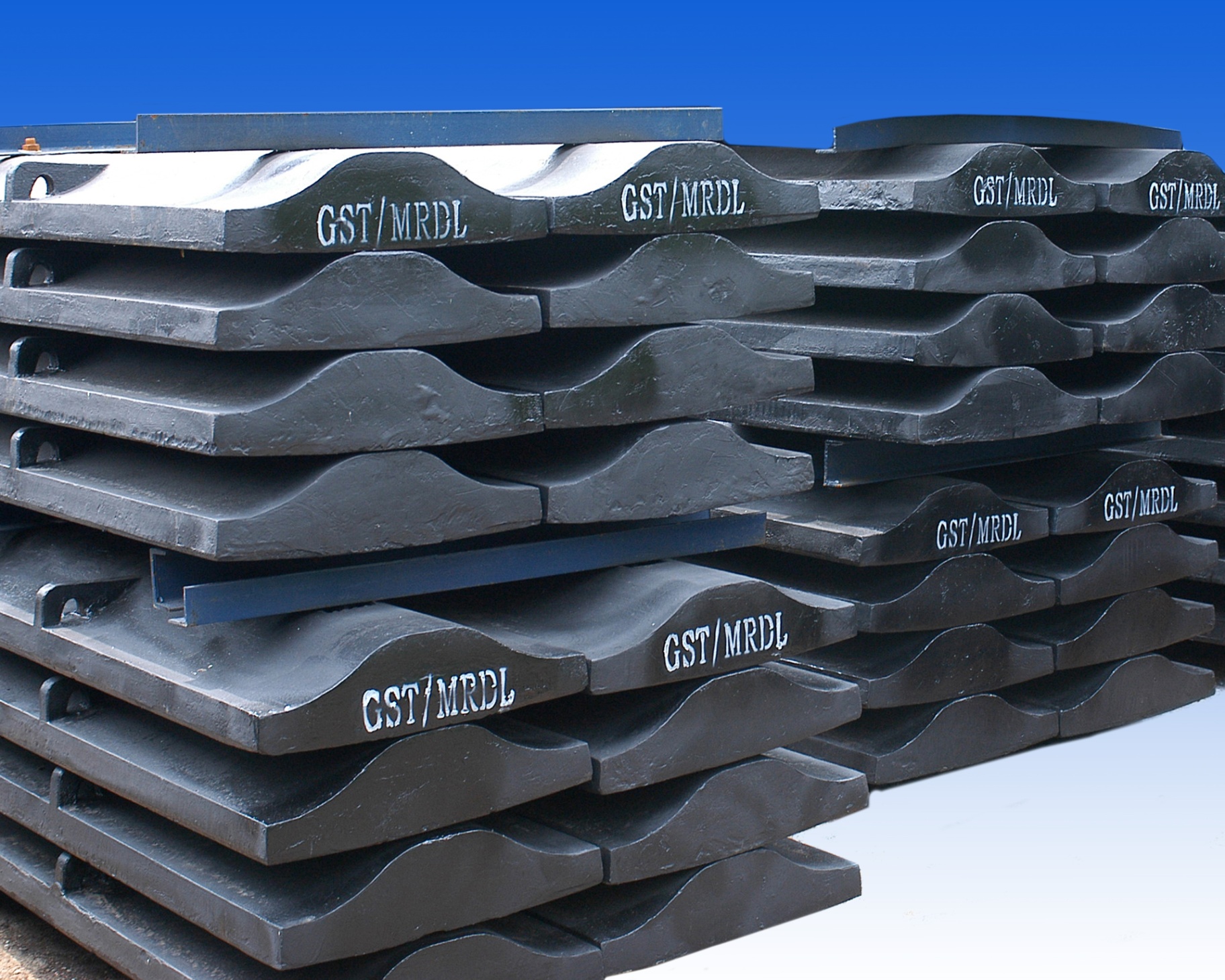

球磨机衬板
Stacked wave-profile liner plates for ball mills, cast to control charge motion and maximize wear life.
磨机衬板

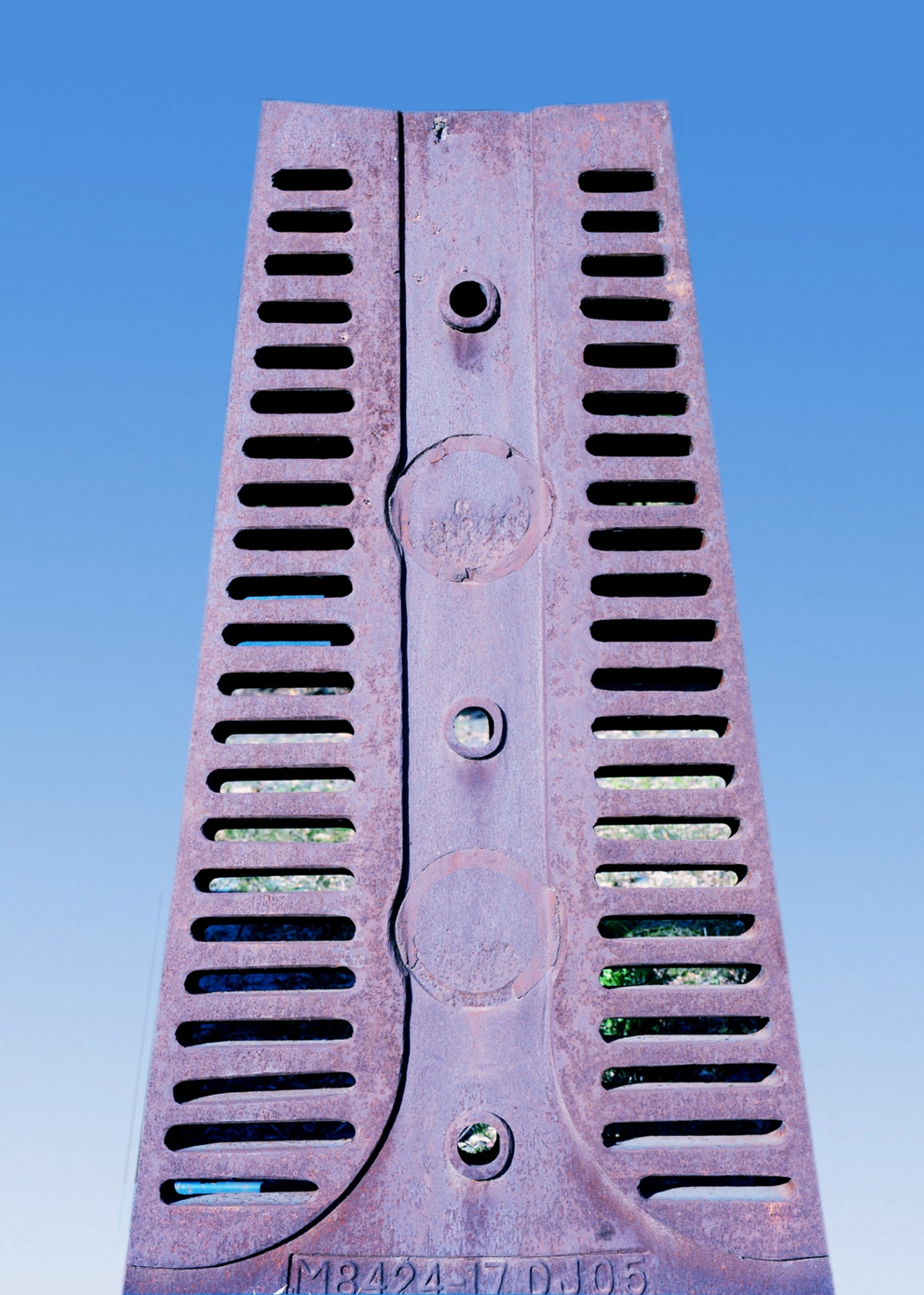

磨机排矿格子板（M8424-17DJ05）
Slotted discharge grate plate for ball / SAG mills, profiled for optimal pulp lifting and discharge.
磨机衬板

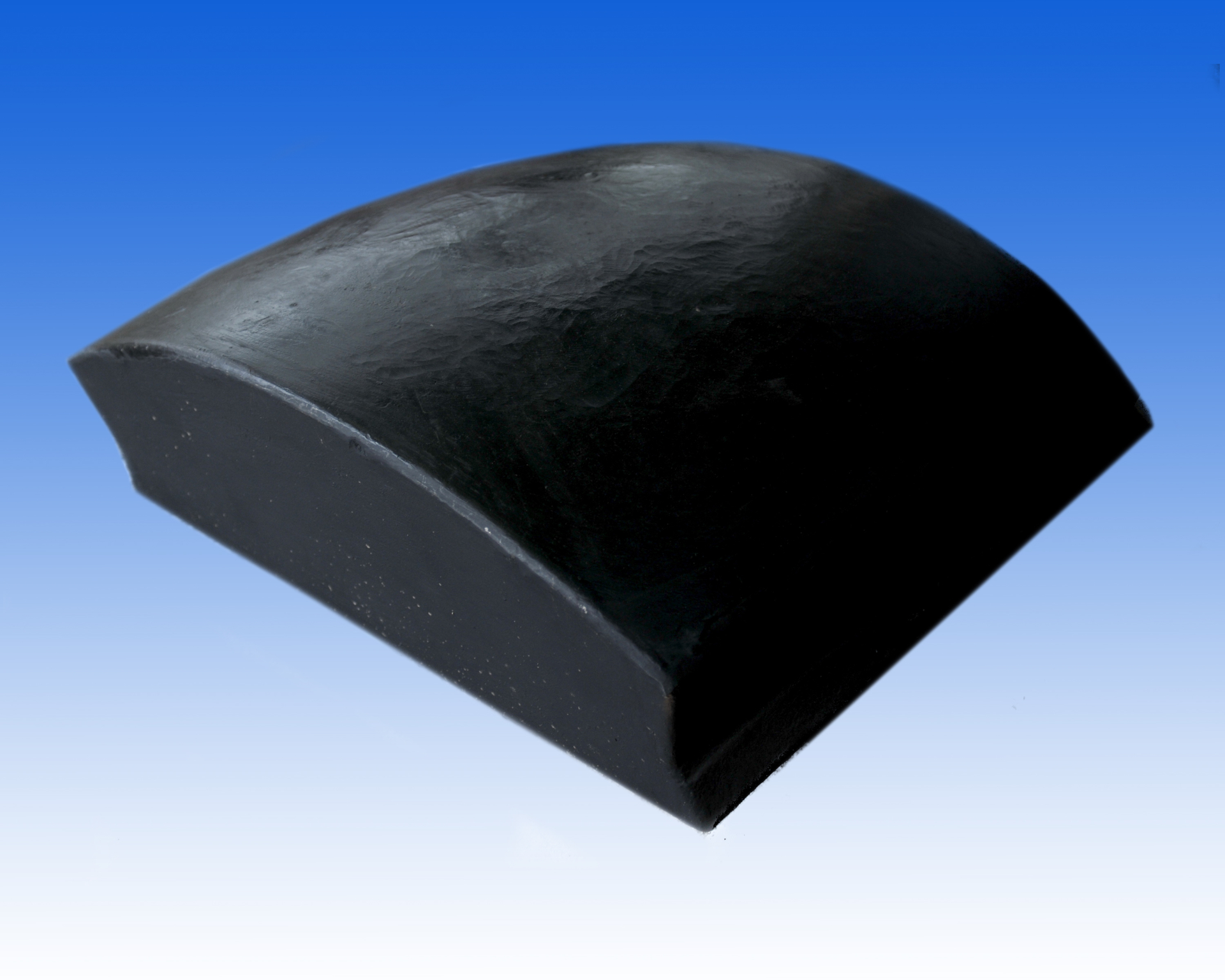

立磨衬板
Wear-resistant curved liner segment for vertical roller mills, cast in high-chrome alloy for extended service life.
磨机衬板

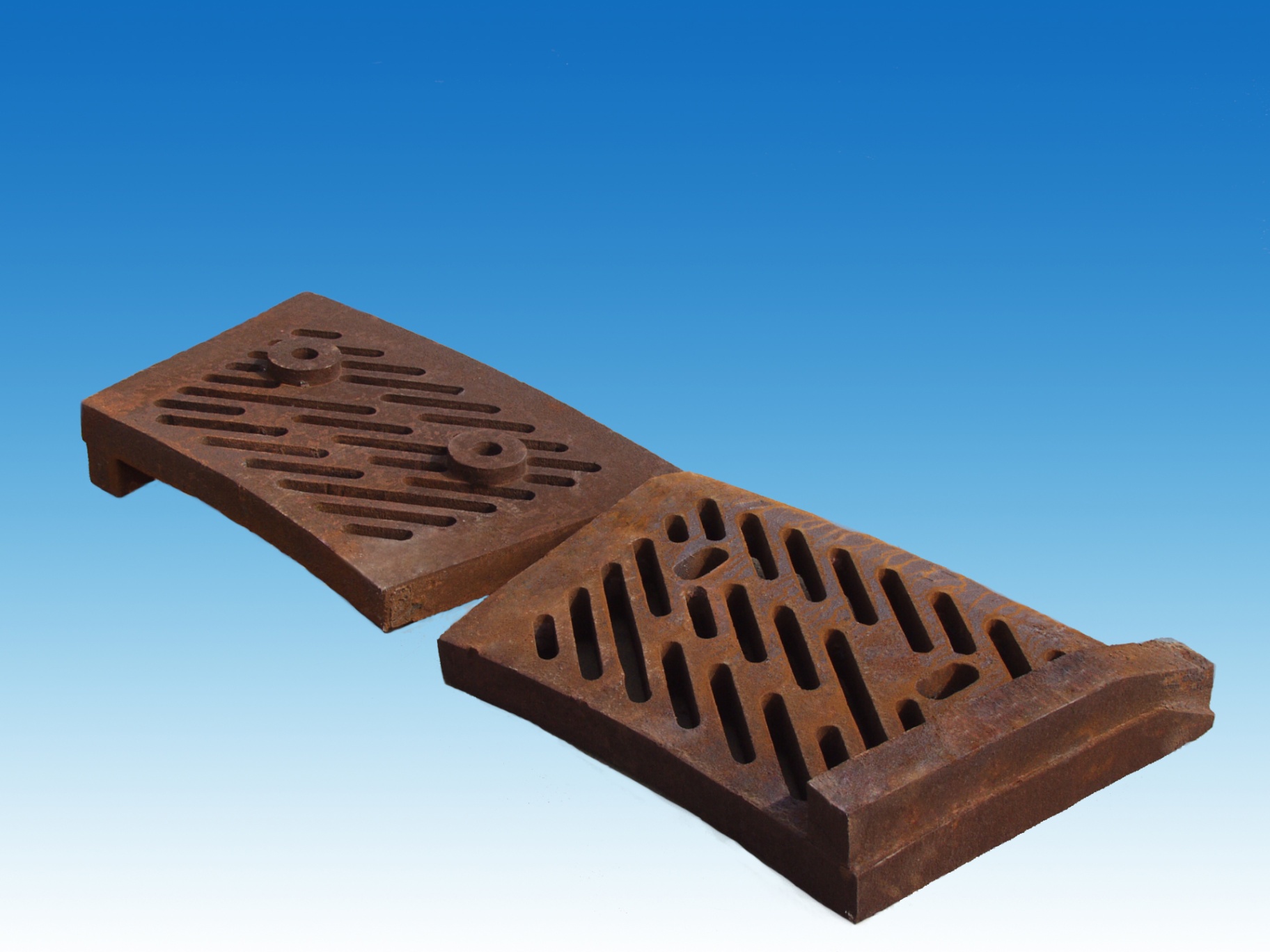

磨机端盖衬板
End liner plates with slotted discharge openings, designed for ore flow control and wear resistance in grinding mills.
磨机衬板

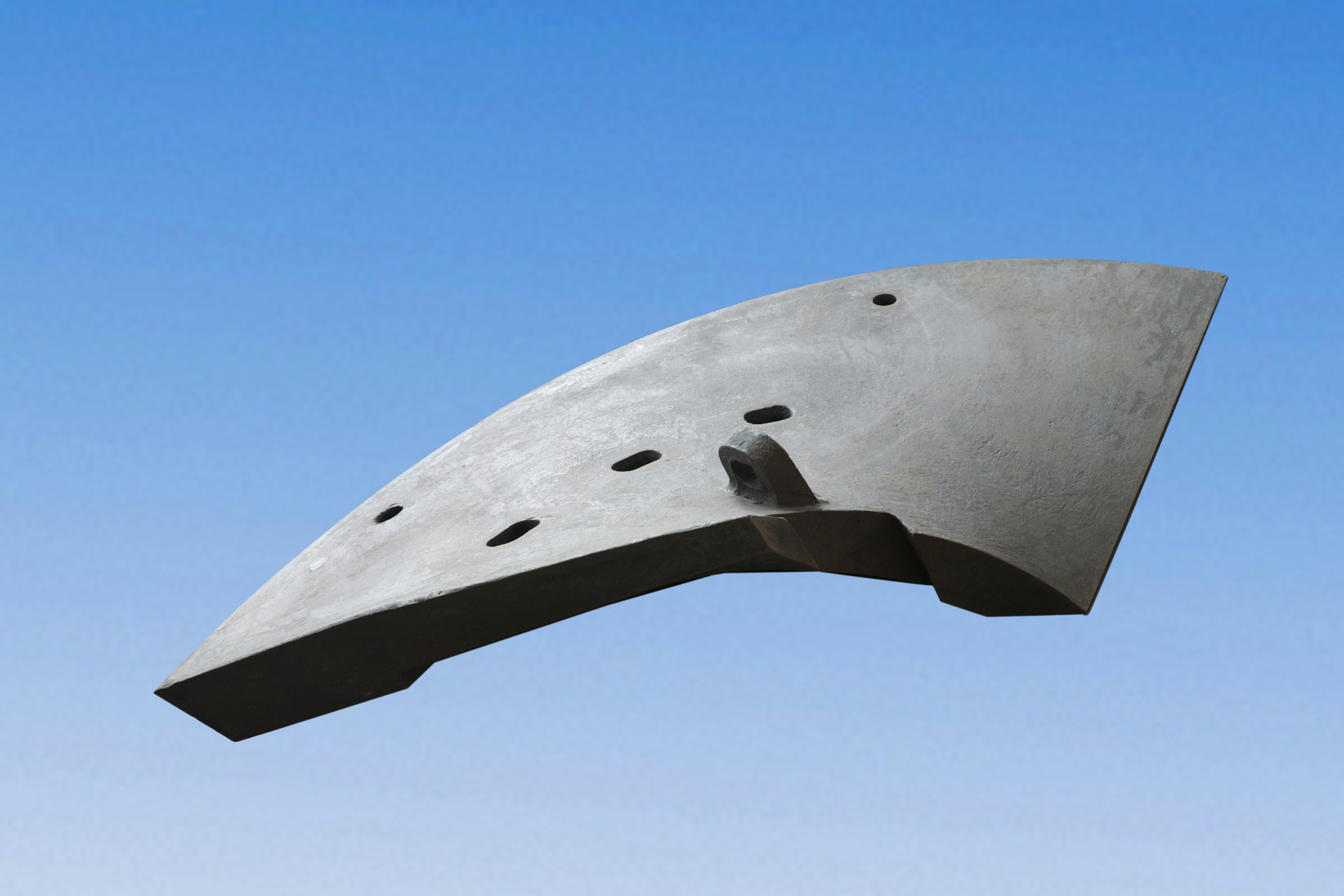

弧形磨机衬板
Curved liner casting for mill interior protection, featuring lifting lug and bolt holes for efficient installation.
磨机衬板

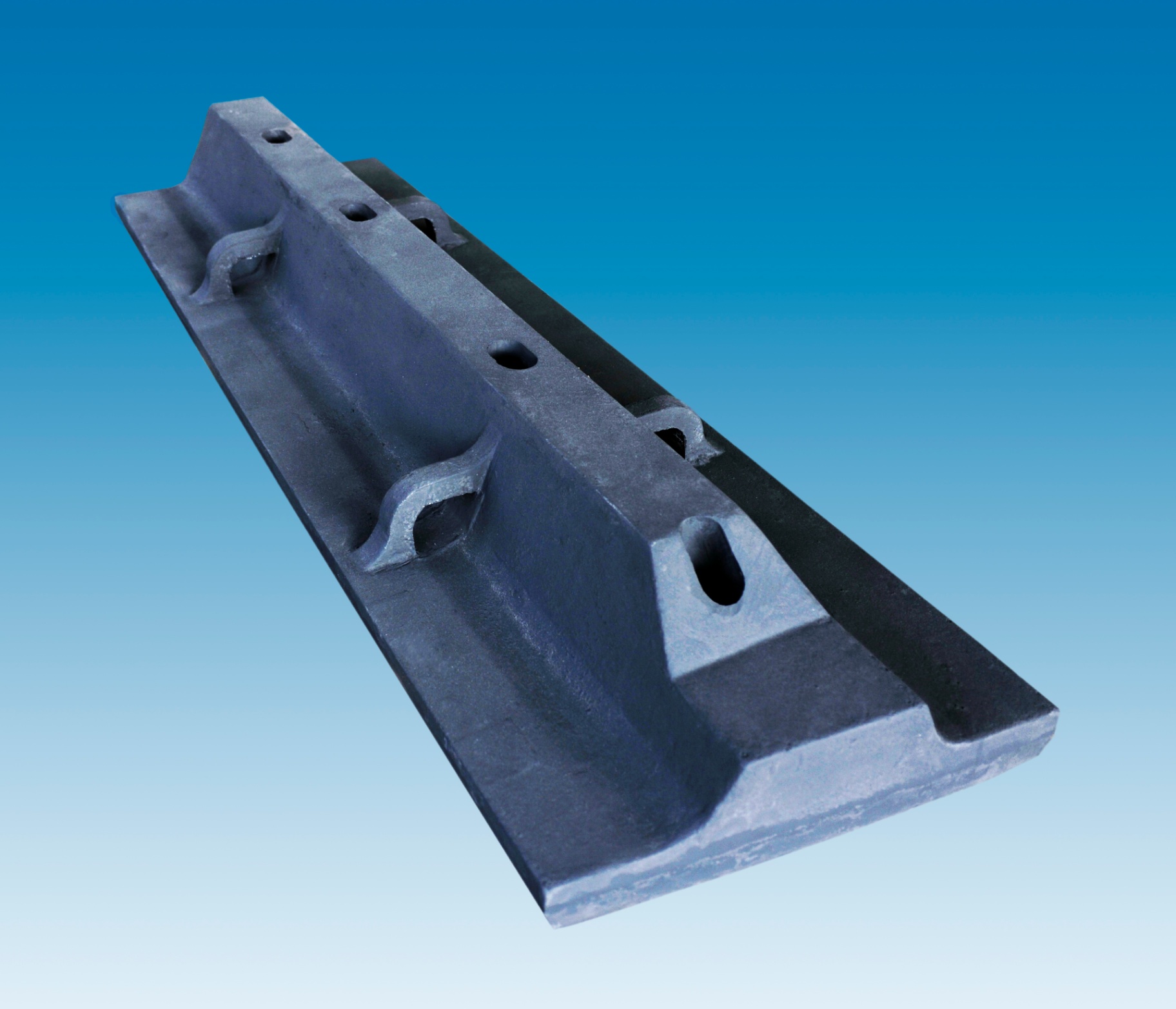

半自磨机筒体衬板 3472
Heavy-section SAG mill shell liner casting with integrated lifter profile and machined bolt seats for secure shell mounting.
磨机衬板

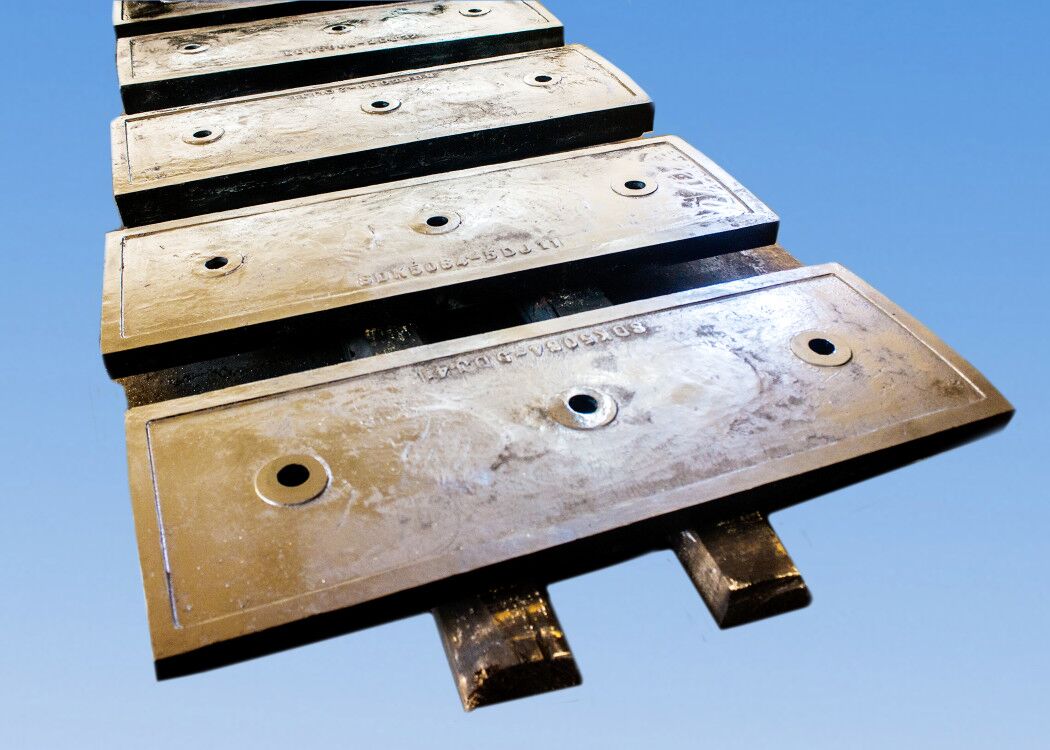

半自磨机提升条
Row of cast lifter bars for SAG mill shell, identified with cast-in part numbers for traceable installation.
磨机衬板

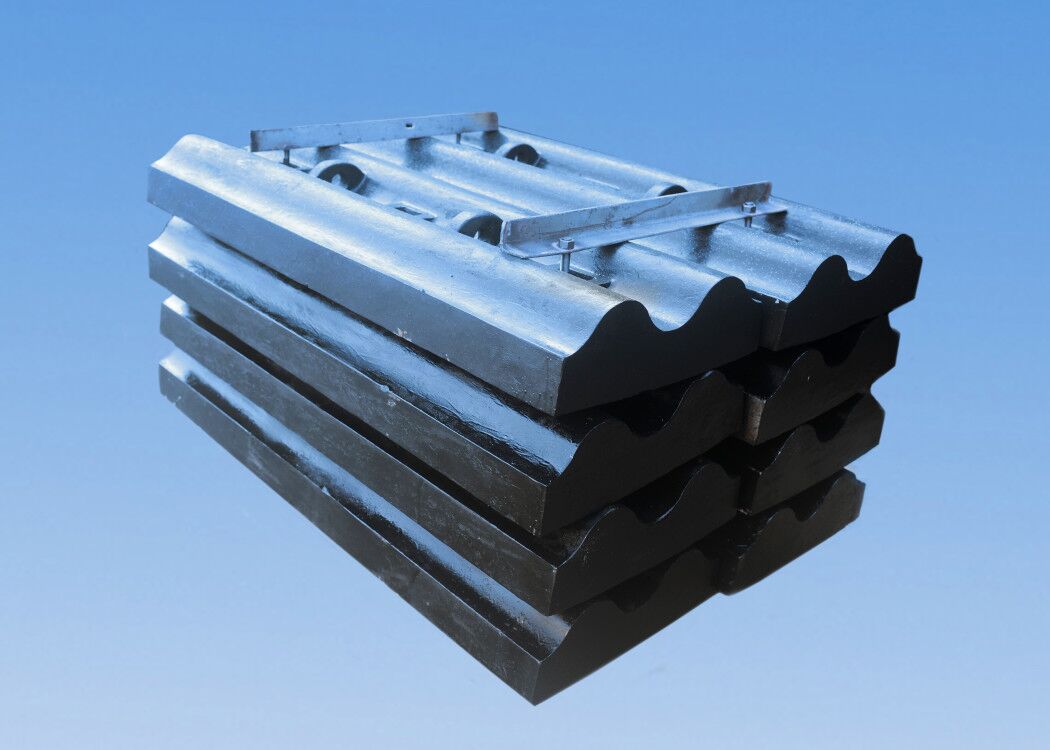

球磨机筒体衬板
Stacked ball mill shell plates with double-wave profile in ZGMn13Cr2 manganese steel, ready for shipment.
磨机衬板

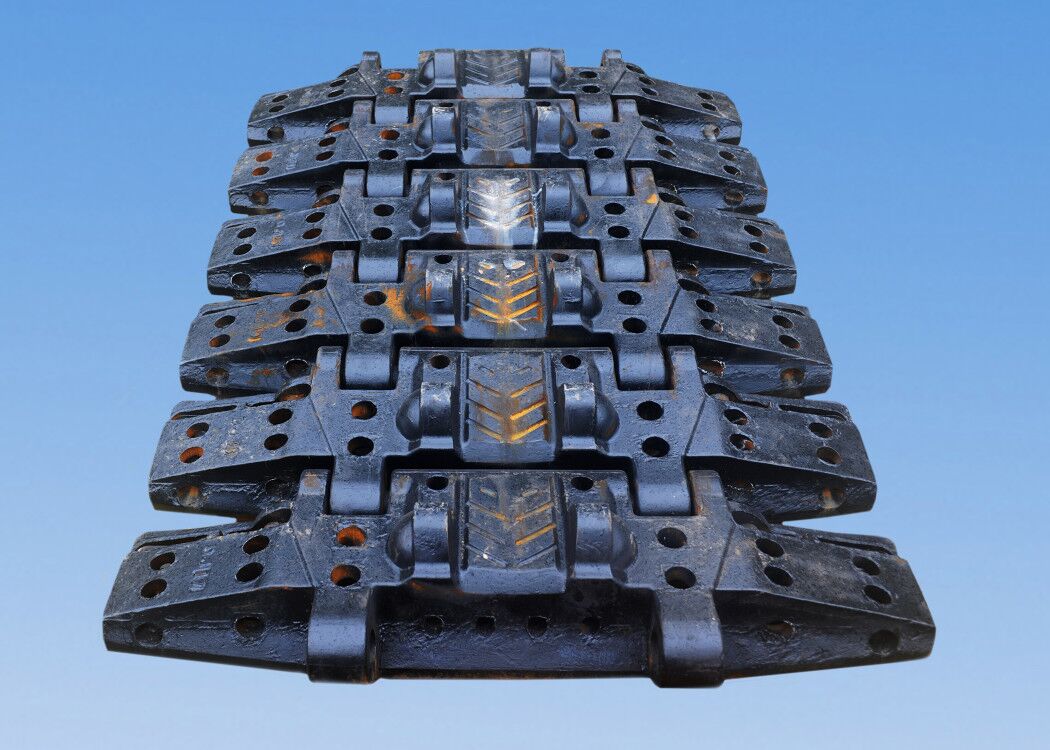

半自磨机排矿格子板
Discharge end grate plates with chevron lifter ribs, designed for high-throughput SAG and AG mill duty.
磨机衬板

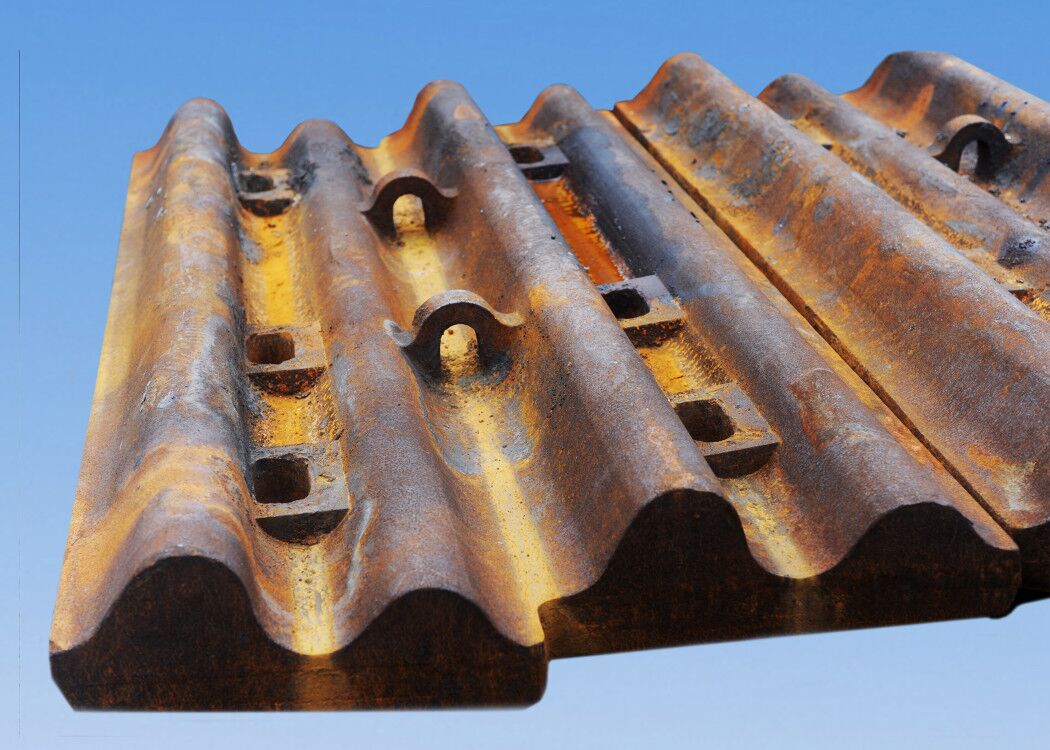

波纹磨机筒体衬板
Heavy corrugated shell liner casting providing aggressive lift and long wear life in primary grinding mills.
磨机衬板

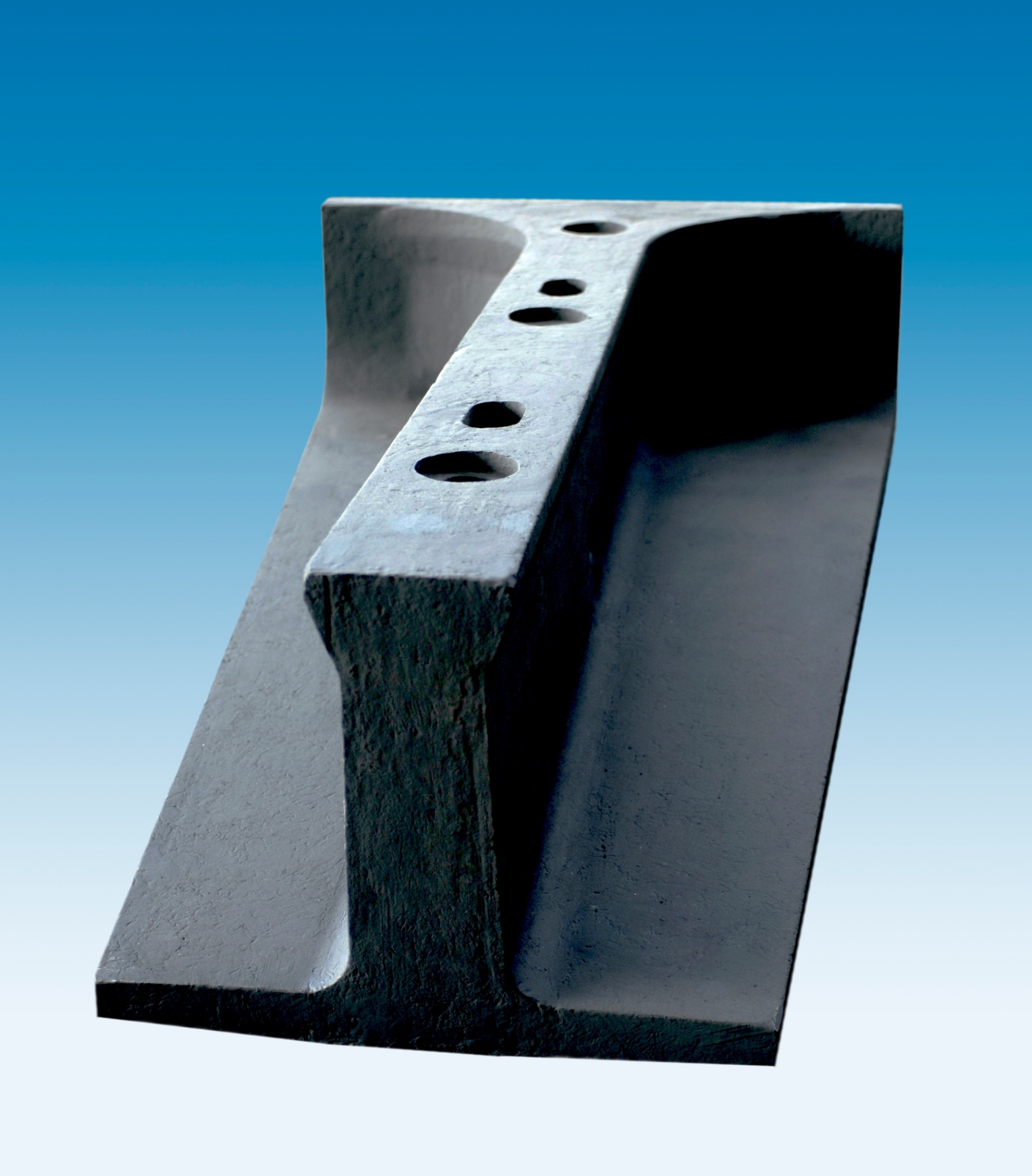

半自磨机提升条 — 单件
Single semi-autogenous mill lifter with machined bolt holes and high-section lifting face for aggressive media movement.
磨机衬板

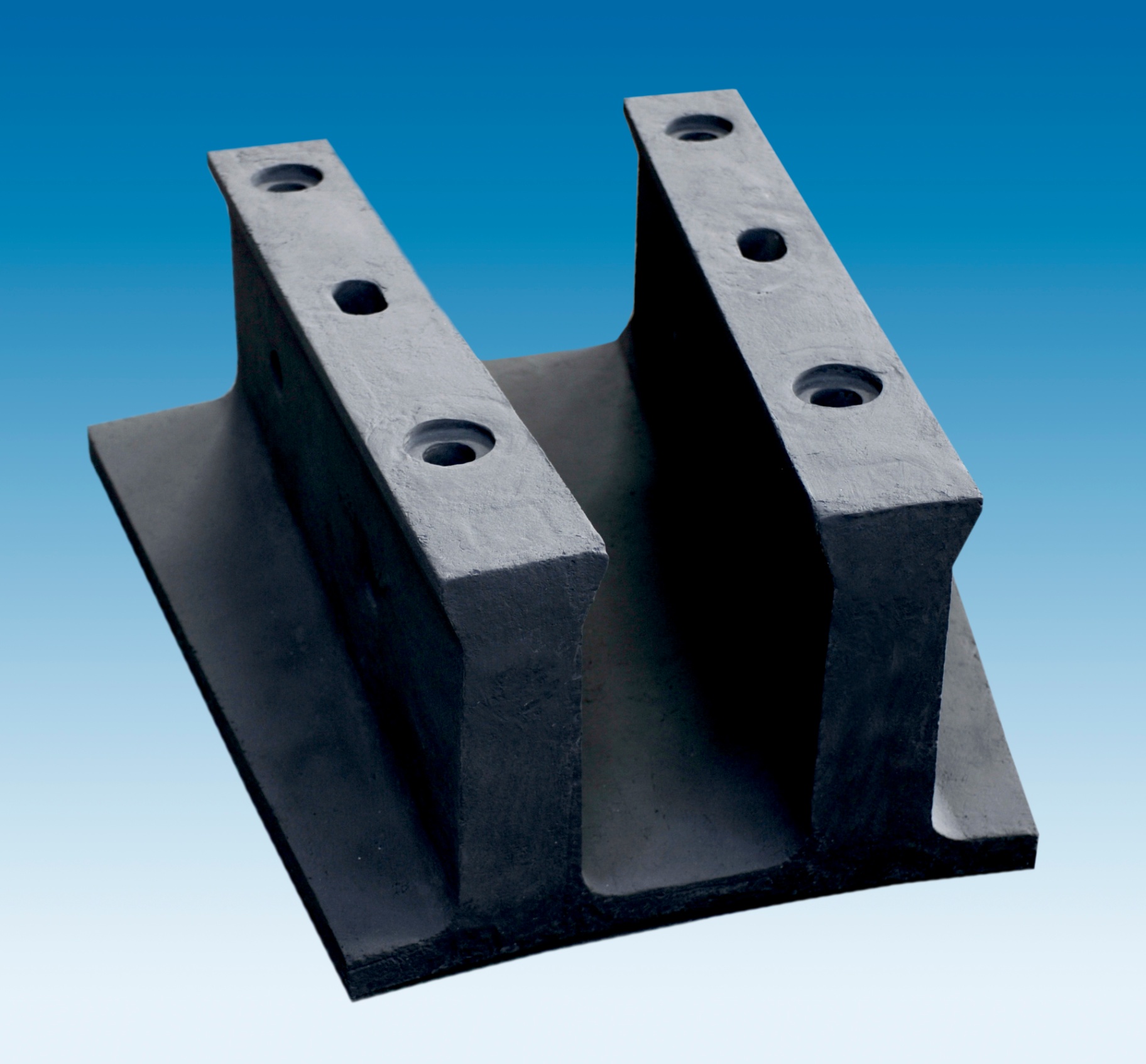

半自磨机提升条 — 成对
Matched pair of SAG mill lifters prepared for shell installation, showing bolt-hole pattern and wear profile geometry.
生产装备

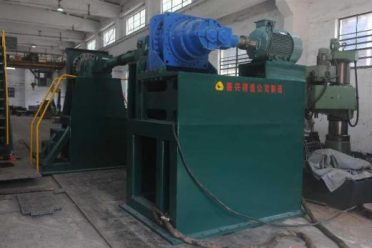

卷板机
Heavy-duty coil strip processing machine used in the workshop for forming and handling large metal sections and fabricated components.
生产装备

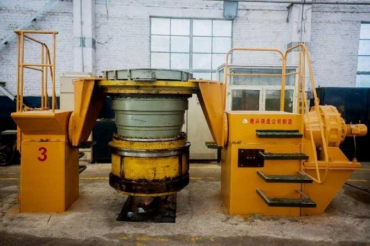

电轮电机翻转机
Wheel motor turnover machine for safely rotating and positioning heavy wheel motor assemblies during maintenance and manufacturing operations.
矿山设备配件

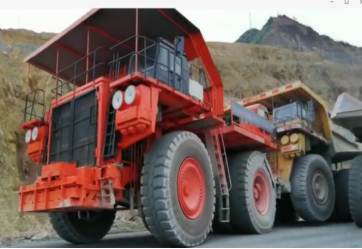

EH3500 电动轮矿用牵引车 — 现场作业
EH3500 electric-drive mine tractor project — heavy-duty open-pit haul tractor shown alongside a conventional rigid dump truck for scale.
矿山设备配件

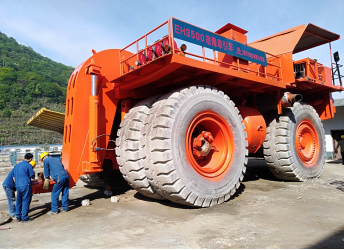

EH3500 电动轮矿用牵引车 — 后视图
Rear view of the EH3500 electric-drive mine tractor — massive drive axle and tires engineered for sustained heavy haulage on mine ramps.
矿山设备配件

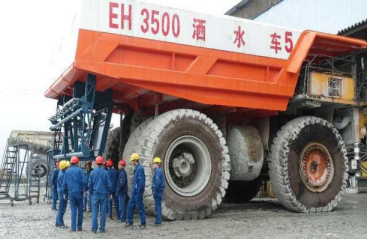

EH3500 电动轮矿用洒水车
EH3500 electric-drive mining water truck — converted from a 154-ton-class haul truck chassis for large-scale dust suppression in open-pit mines.
矿山设备配件

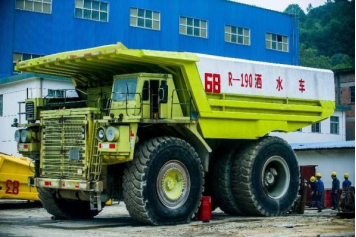

R-190 电动轮矿用洒水车
R-190 electric-drive water truck for mine haul roads — large-capacity tank and high-pressure spray system for effective dust control on open-pit benches.
矿山设备配件

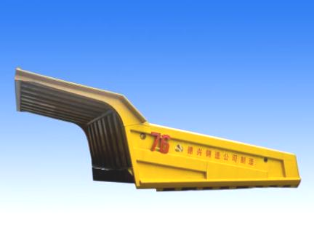

NTE240 电动轮矿用卡车车厢
Heavy-duty dump body for the NTE240 electric-drive mining haul truck — high-strength wear-resistant steel construction engineered for large open-pit operations.
应用业绩

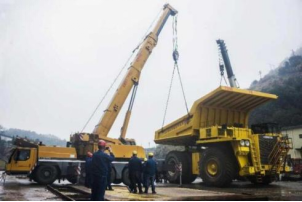

矿用卡车车厢现场安装
On-site installation of an electric-drive haul truck body — lifted into position with mobile cranes, ready for commissioning in the mine.
矿山设备配件

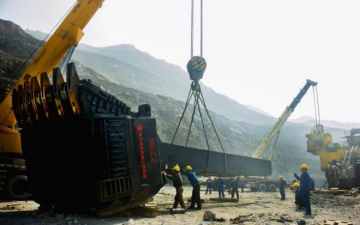

2300XPC 电铲铲斗
Cast dipper (bucket) for the P&H 2300XPC class electric mining shovel — engineered for maximum payload and durability in hard-rock loading.
矿山设备配件

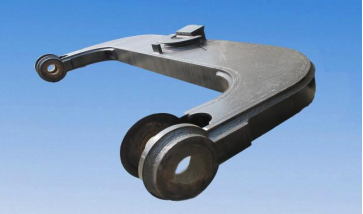

2300XP 电铲均衡梁（提升梁）
Forged / cast equalizer (lifting beam) for the 2300XP electric mining shovel — transmits hoist rope loads to the dipper with high fatigue strength.
矿山设备配件

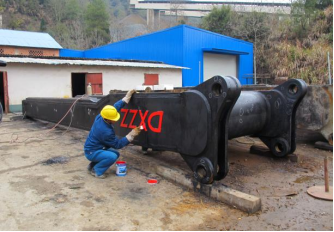

WK-4 / 2300XP 电铲斗柄
Dipper handle (stick) for WK-4 and 2300XP class electric mining shovels — heavy fabricated / cast structure engineered for crowd and hoist duty cycles.
应用业绩

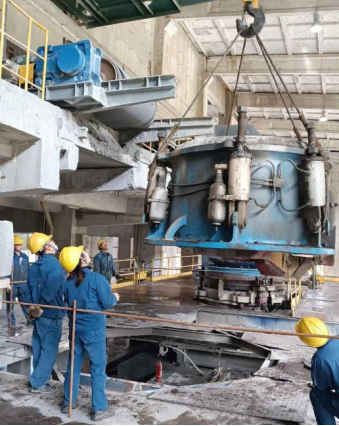

新型复合衬板 — 圆锥破碎机应用
On-site installation of new wear-resistant composite liners on cone crushers and similar comminution equipment — proven longer service life under heavy duty.
选矿装备

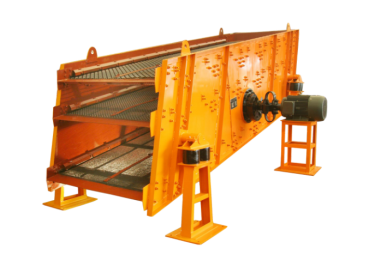

2YAC2460 重型振动筛
2YAC2460 ultra heavy-duty double-deck circular-motion vibrating screen — engineered for high-tonnage screening of mined ore and aggregates.
选矿装备

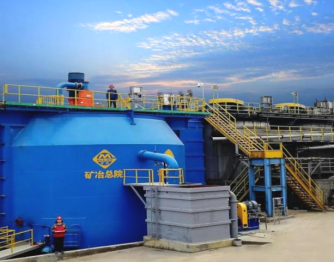

全球首台 680m³ 超大型浮选机
The world's first 680 m³ ultra-large flotation machine — a landmark achievement in mineral processing equipment, jointly engineered with BGRIMM.
选矿装备

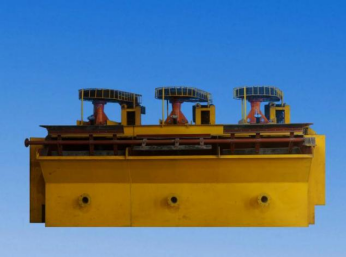

浮选机系列
Full series of mechanically agitated flotation machines covering small pilot cells to large-volume industrial tanks for diverse mineral separation duties.
矿山设备配件

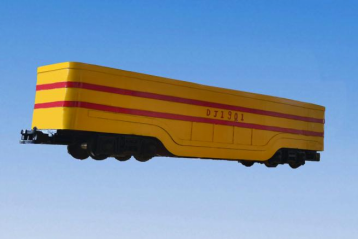

10m³ 矿车
10-cubic-meter underground mine car for ore and waste haulage — robust welded structure and bogies engineered for heavy-duty rail transport in mines.
矿山设备配件

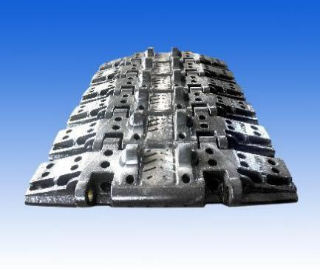

电铲履带板
High-manganese steel track pad (crawler shoe) for mining electric shovels — engineered for extreme impact and abrasion in open-pit operation.
矿山设备配件

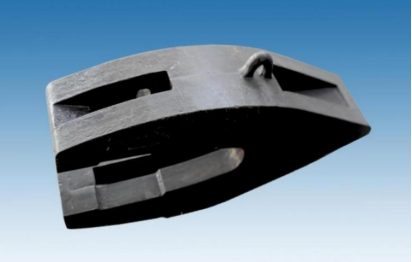

电铲斗齿
Cast bucket tooth for electric mining shovels — optimized geometry and alloy chemistry for superior penetration and long service life in hard rock.
应用业绩

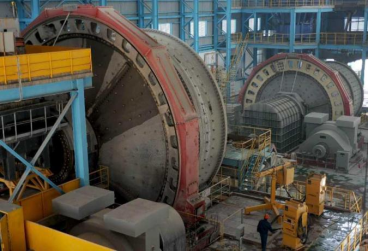

德兴铜矿大山选矿厂半自磨机现场
On-site reference at Dexing Copper Mine's Dashan concentrator: large semi-autogenous (SAG) mills equipped with our liner solutions in continuous production.
应用业绩

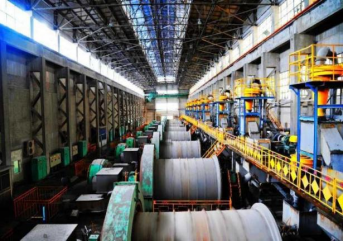

德兴铜矿泗洲选矿厂球磨机现场
On-site reference at Dexing Copper Mine's Sizhou concentrator: rows of large ball mills running with our liner and grinding media solutions.
破碎机易损件

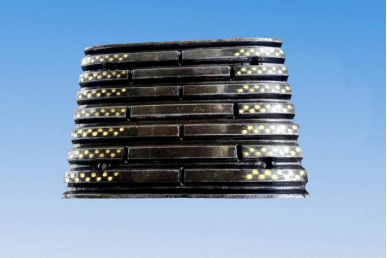

复合齿板
Composite tooth plate combining a tough steel matrix with hard ceramic / carbide inserts — superior impact and abrasion resistance for crushers.
生产线

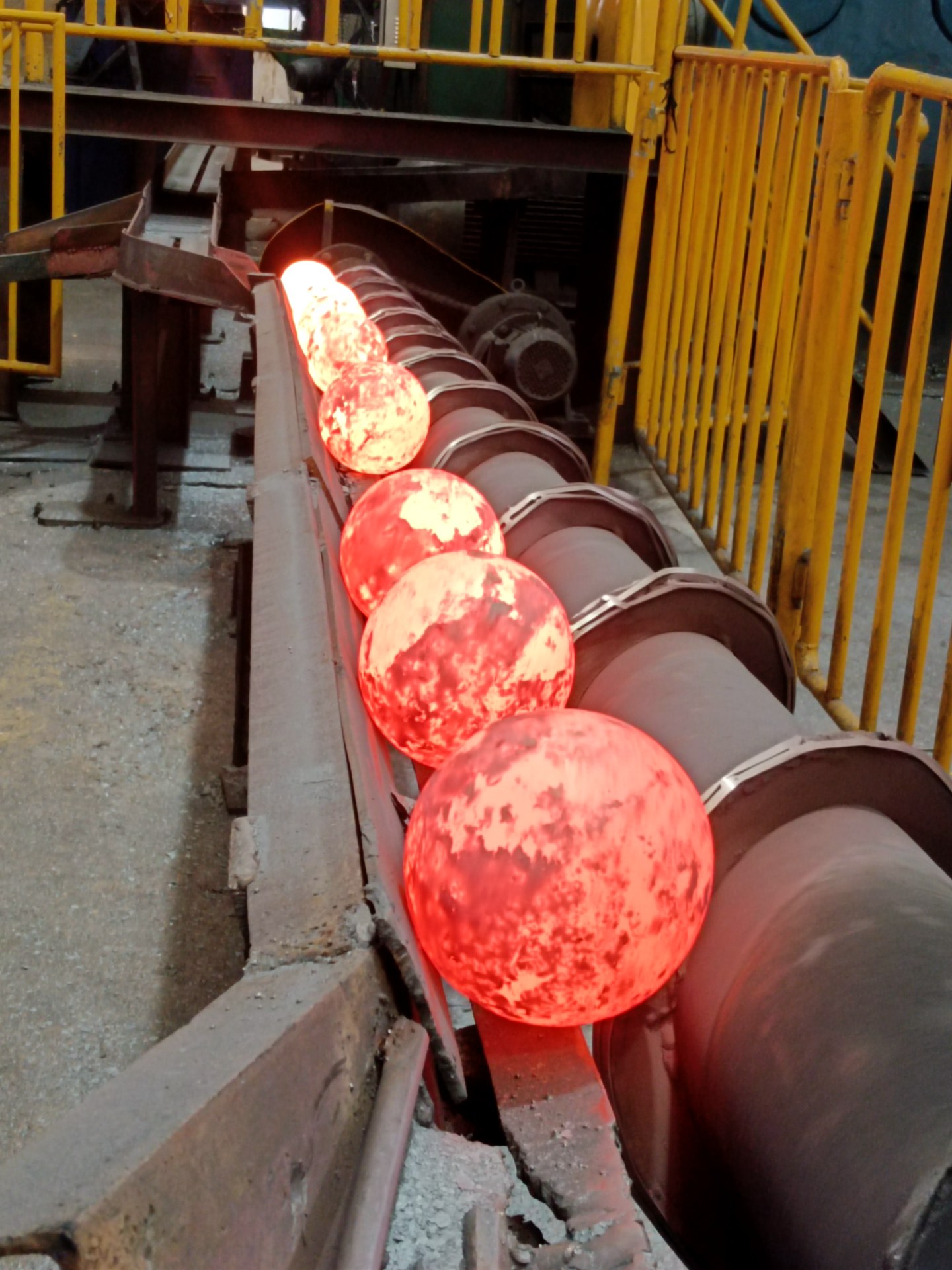

钢球铸造车间
Dedicated grinding ball foundry workshop — the production base where alloy steel and high-chrome grinding media are cast, heat treated and finished.
质量检测

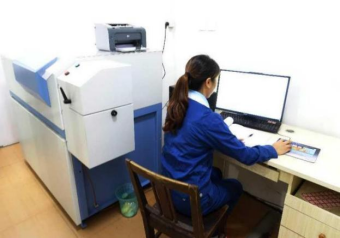

光谱分析仪（化验室）
Optical emission spectrometer used for in-house chemical composition analysis, ensuring every heat meets target alloy specifications before pouring.
质量检测
金相图像分析
Metallographic microscope station for examining microstructure, grain size and phase distribution — verifying heat-treatment results and wear performance.
生产线

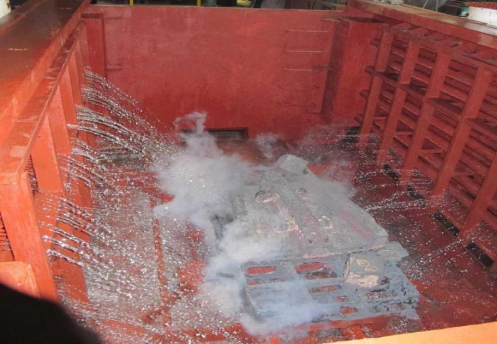

水雾风冷热处理工艺
Water-mist air heat treatment process for wear parts and grinding media, combining rapid cooling with controlled thermal uniformity.
生产线

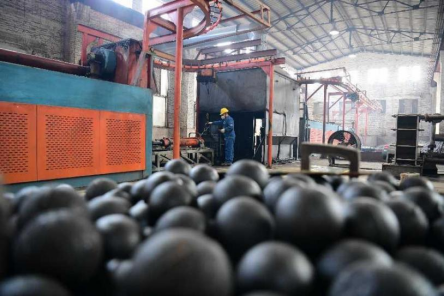

高铬球热处理工艺
Dedicated heat treatment process for high-chrome grinding balls, ensuring stable hardness, toughness and wear resistance in bulk production.
生产线

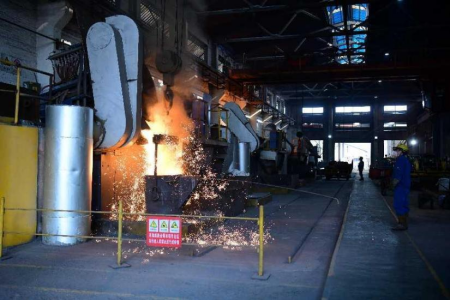

中频感应炉熔炼
Medium-frequency induction furnace melting process — clean, efficient melting of alloy steel and high-chrome iron for premium castings.
生产线

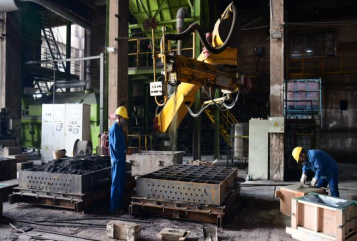

铁模覆砂造型工艺
Iron-mold sand-coating (铁模覆砂) molding station — combines metal mold rigidity with a thin resin sand layer for high-precision, high-density castings.
生产线

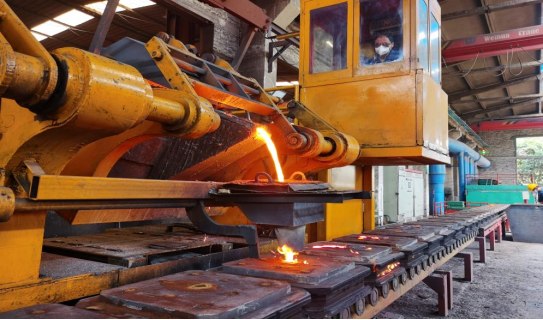

钢球机械化铁模覆砂铸造生产线
Automated iron-mold sand-coating (铁模覆砂) production line for wear-resistant cast grinding balls — molten metal pouring station feeding a continuous mold conveyor.
生产线

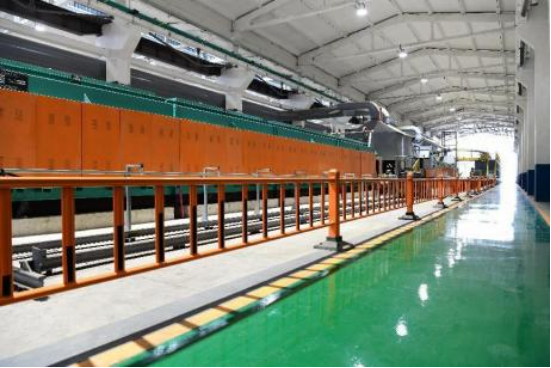

高铬球自动化热处理生产线
Fully automated heat treatment line for high-chrome grinding balls, delivering consistent hardness and microstructure at high throughput.
生产线

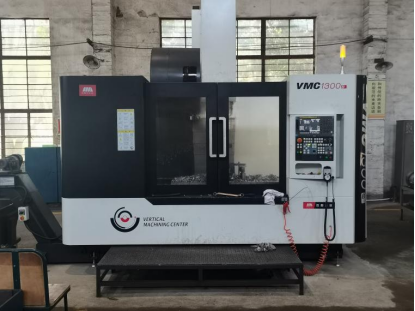

VMC-1300 系列立式加工中心
VMC-1300 vertical CNC machining center used for precision machining of mill liners, crusher parts and custom castings.
矿山辅助设备

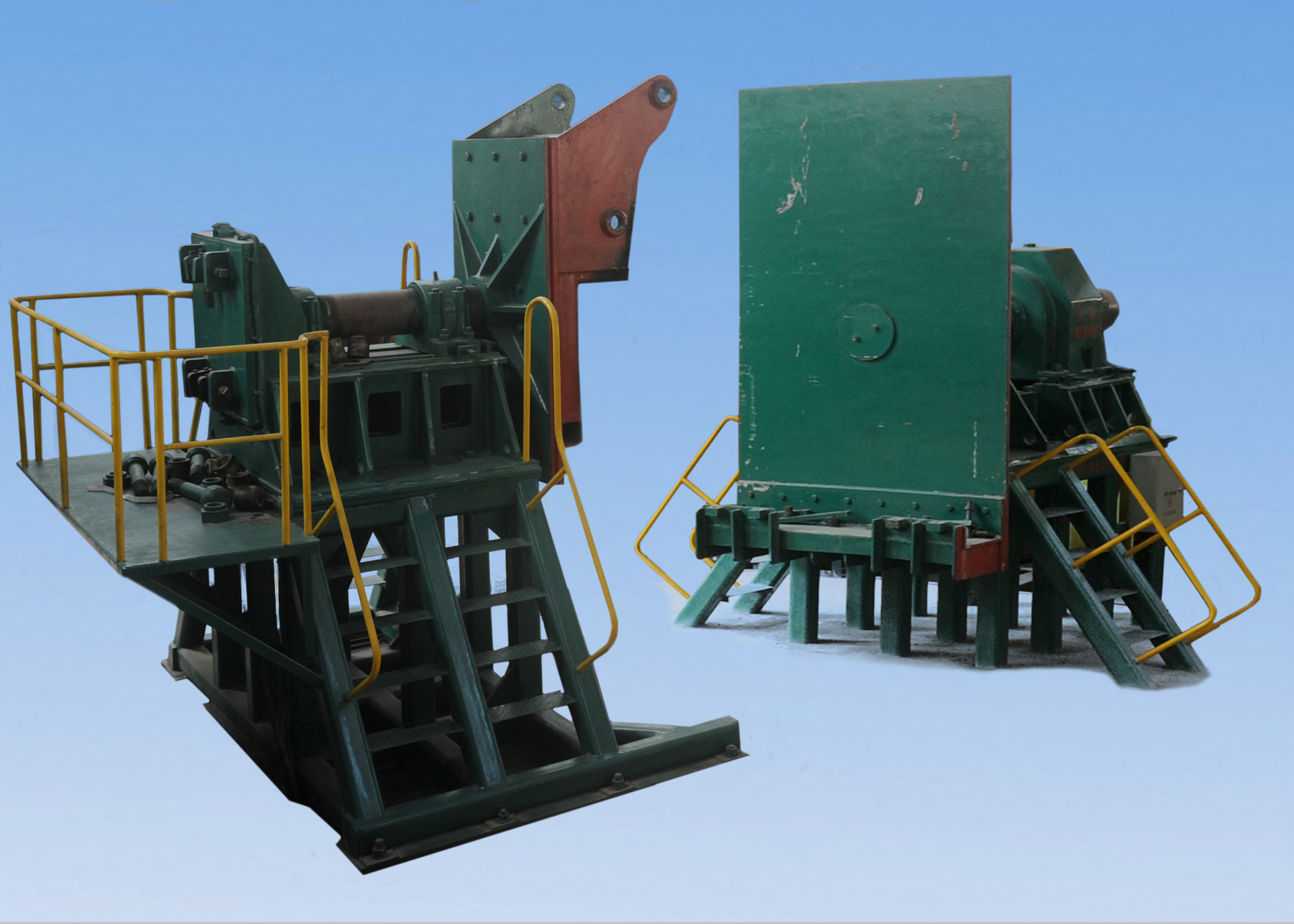

通用电动轮主梁翻转机
Universal turnover machine for electric drive haul-truck main beams, used during fabrication, welding and repair of large mining trucks.
工业部件

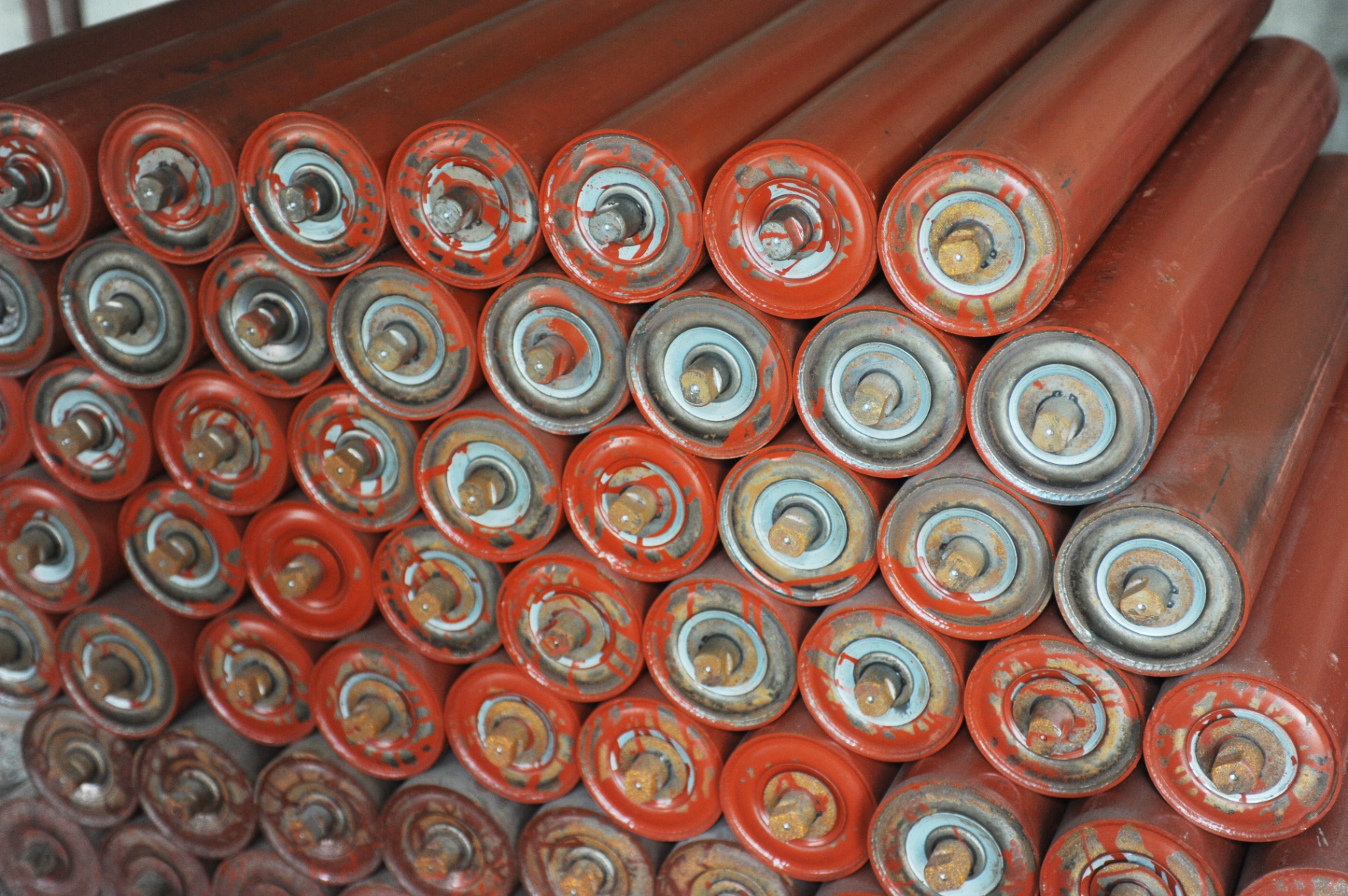

皮带输送机托辊
Sealed-bearing steel idler rollers (托辊) for heavy-duty mine and bulk-material belt conveyors.
矿山辅助设备

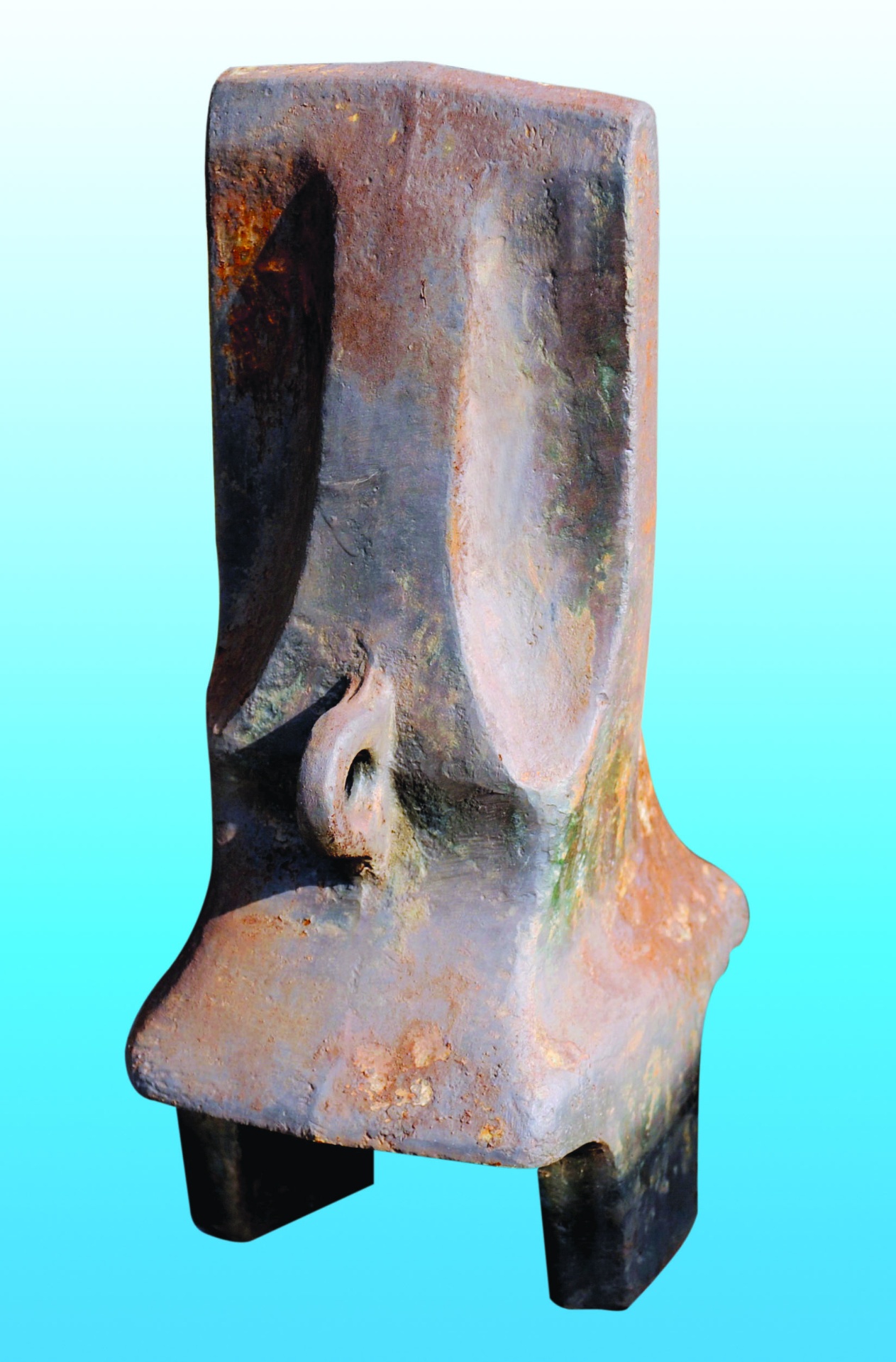

铸造挖掘机齿尖
High-impact cast excavator bucket tooth tip for shovels and front-end loaders in hard-rock mining applications.
紧固件

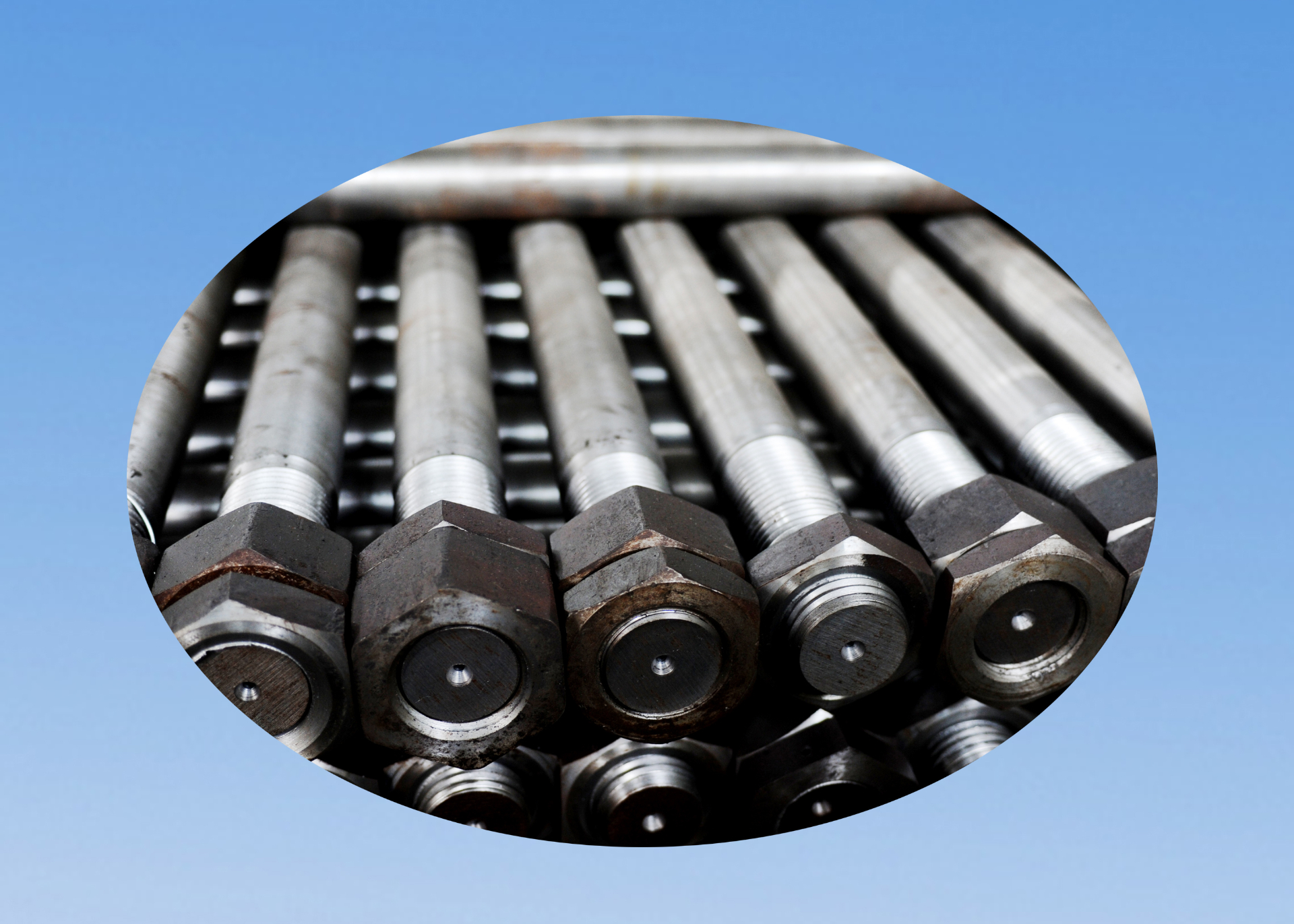

精密双头螺柱
Machined heavy-duty stud bolts for mill shell, structural fastening and high-load mining equipment assemblies.
矿山辅助设备

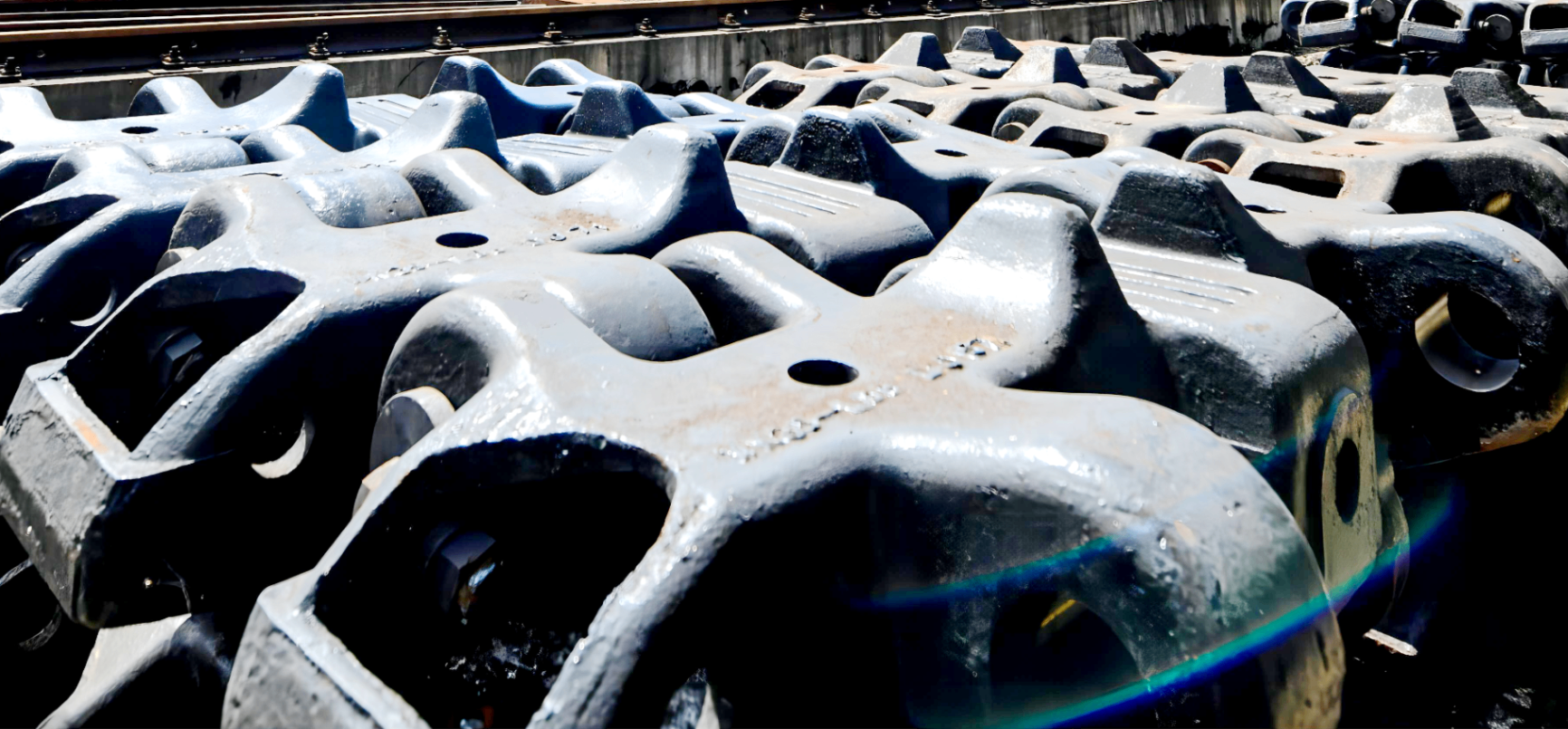

履带板
Cast crawler track shoes for mining shovels and tracked heavy equipment, built for impact and abrasion resistance.
破碎机易损件

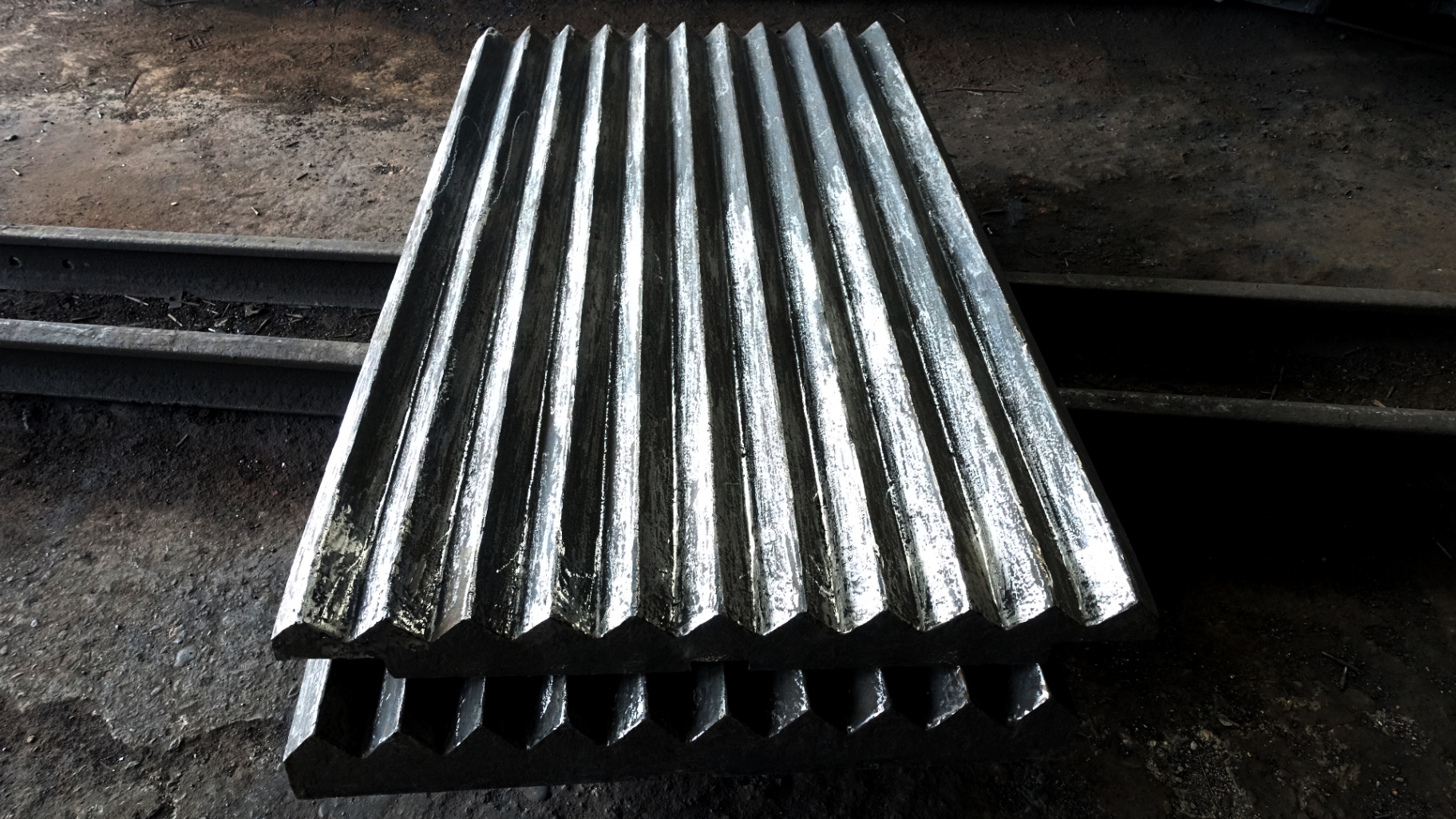

高锰钢破碎机齿板
High-manganese toothed crusher plate engineered for primary crushing and long wear life in hard-rock duty.
矿浆泵零件

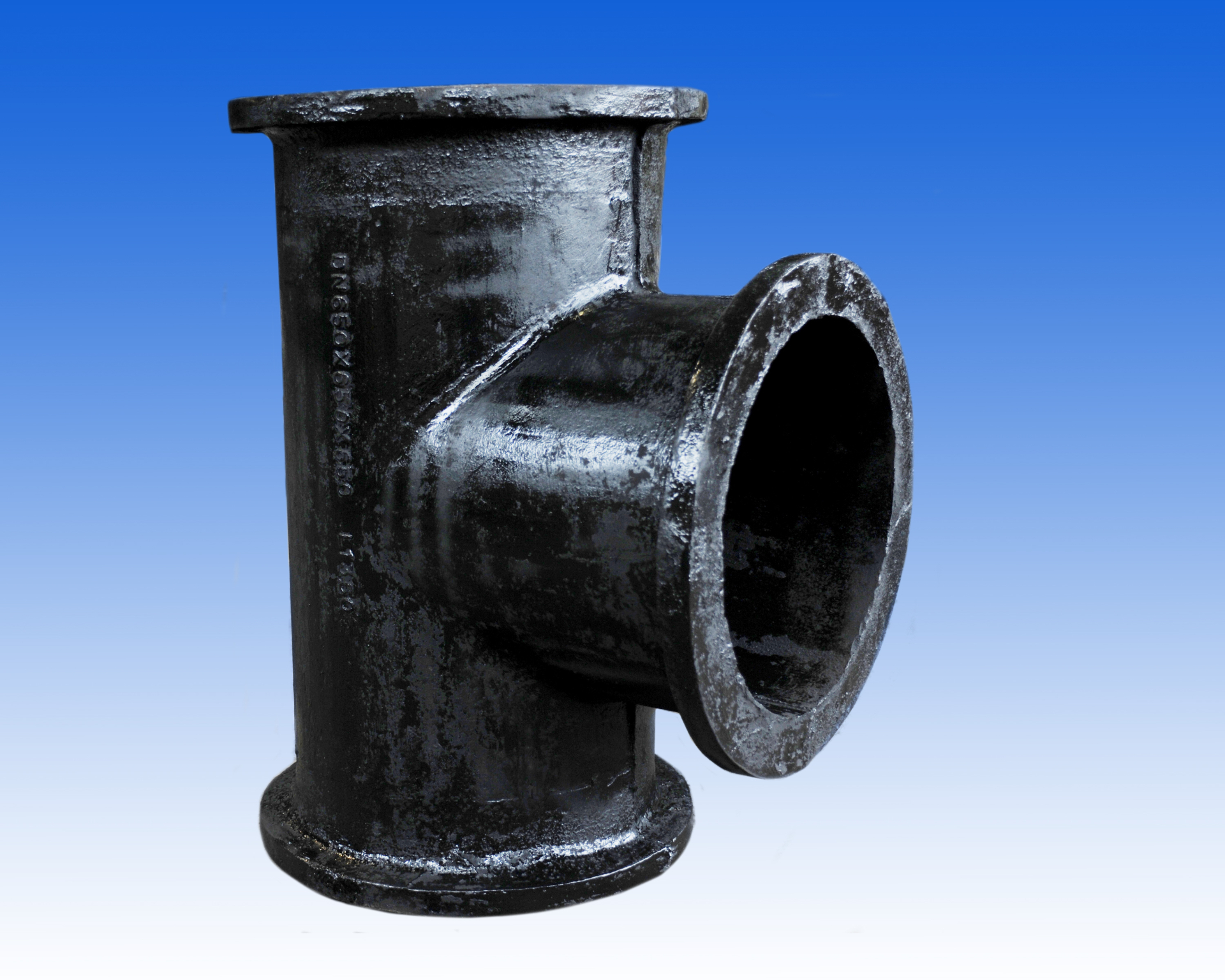

耐酸铸造三通管件
Corrosion-resistant cast tee fitting for chemical process lines, slurry transfer and aggressive media service.
破碎机易损件

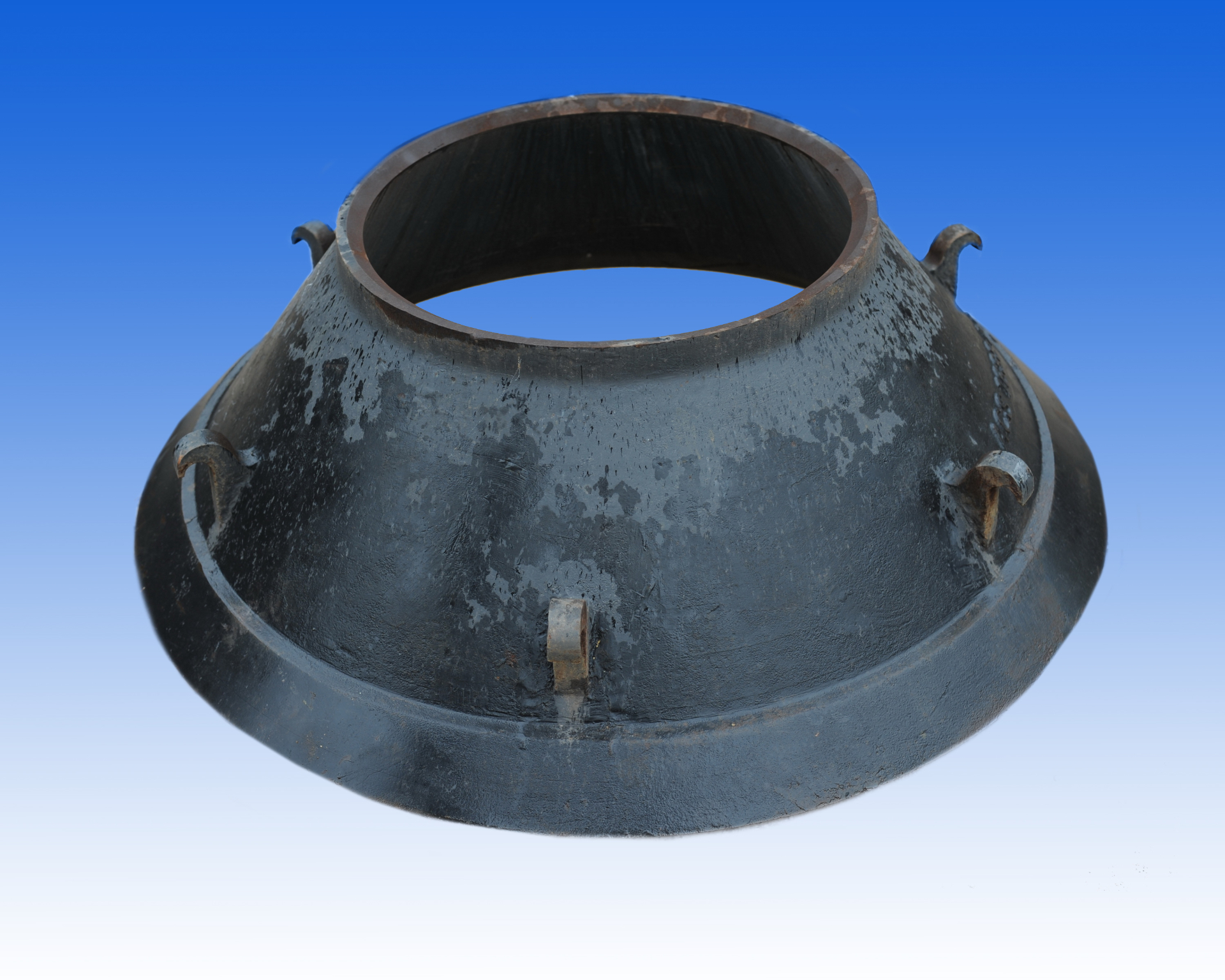

圆锥破碎机轧臼壁
Heavy cone crusher bowl liner / concave section cast for high-compression crushing chambers and long campaign life.
矿浆泵零件

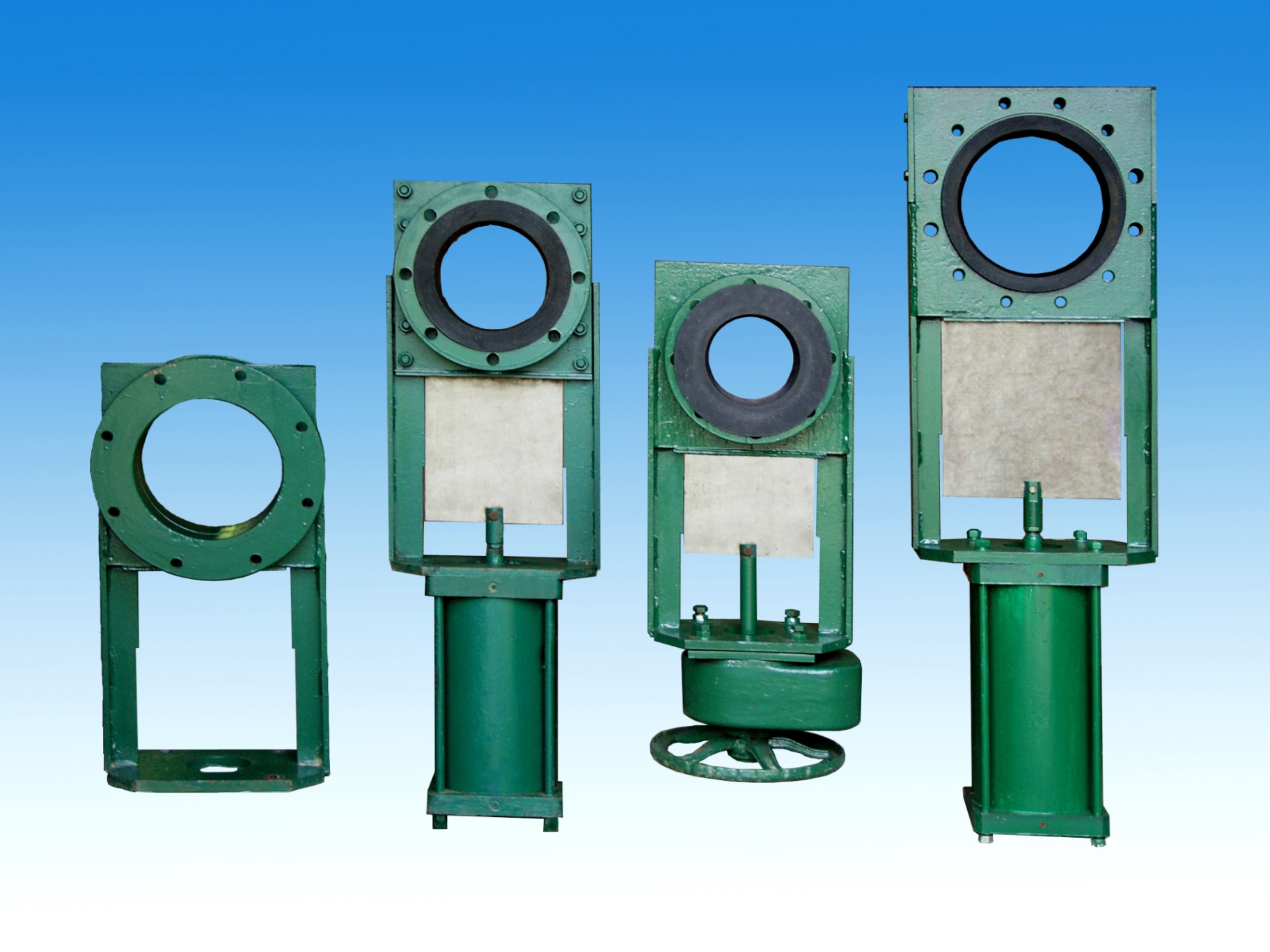

气动矿浆刀闸阀
Pneumatically actuated slurry gate valves for abrasive pipelines, available in multiple bore sizes.
紧固件

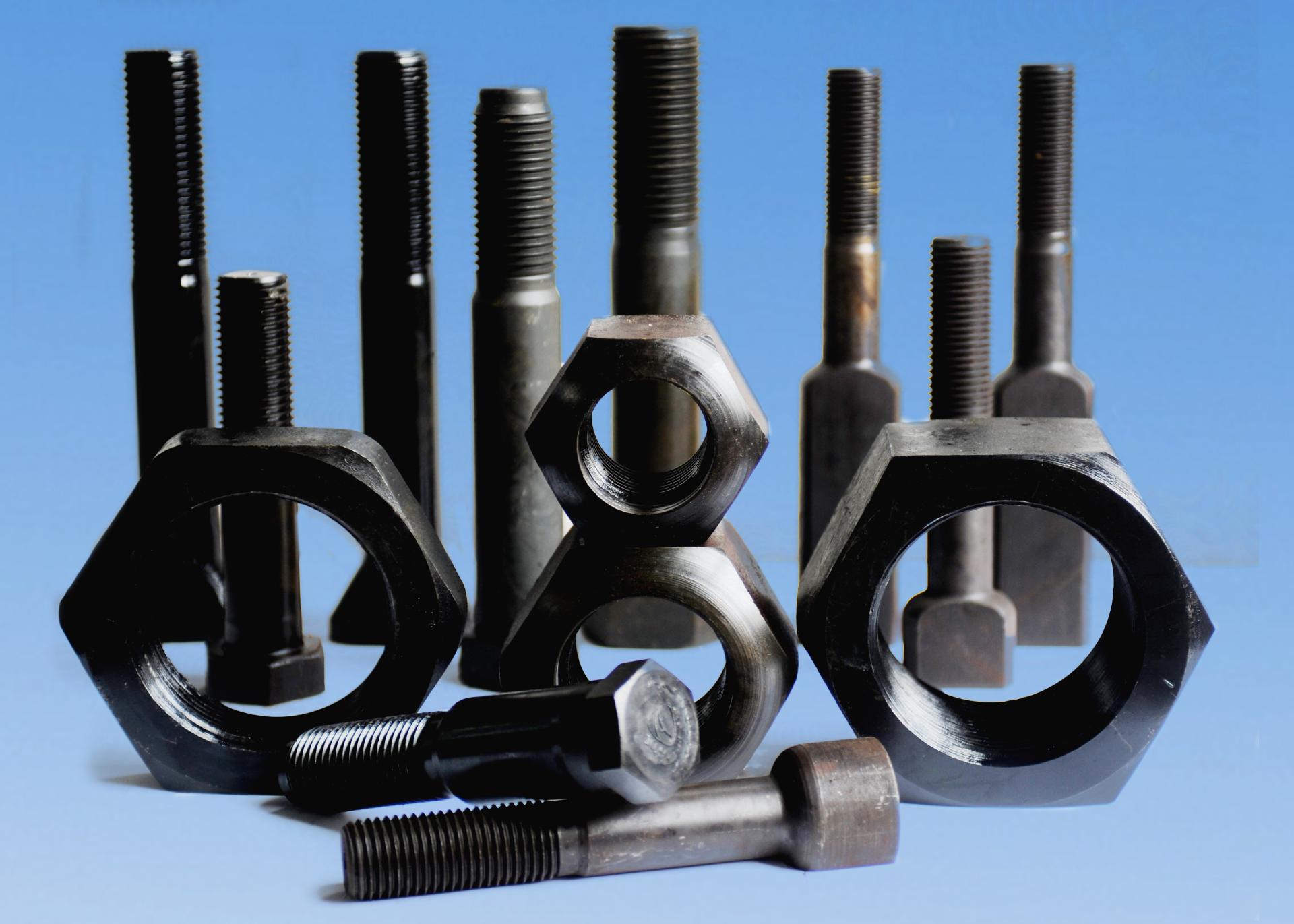

磨机螺栓及六角螺母
Large-format mill liner bolts and matching hex nuts, forged and machined for secure installation under vibration loads.
大型铸件

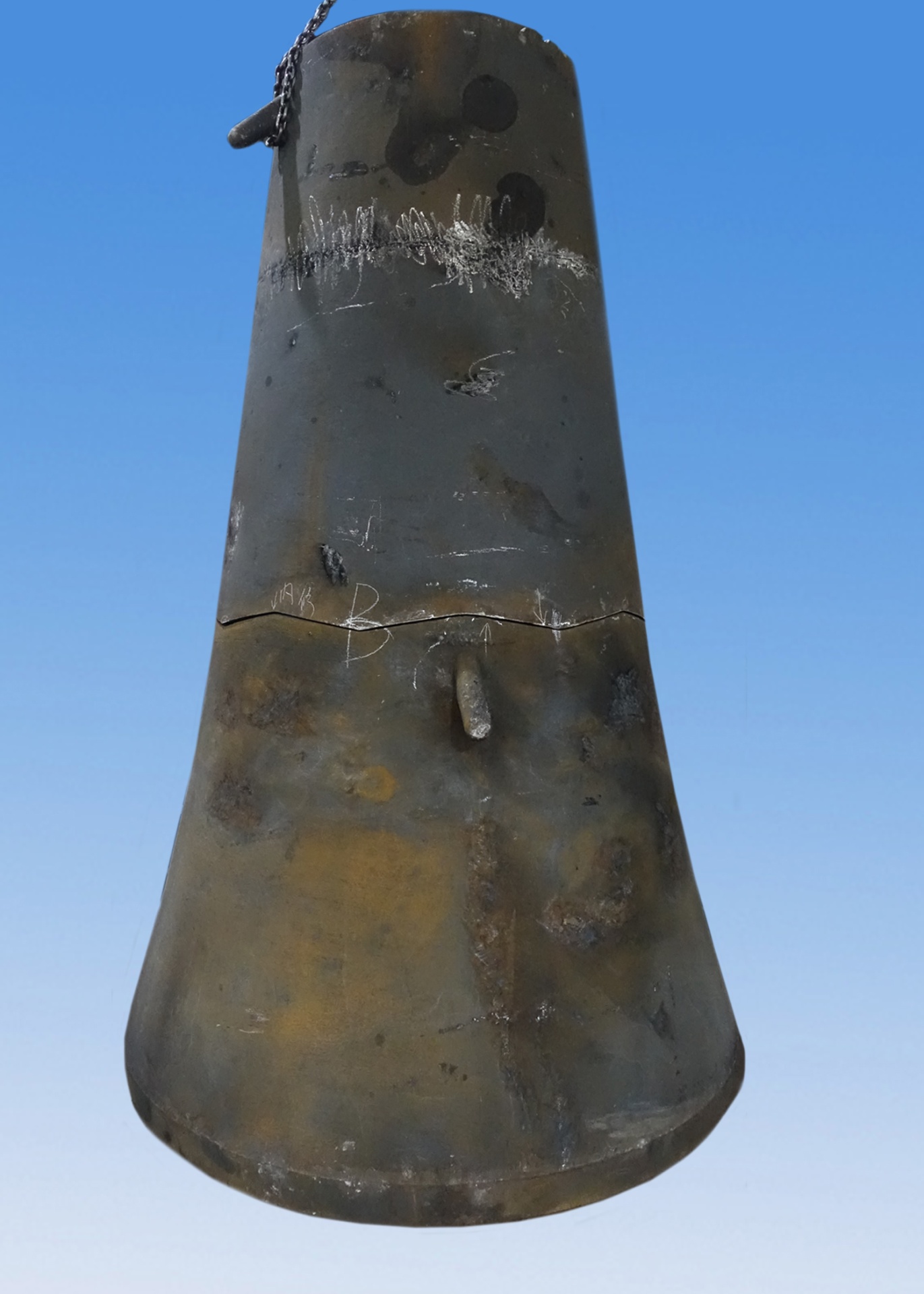

锻造球头
Large forged conical ball head component for heavy mechanical assemblies and custom equipment fabrication.
大型铸件

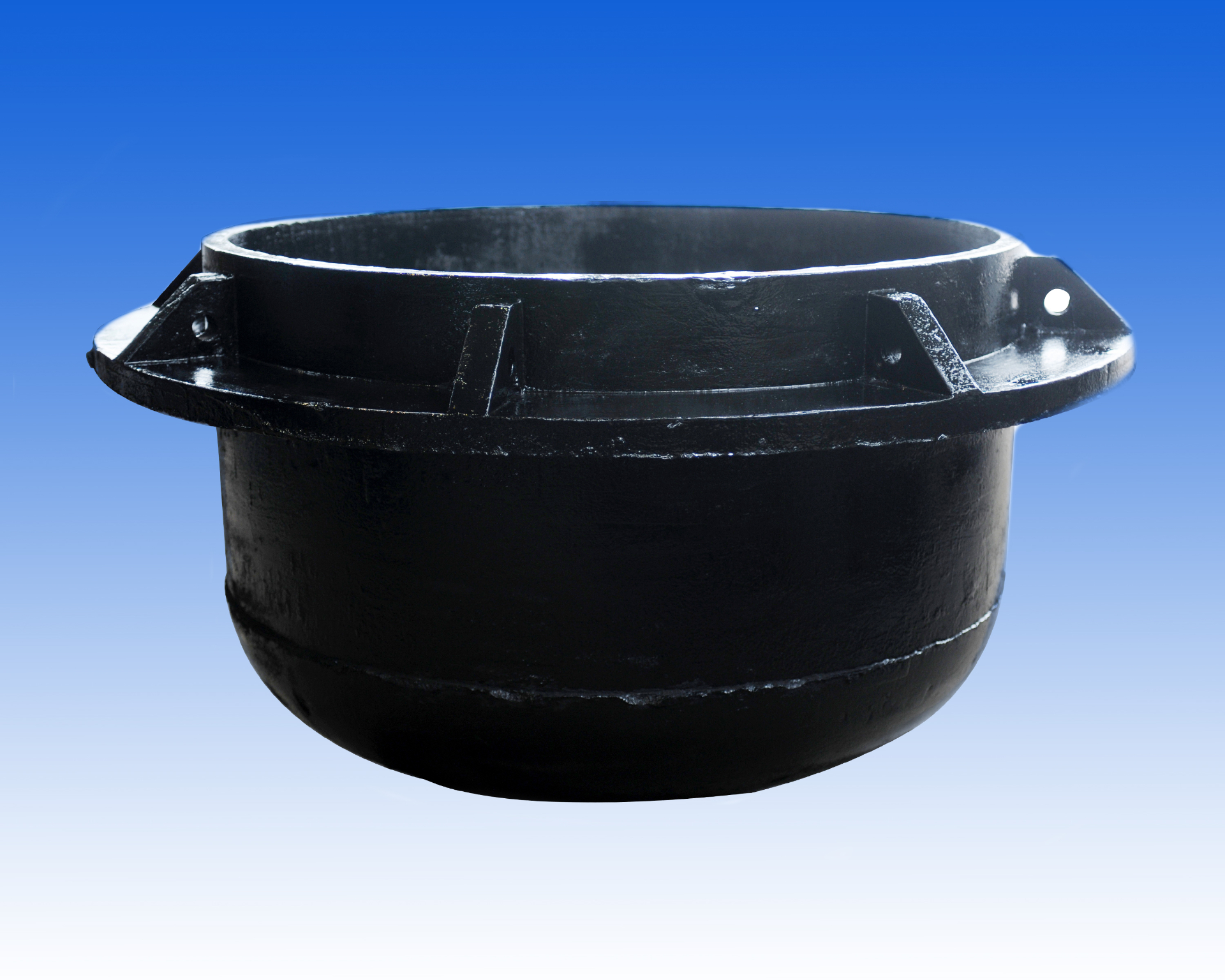

铸钢坩埚 / 钢包
Heavy-section cast crucible with reinforced trunnion lugs for molten metal handling and slag pot duty.
矿浆泵零件

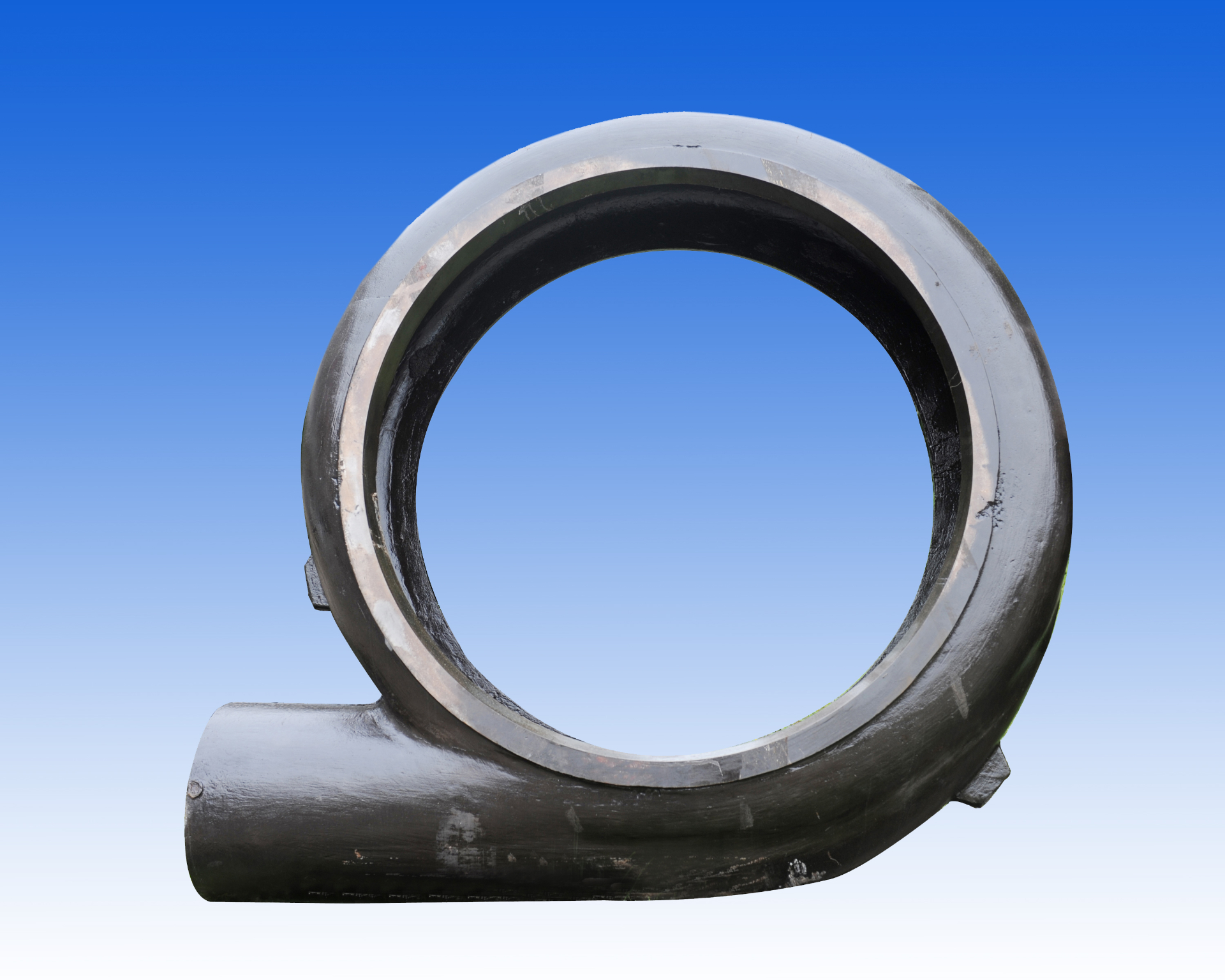

高铬矿浆泵蜗壳
High-chromium cast iron slurry pump casing built to resist abrasive and corrosive tailings service.
紧固件

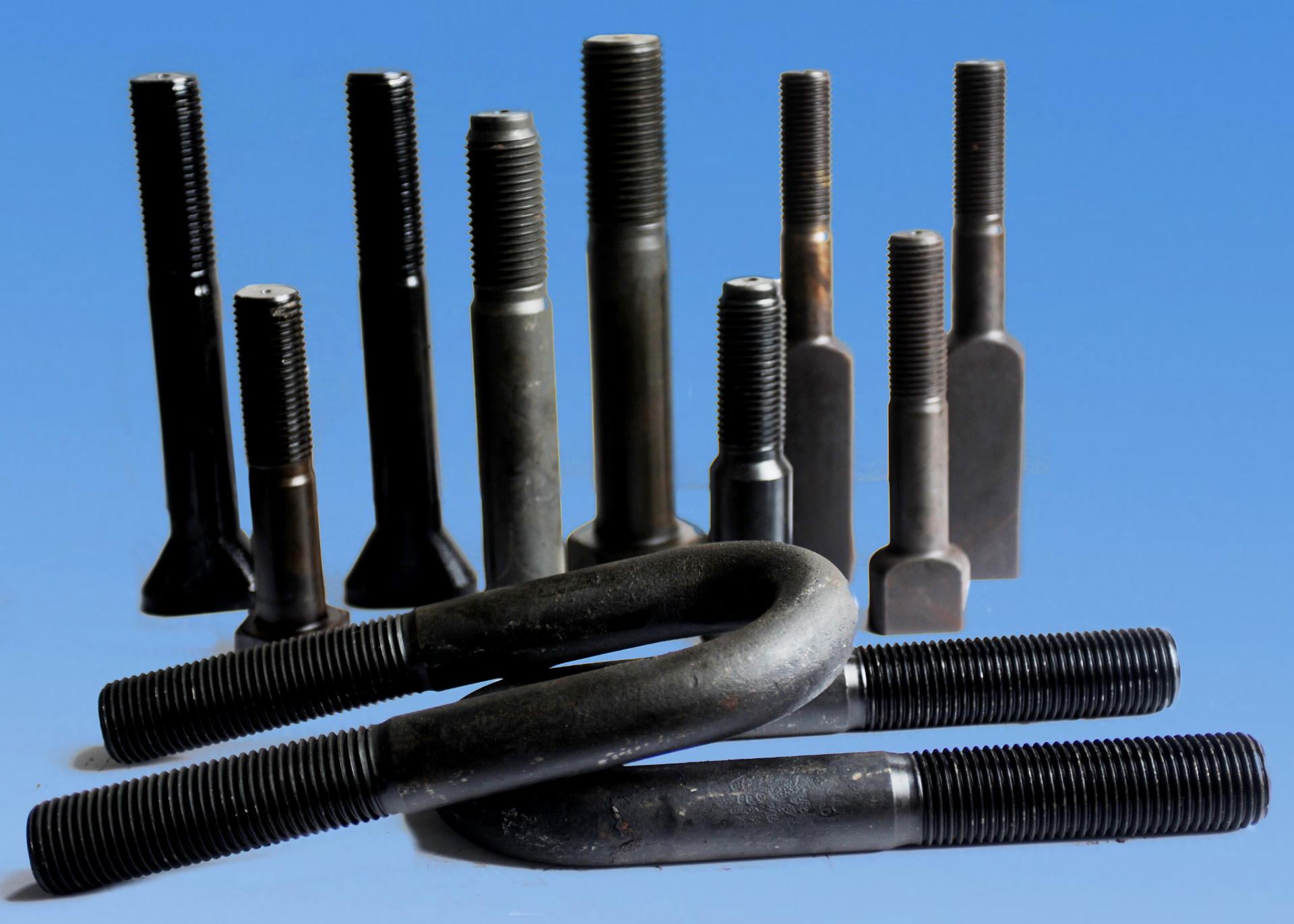

衬板螺栓、螺柱及 U 型螺栓
Full range of high-tensile fasteners — square-head liner bolts, studs and U-bolts for mill and crusher assemblies.
破碎机易损件

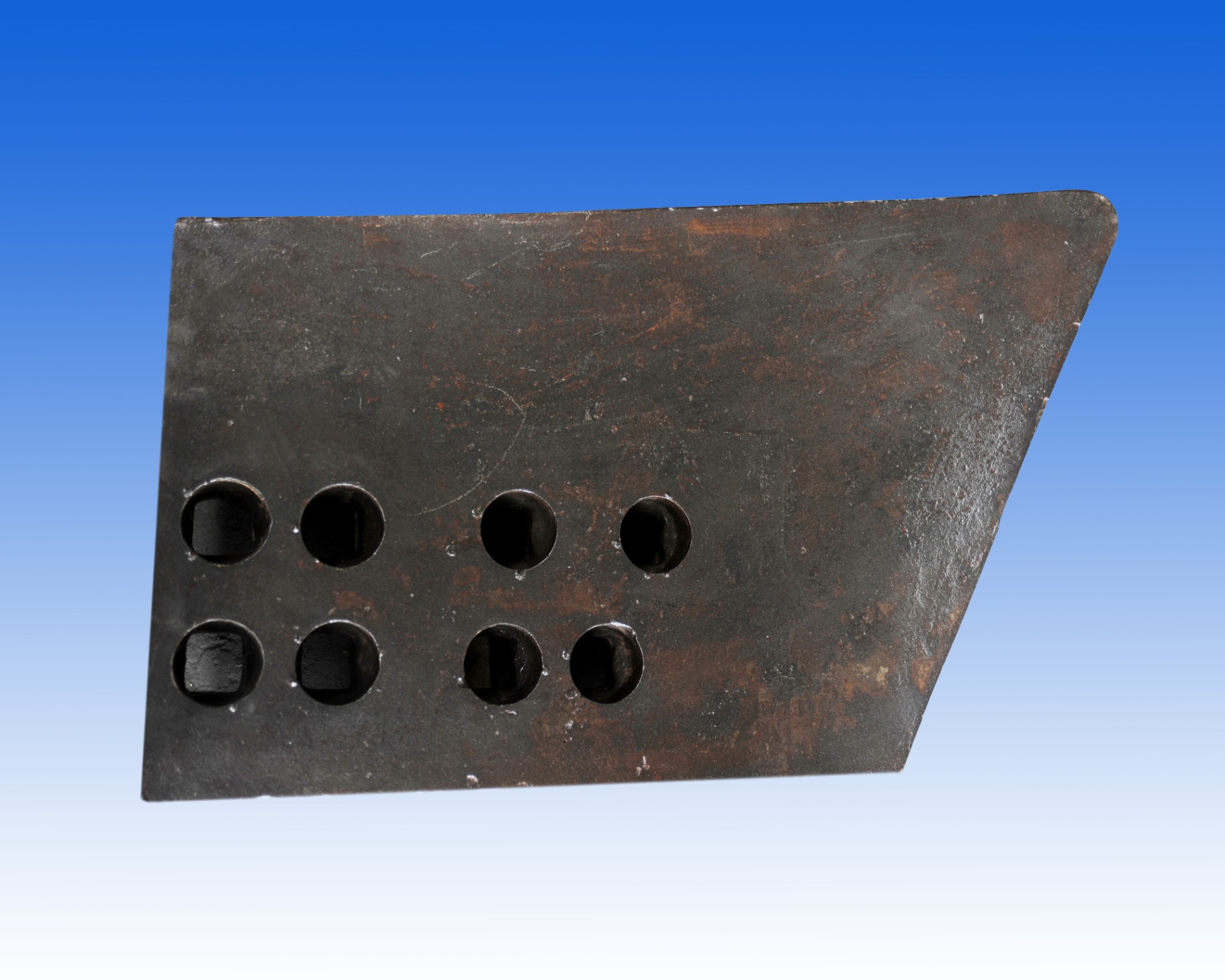

铲斗侧刃 / 翼板护套
Hardened wear blade protecting the side wall of excavator and loader buckets in heavy mining duty.
大型铸件

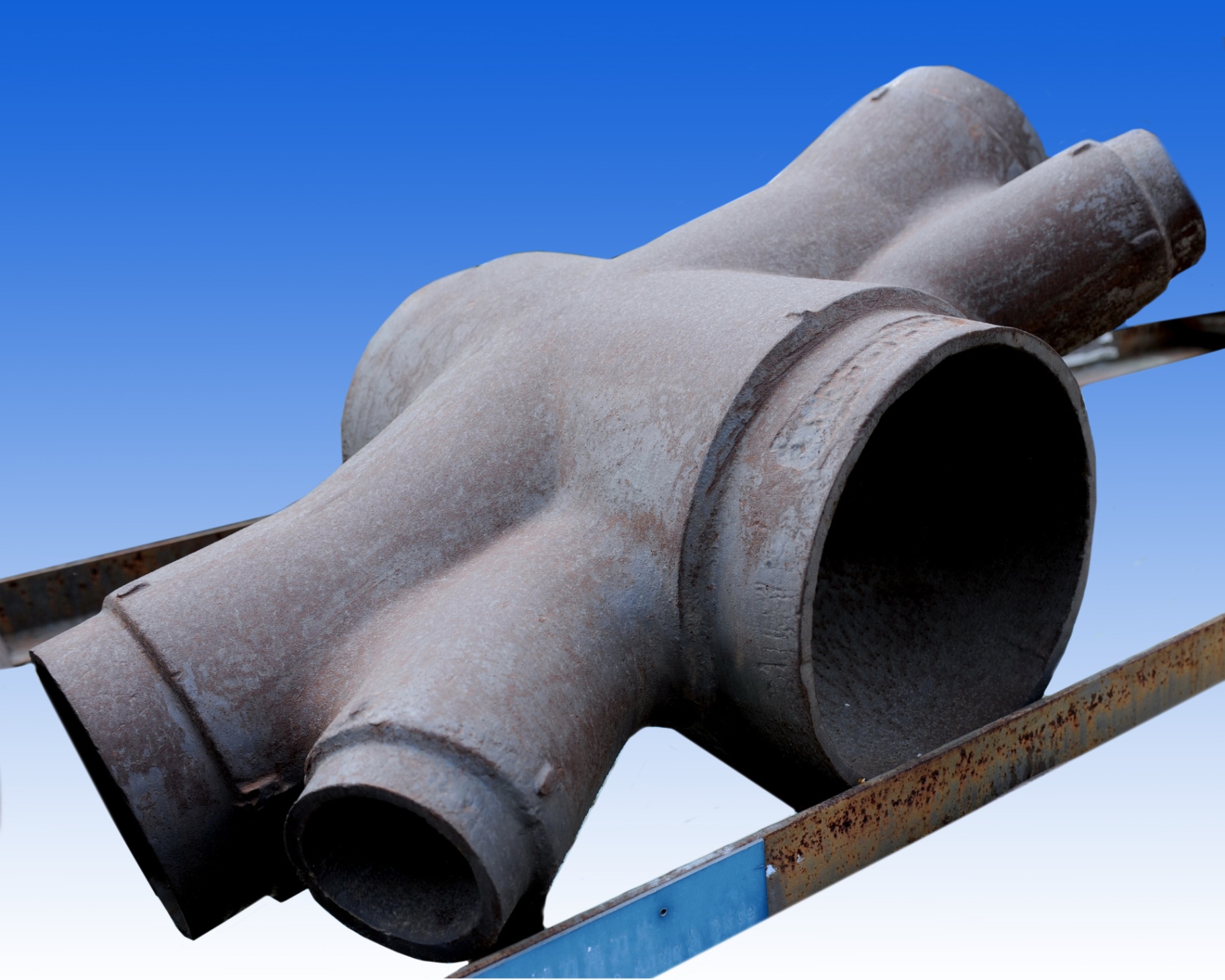

重型铸造管件 / 四通
Multi-port cast pipe fitting for high-pressure slurry and process piping in mineral processing plants.
矿山辅助设备

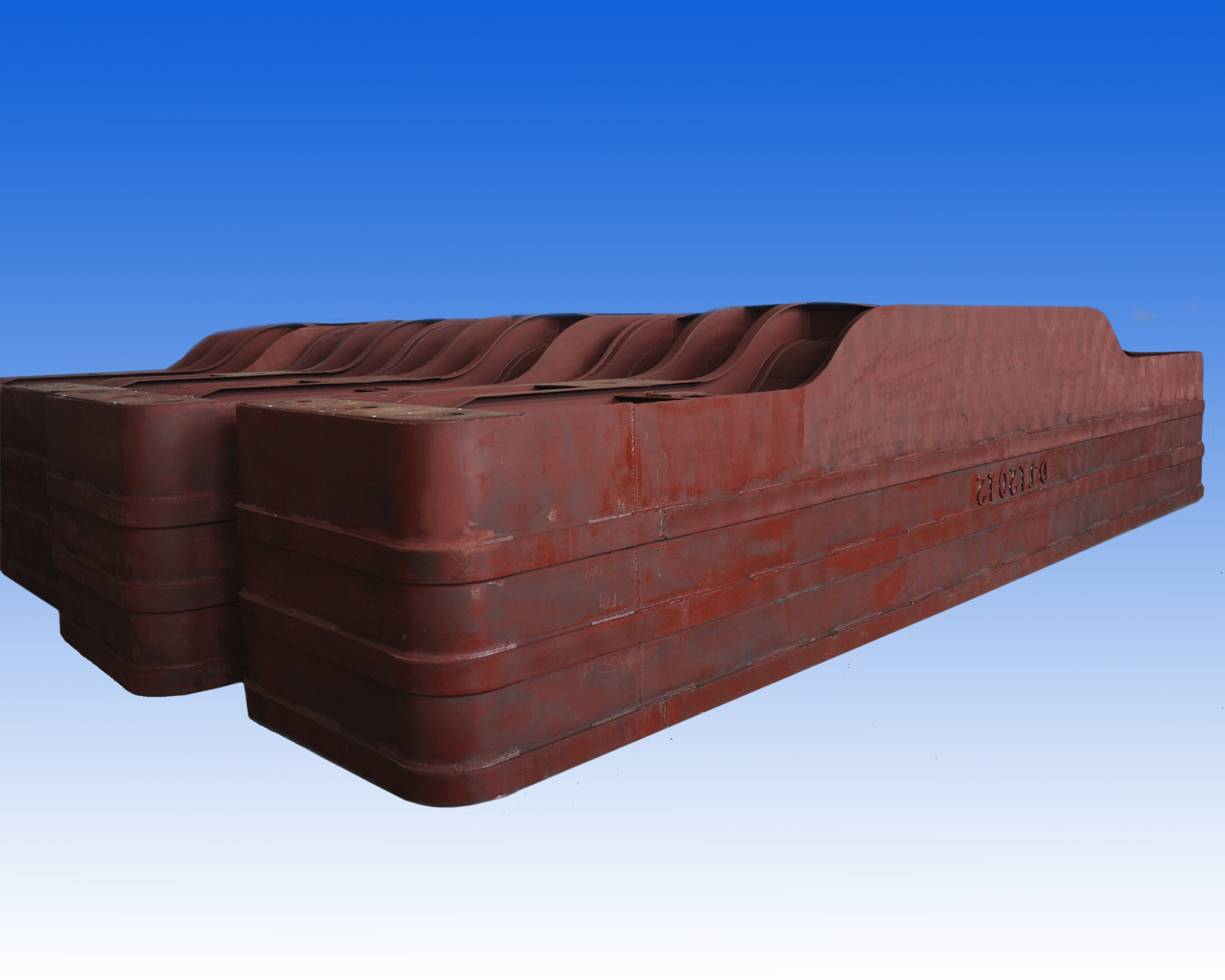

矿用卡车车厢
Fabricated heavy-duty dump body for off-highway mining trucks, with curved floor for optimal load discharge.
矿山辅助设备

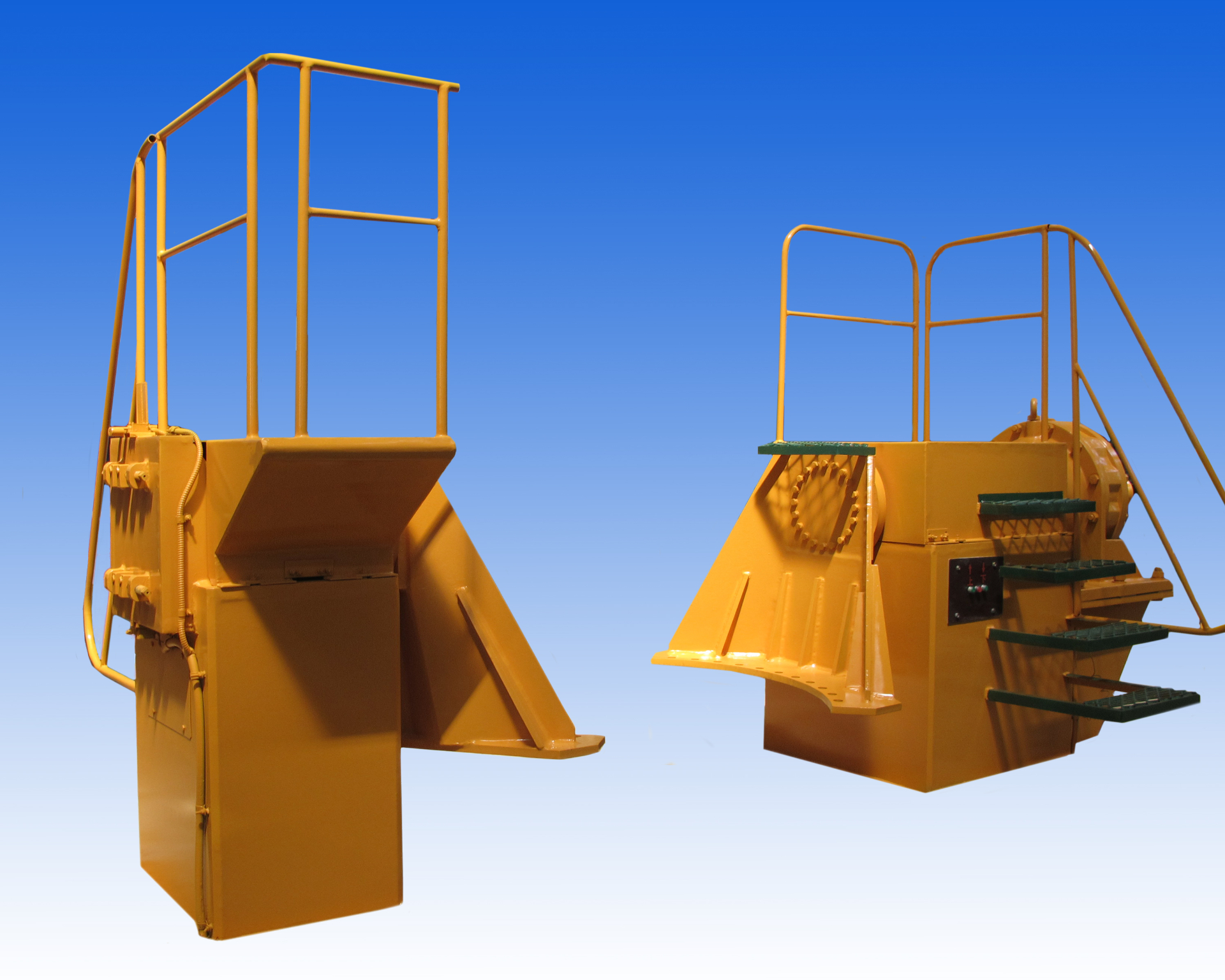

电动轮电机翻转机
General-purpose turnover fixture used for safe positioning and maintenance of electric wheel motor assemblies.
矿山辅助设备

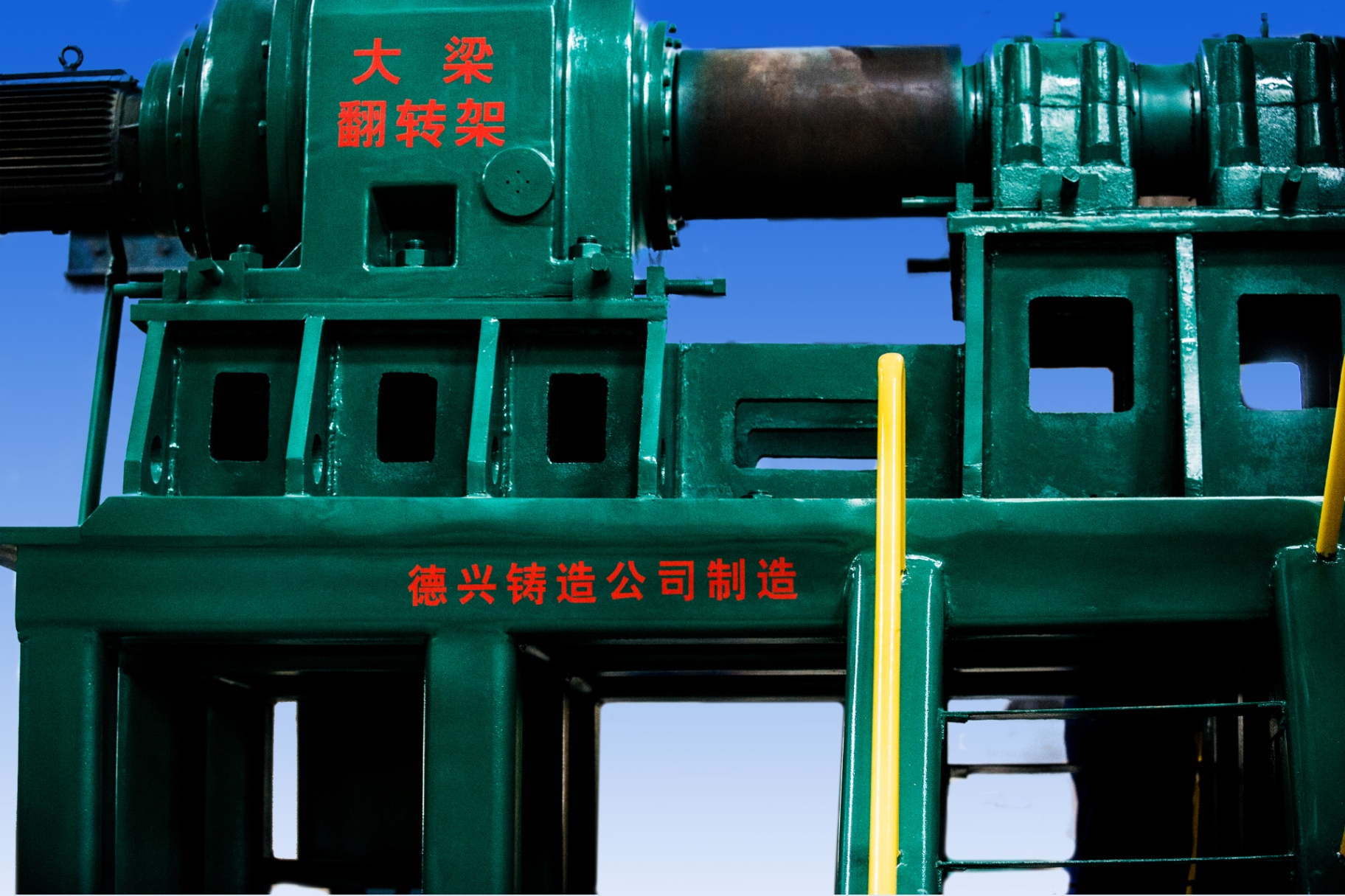

卡车主梁翻转支架
Heavy-duty turnover stand for electric wheel truck main frame repair, built for controlled rotation during overhaul.
矿山辅助设备

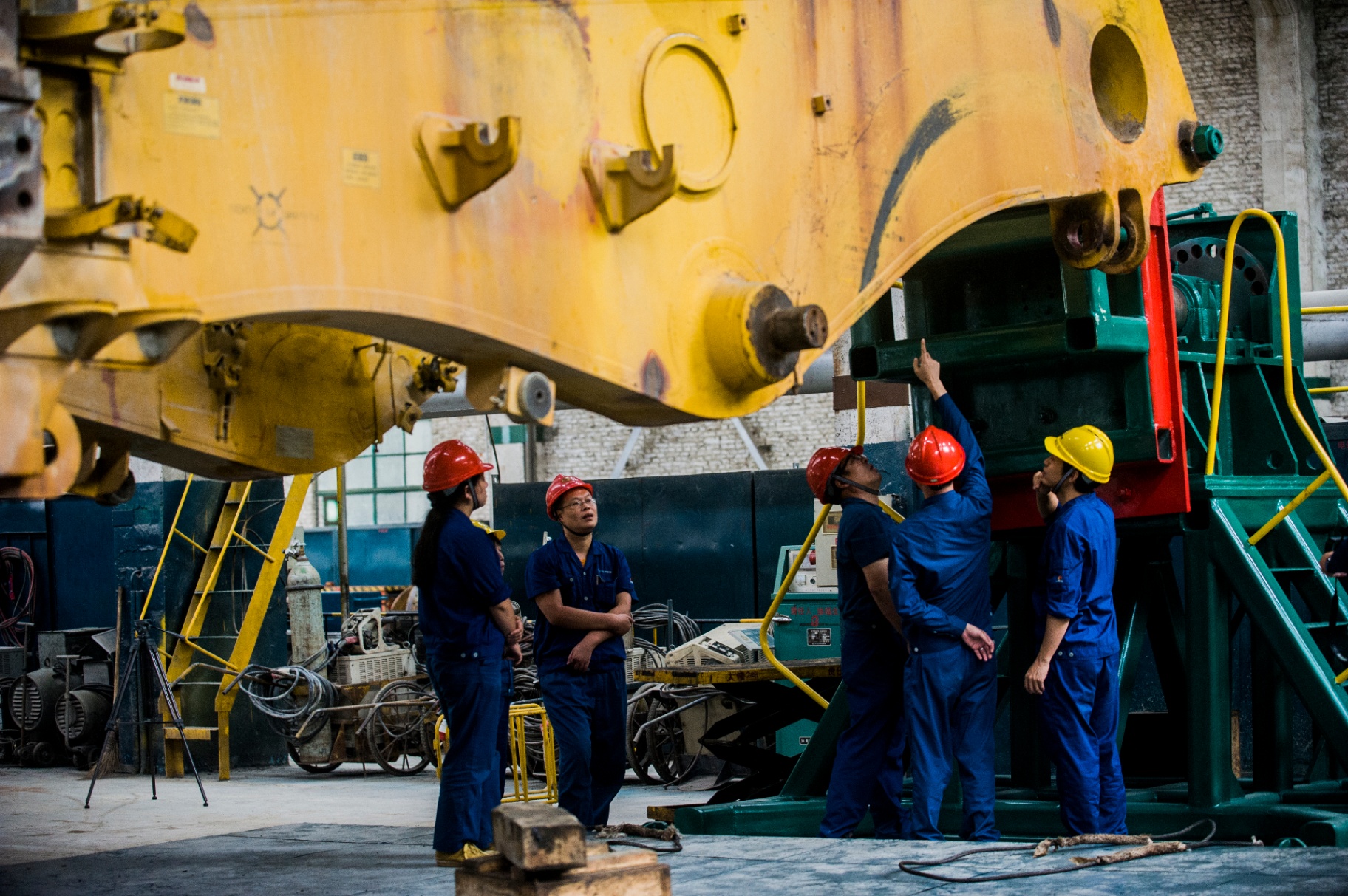

主梁翻转支架 — 现场使用
Workshop installation photo showing the main frame turnover system supporting haul-truck structural repair work.
工业部件

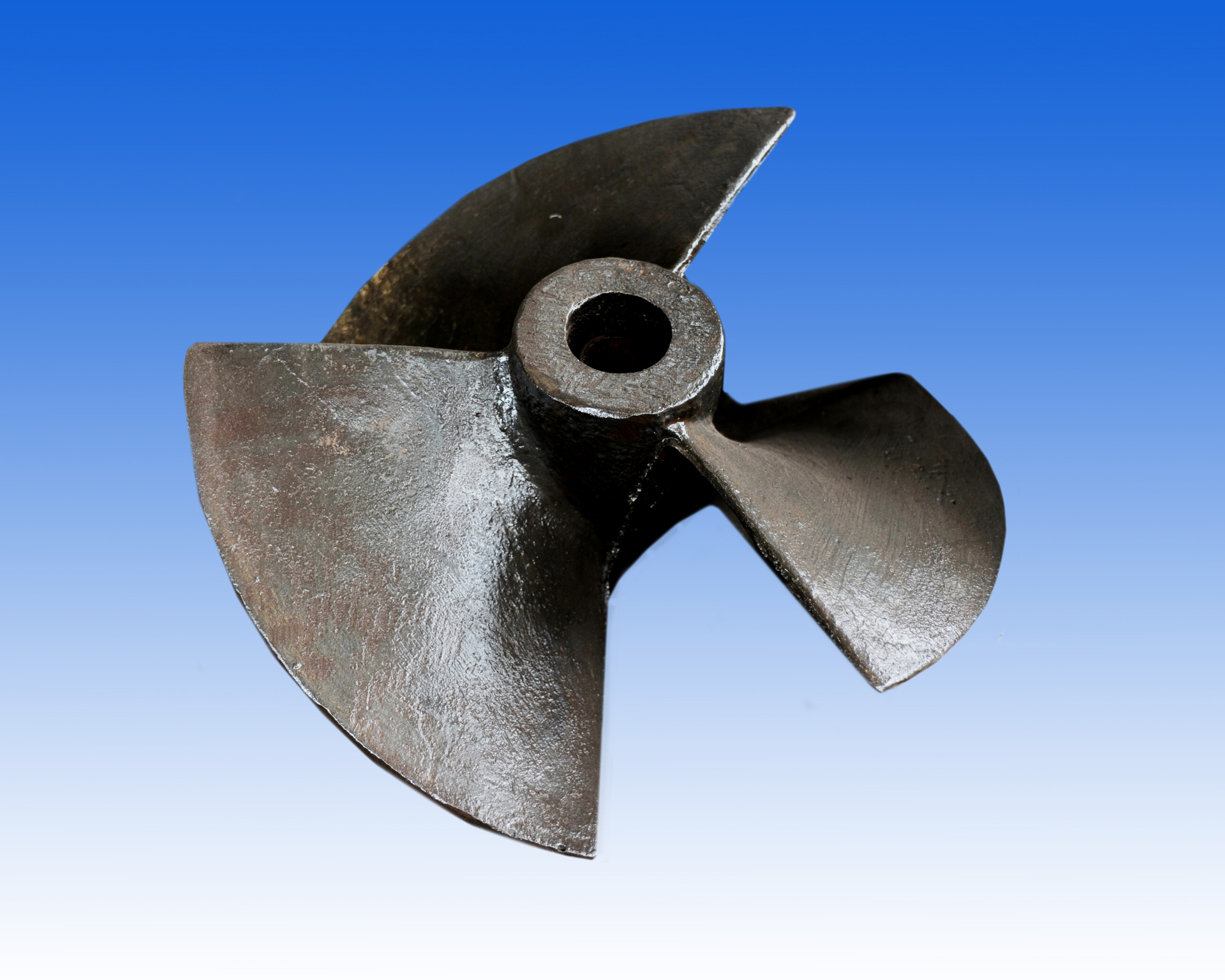

电机叶轮叶片
Cast impeller blade component for industrial motor and pumping applications, machined at the hub for secure mounting.
工业部件

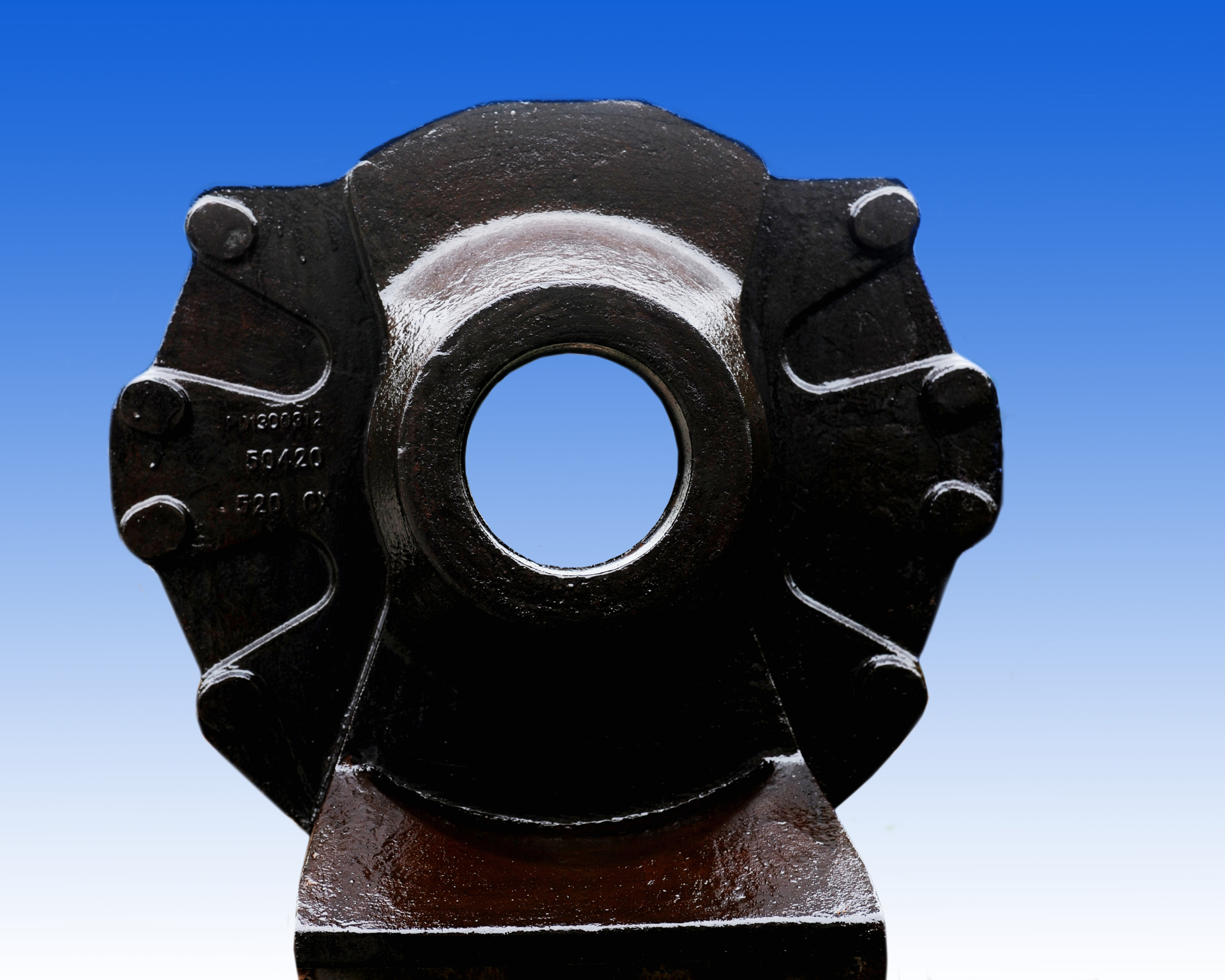

电机轴承座
Robust cast bearing seat with reinforced mounting ears for motor drive systems operating in heavy industrial service.
破碎机易损件

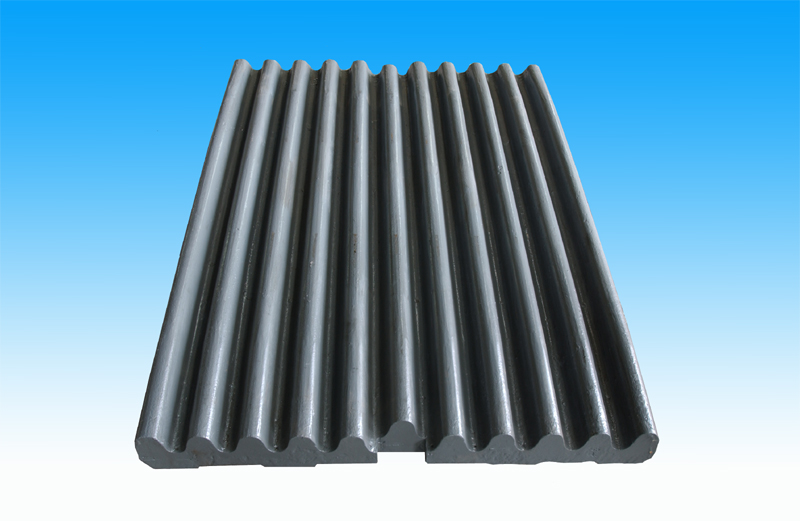

波纹颚板 / 齿板
Cast high-manganese jaw plate with corrugated tooth profile for primary crushing duty in jaw crushers.
电铲总成

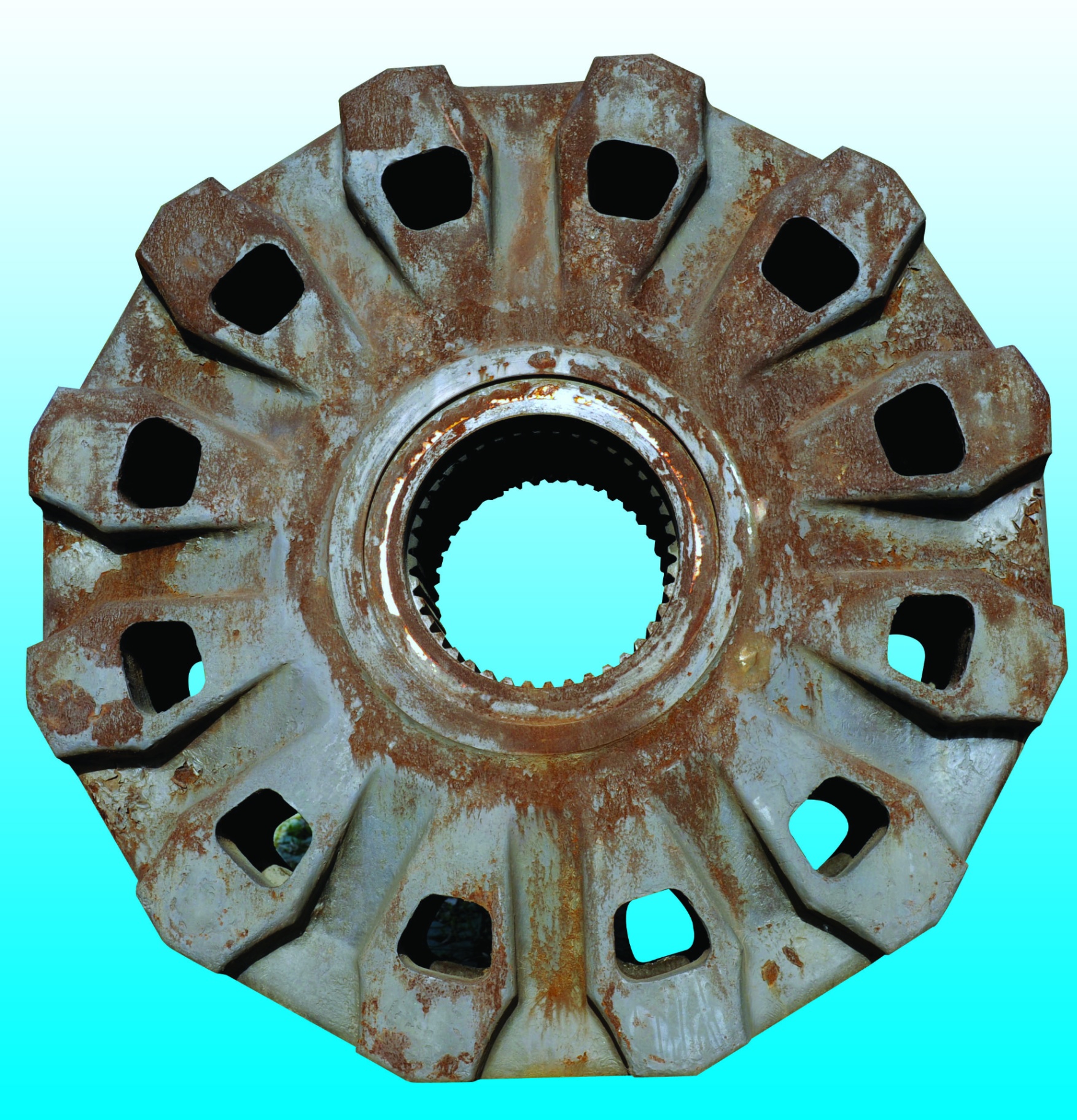

电铲驱动轮
Large cast drive wheel for mining electric shovels, featuring internal splined hub and reinforced spoke structure.
电铲总成

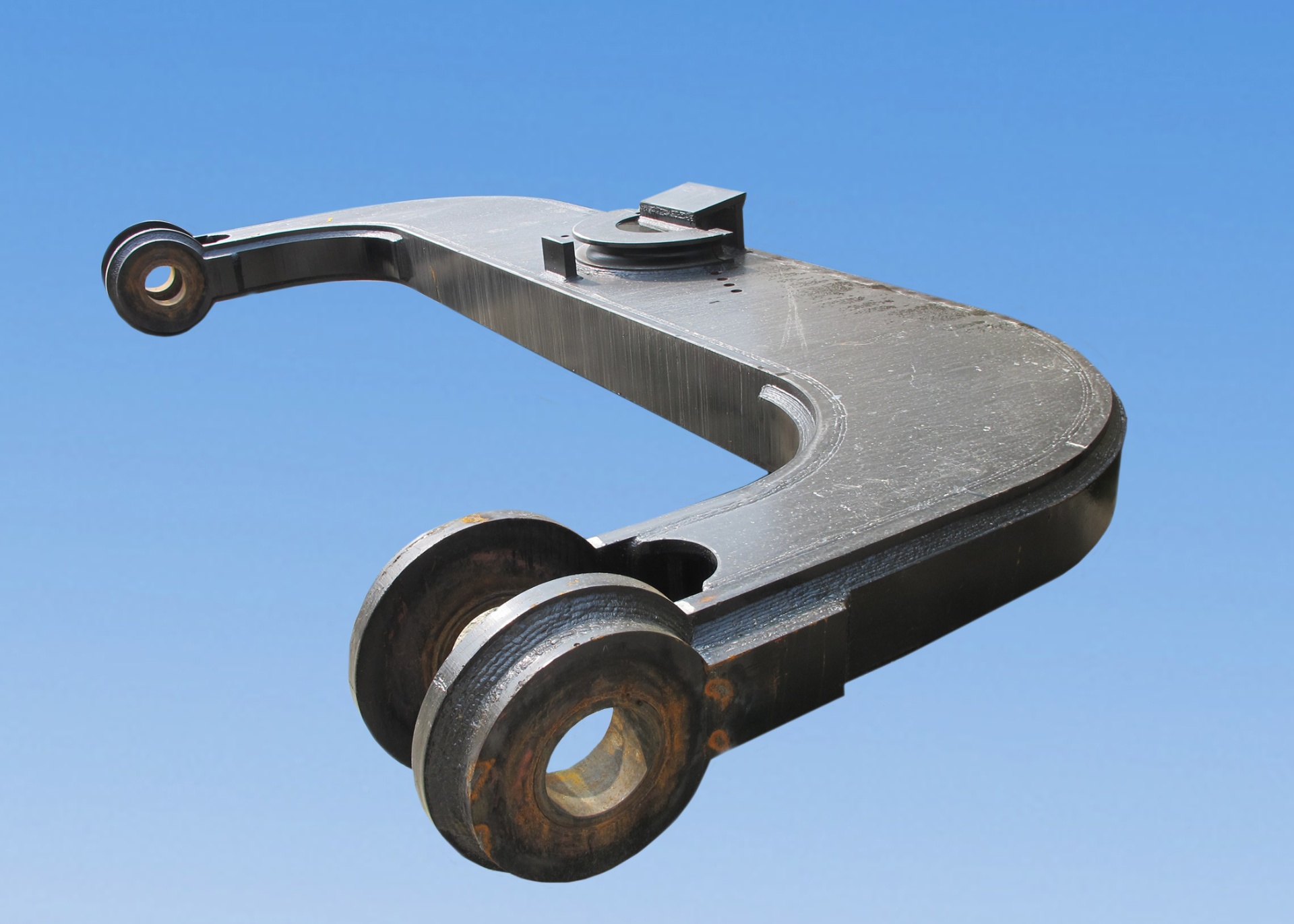

电铲提升梁
Forged and machined lifting beam (equalizer) for electric shovels, with precision-bored pin bosses for hoist rope sheaves.
矿山辅助设备

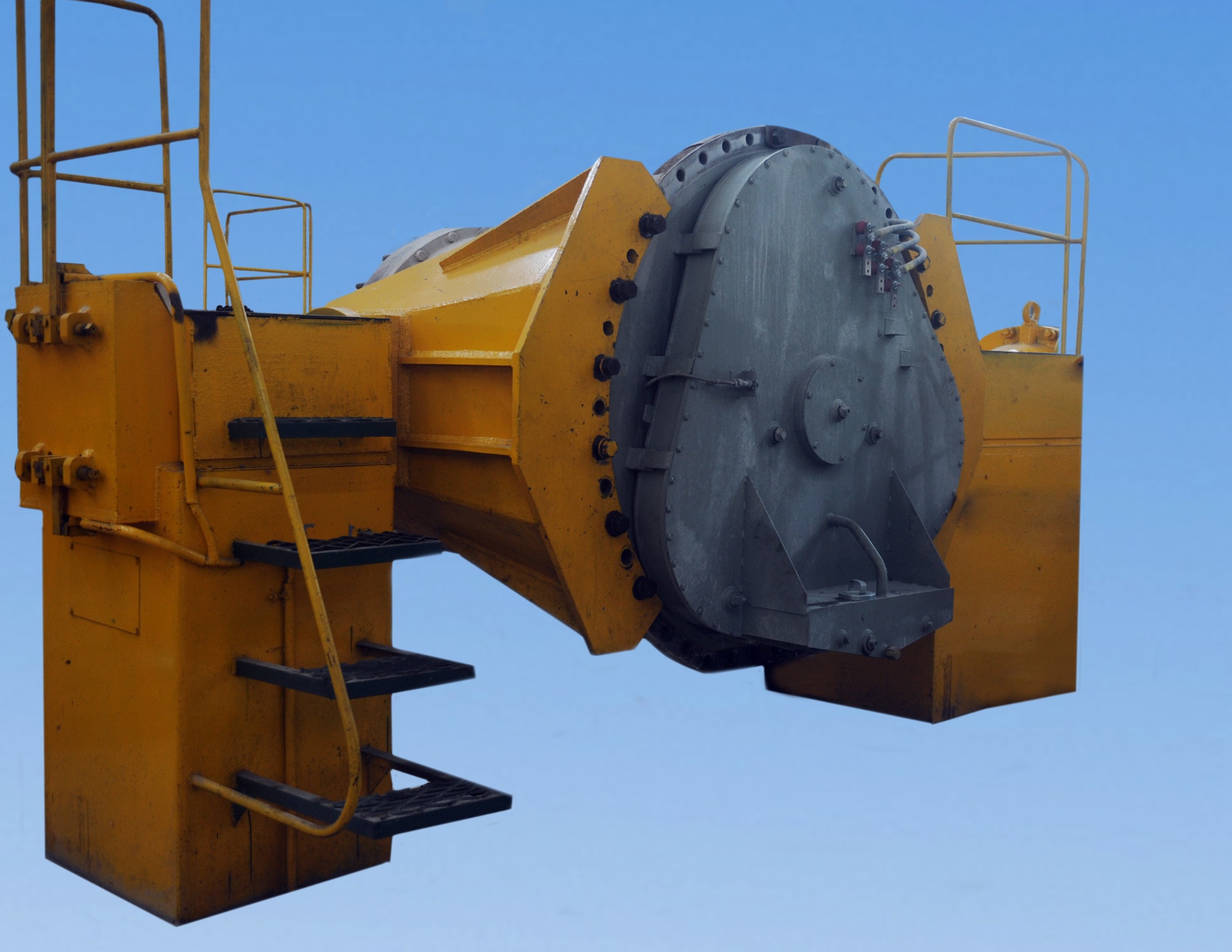

电动轮牵引车主梁修复工装
Purpose-built fixture for rotating and repairing haul-truck electric wheel main frames during overhaul.
破碎机易损件

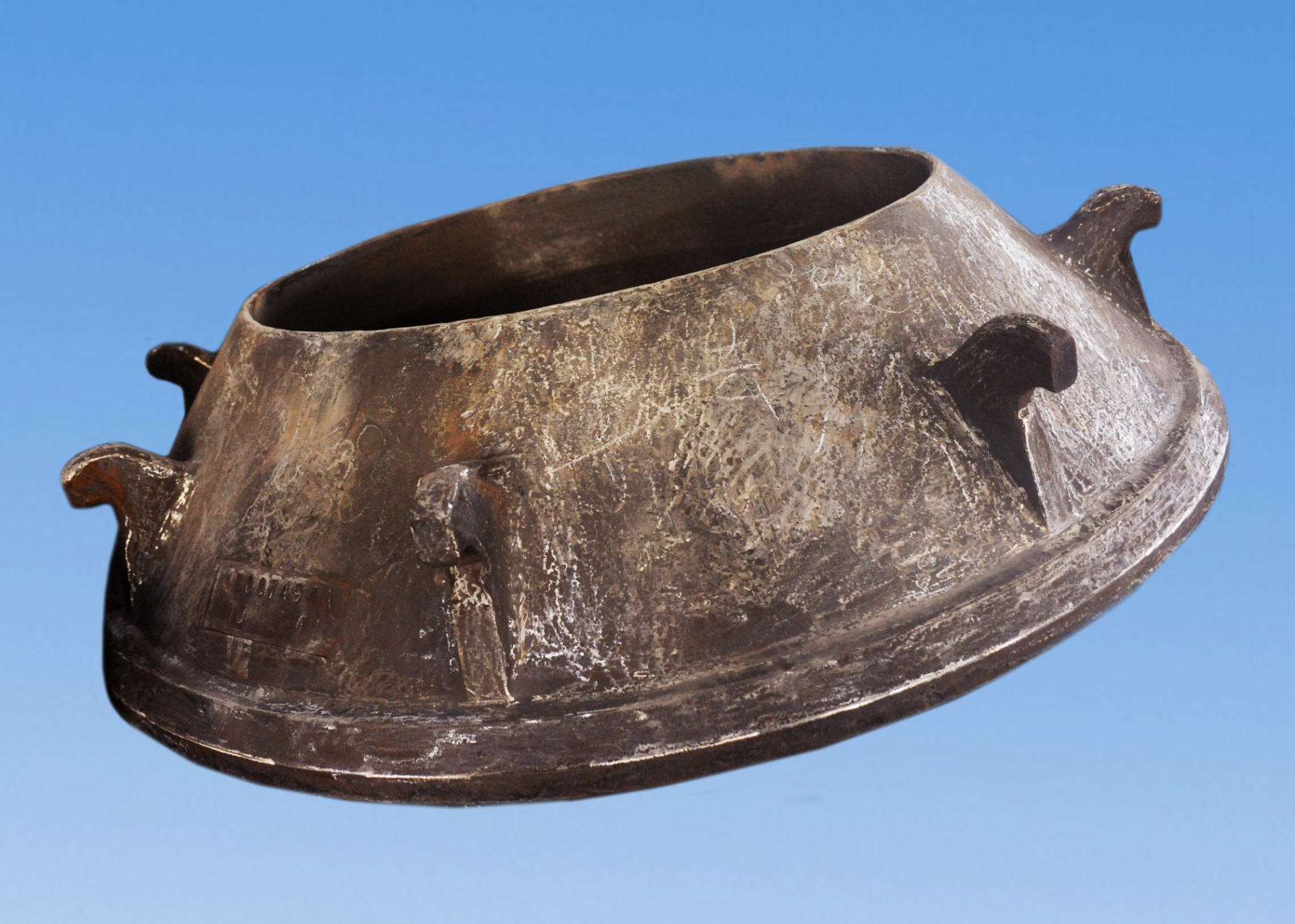

7" 圆锥破碎机衬板
High-strength cone liner casting for crushing duty, shown from the outer locking profile and support lugs.
破碎机易损件

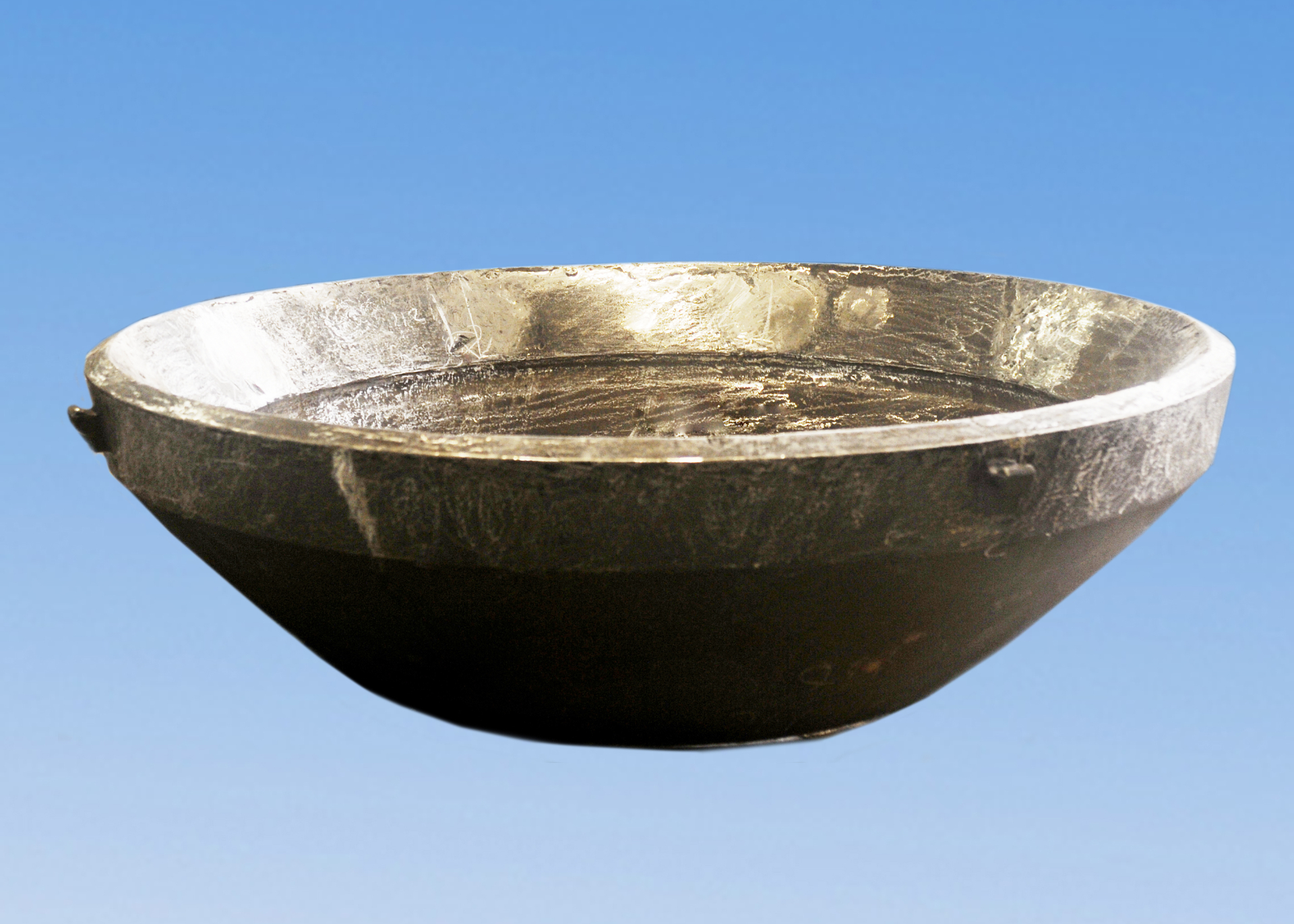

7" 圆锥破碎机轧臼壁
Precision-machined inner working face for stable fitment, wear resistance and long service life in cone crushers.
挖掘配件

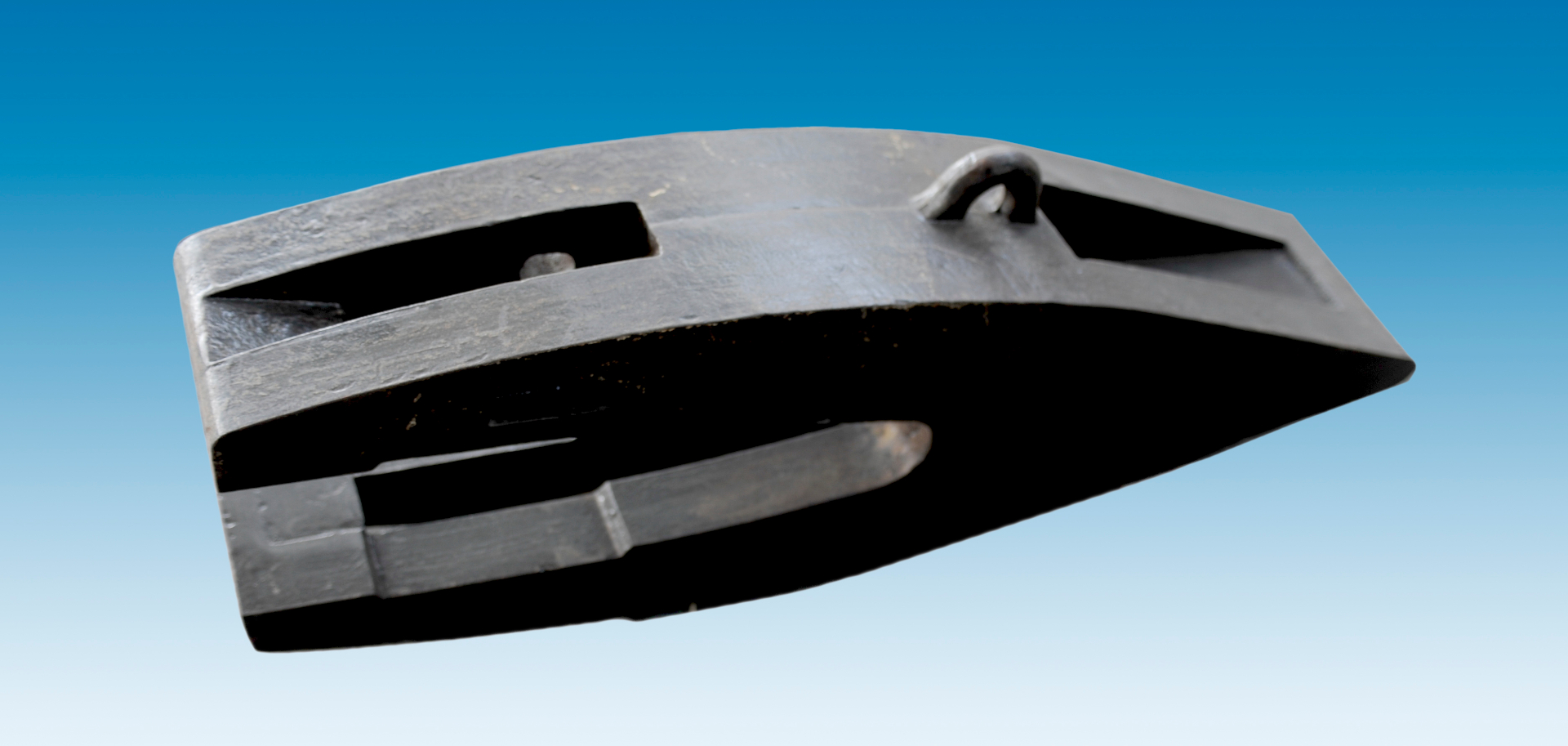

14m³ 电铲斗齿
Heavy-duty cast tooth designed for electric shovel buckets in high-impact loading and abrasive ore conditions.
矿山辅助设备
EH3500 故障救援牵引车 — 前视图
Large mine-site emergency towing tractor built for recovery and support operations on ultra-class haul roads.
矿山辅助设备
EH3500 故障救援牵引车 — 后平台
Rear service platform and heavy-duty chassis layout showing the working structure of the mine rescue tractor.
矿山辅助设备

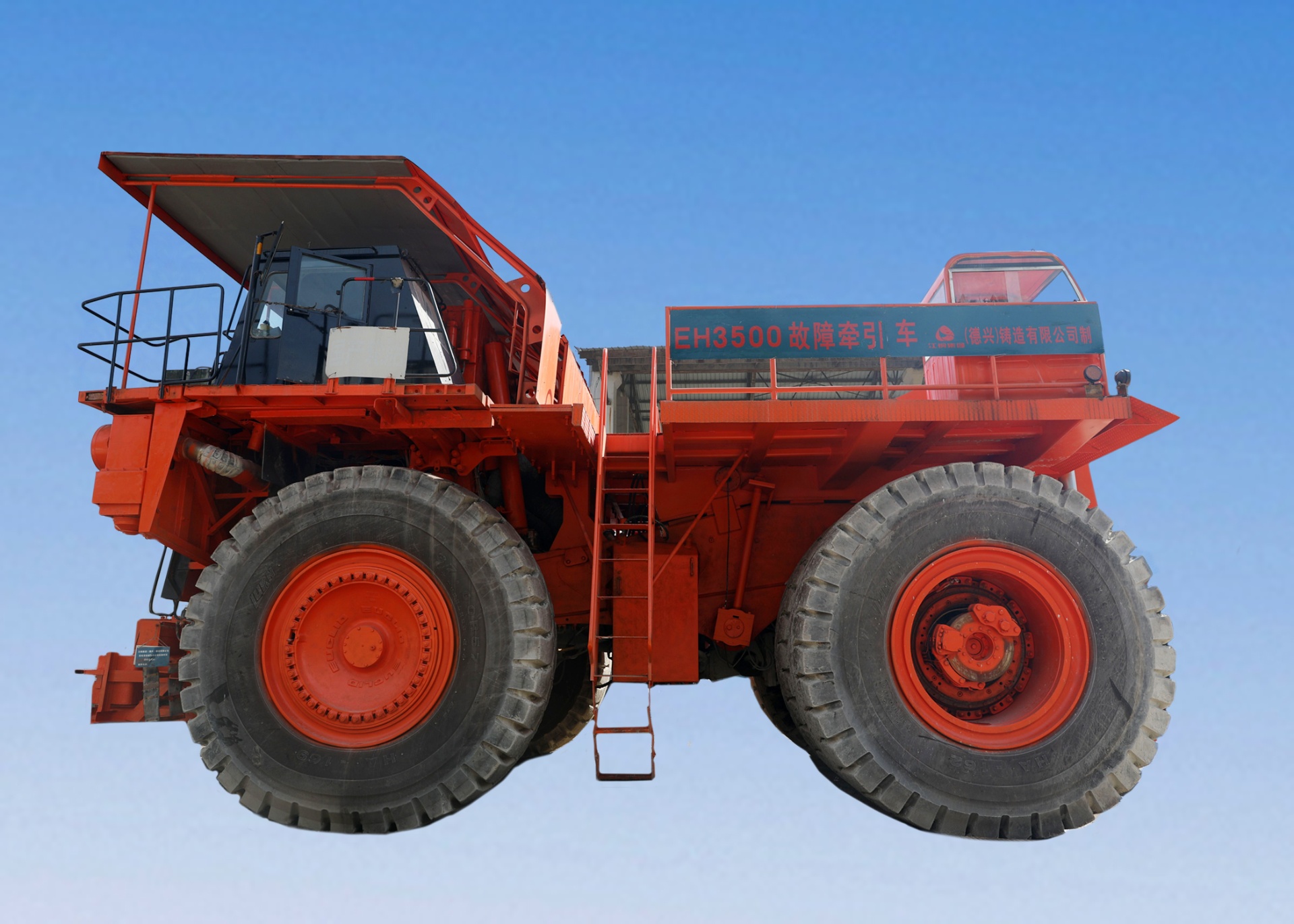

EH3500 故障救援牵引车 — 侧视图
Full side elevation of the mine recovery vehicle with operator cab, towing structure and large off-road wheelset.
矿用卡车结构件

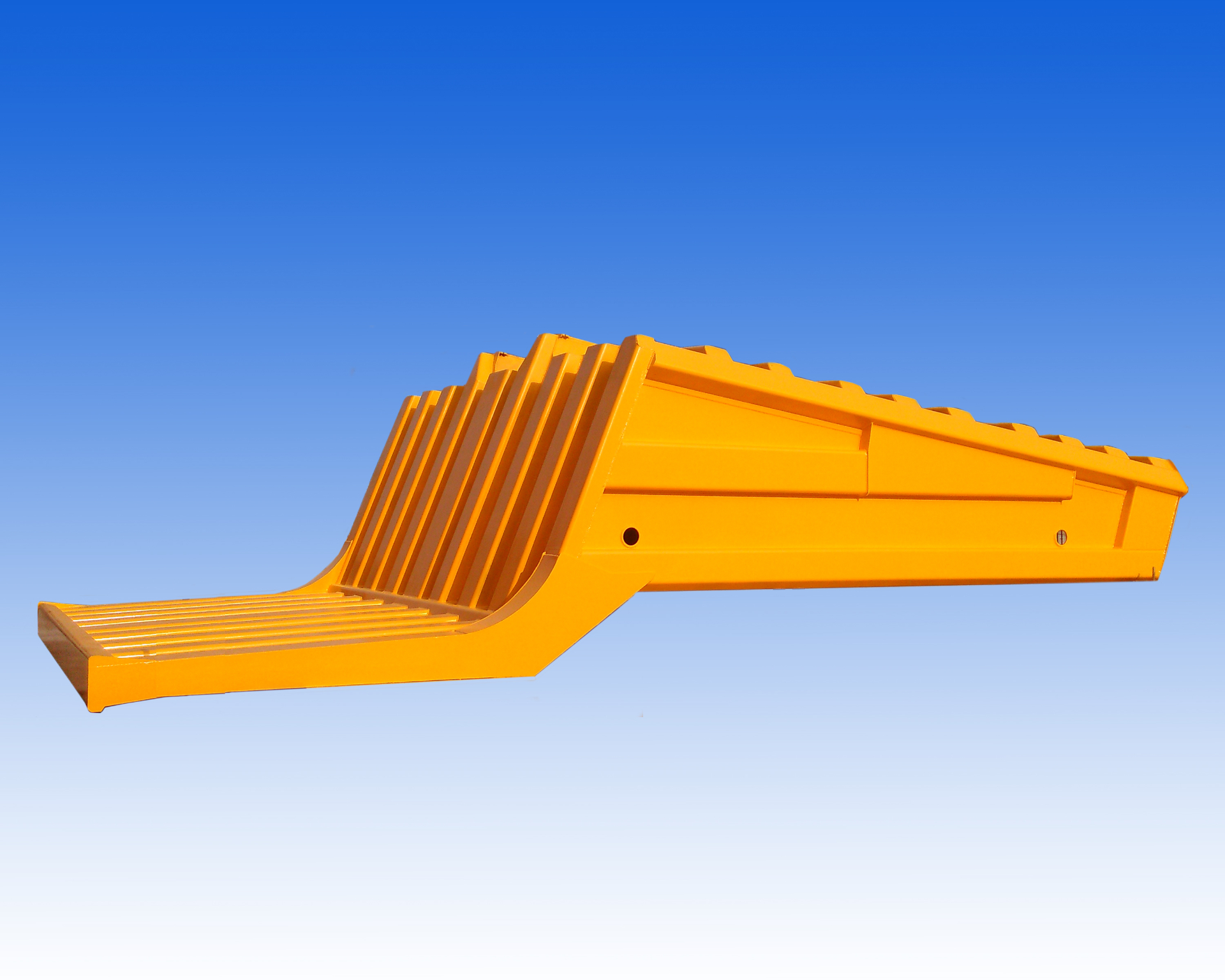

730E 电动轮卡车车厢
Reinforced dump body structure for 180-ton class haul trucks, engineered for long-cycle open-pit service.
矿用卡车结构件

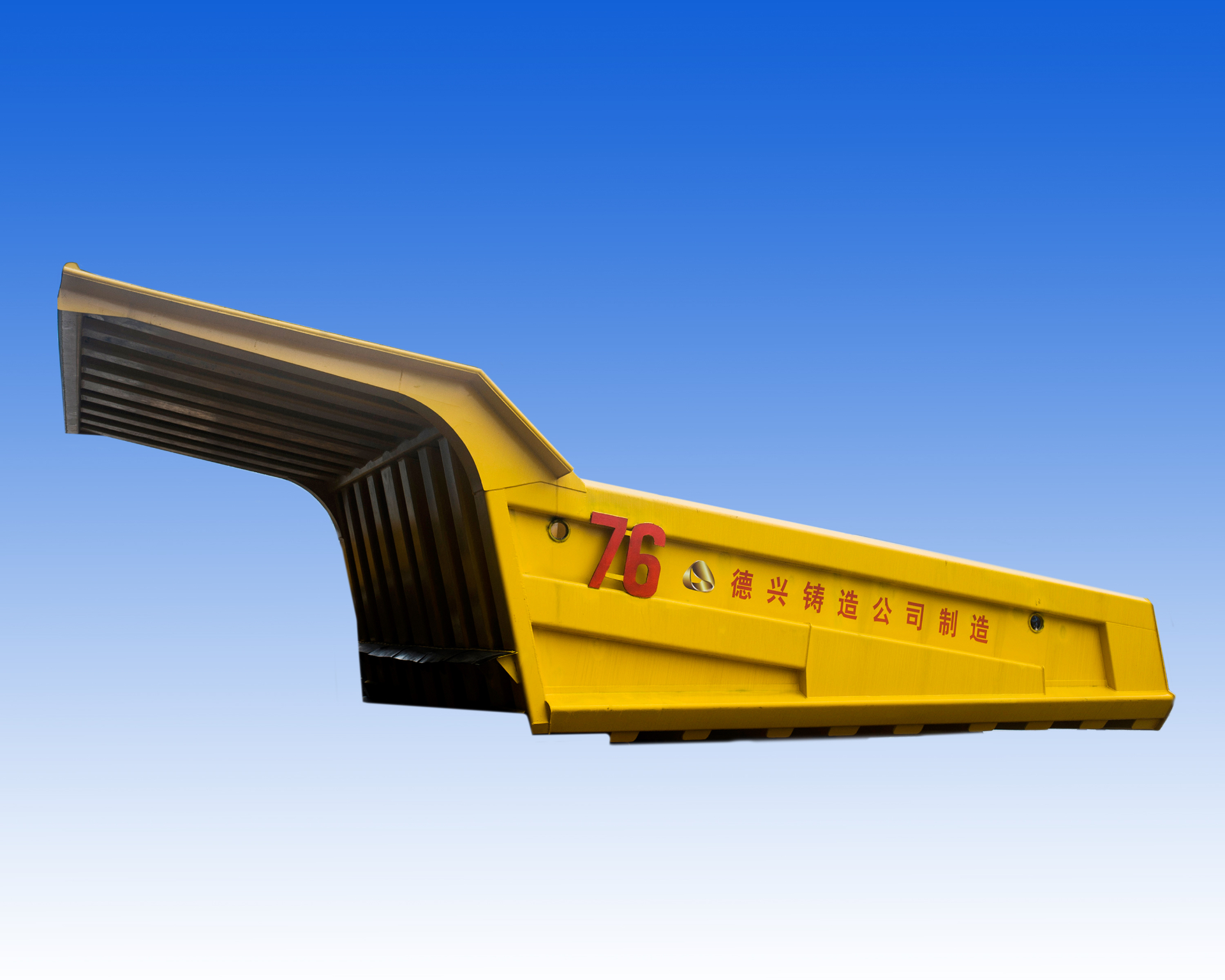

730E 卡车车厢 — 侧部结构
Side view highlighting the ribbed plate reinforcement, wear zones and structural geometry of the truck body.
电铲总成

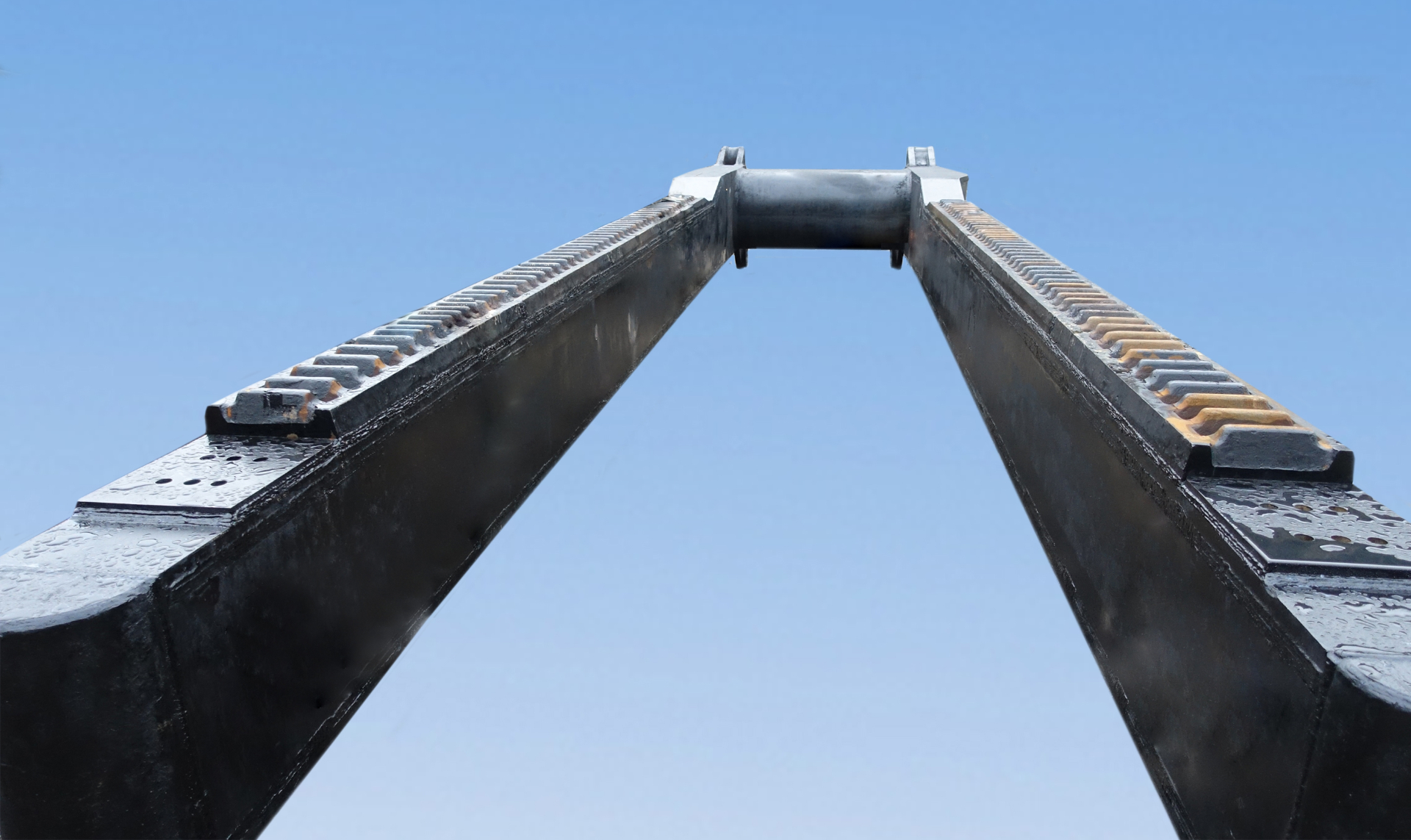

2300XP 斗柄
Fabricated dipper handle assembly for electric shovels, with wear rails and heavy pin connection for field duty.
耐磨件

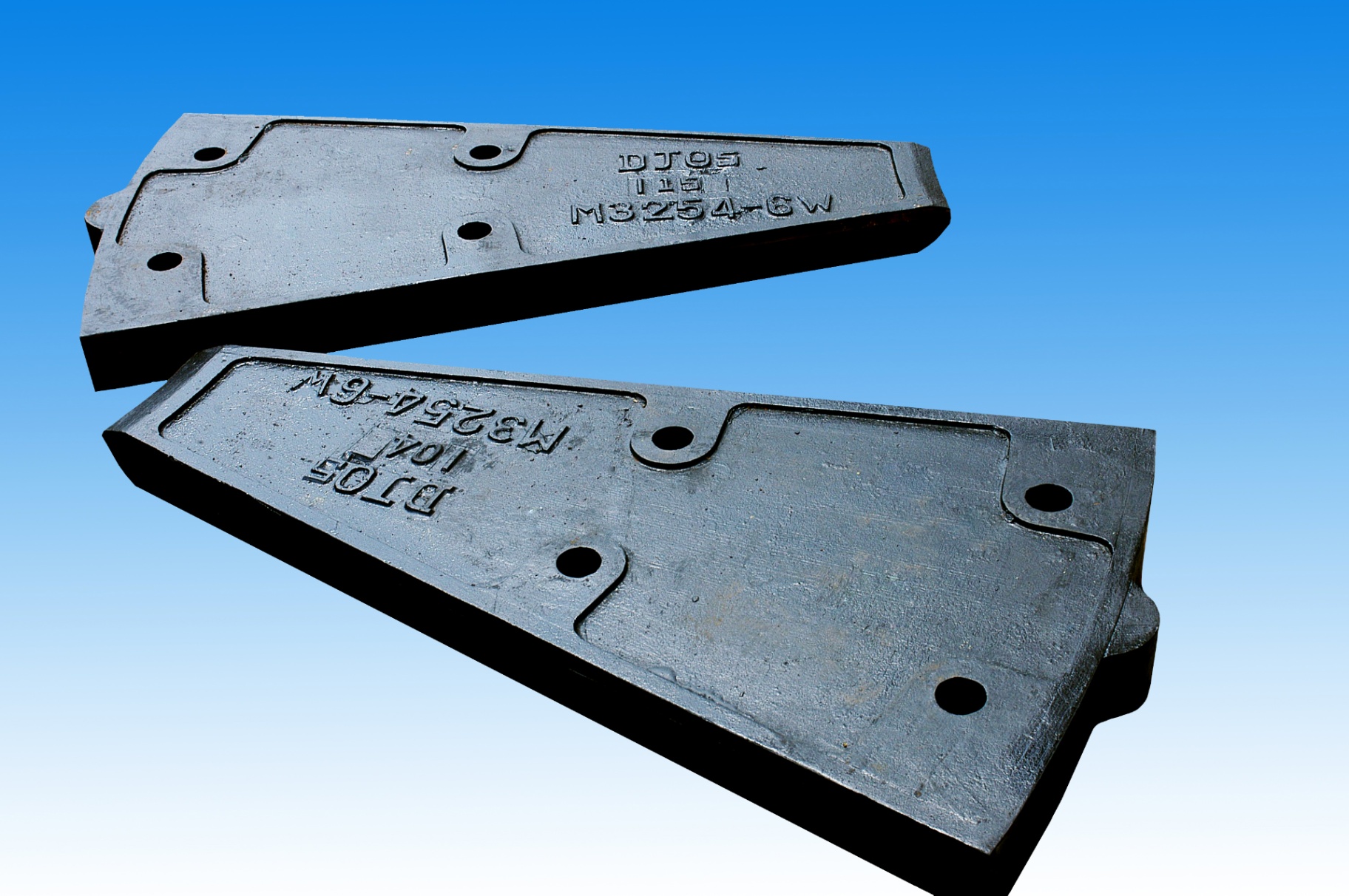

耐磨板套件
Machined wear plates for mining equipment, produced for repeatable fit, durability and maintenance efficiency.
矿山辅助设备

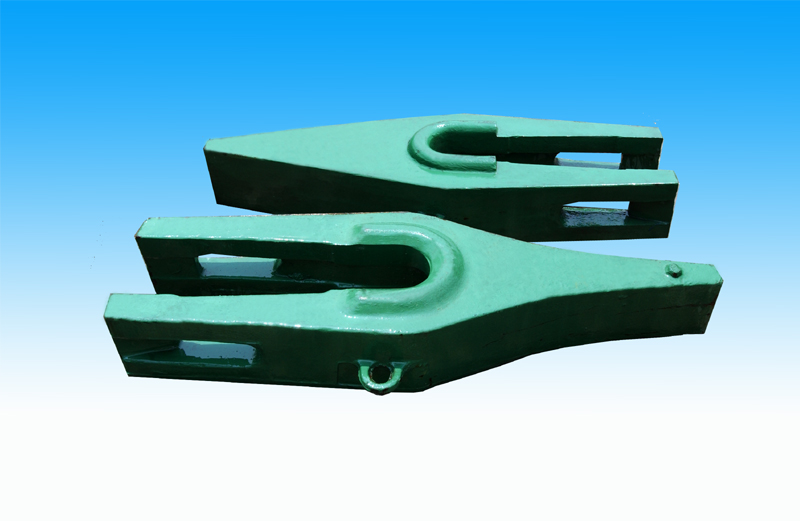

重型牵引架铸件
Twin cast tow brackets with reinforced clevis ends, finished in protective coating for haul-road recovery duty.
破碎机易损件

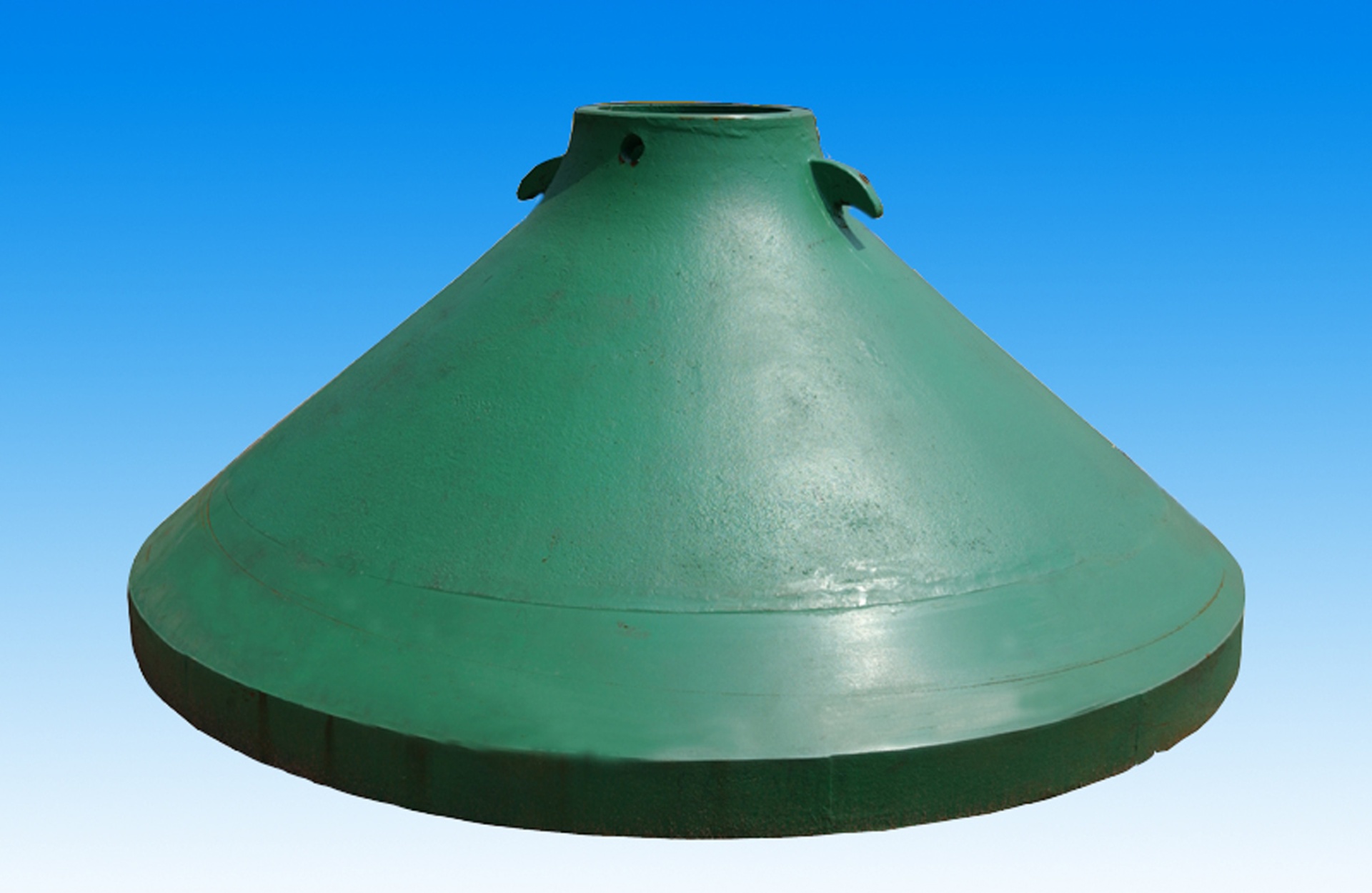

圆锥破碎机轧头护盖
Large conical wear cover for cone crusher head assemblies, cast in high-manganese steel for impact resistance.
输送设备

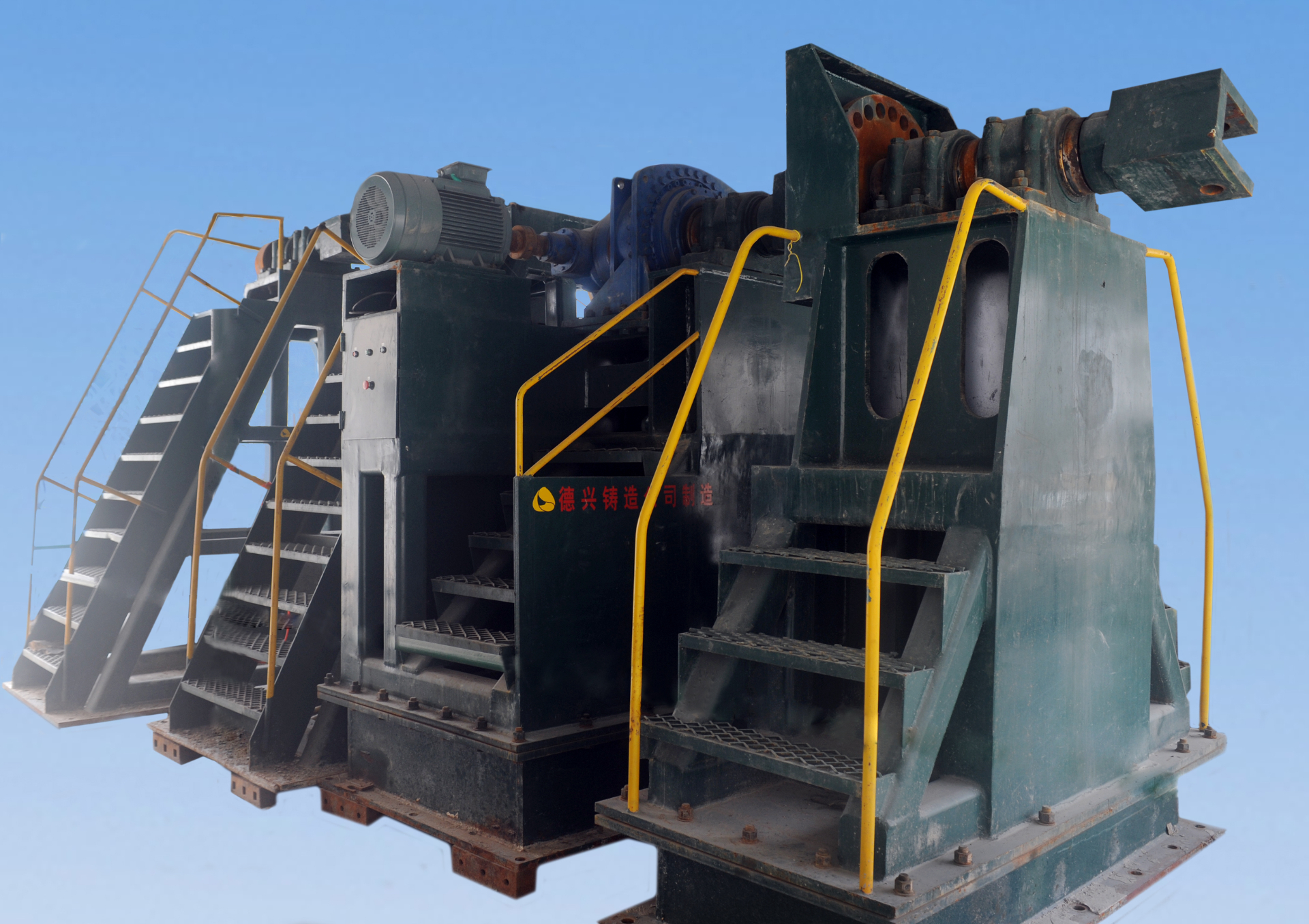

JDJ-1200 皮带张紧绞车
Heavy-duty belt take-up and pay-out winch unit, fully fabricated and assembled by Dexing Foundry.
输送设备

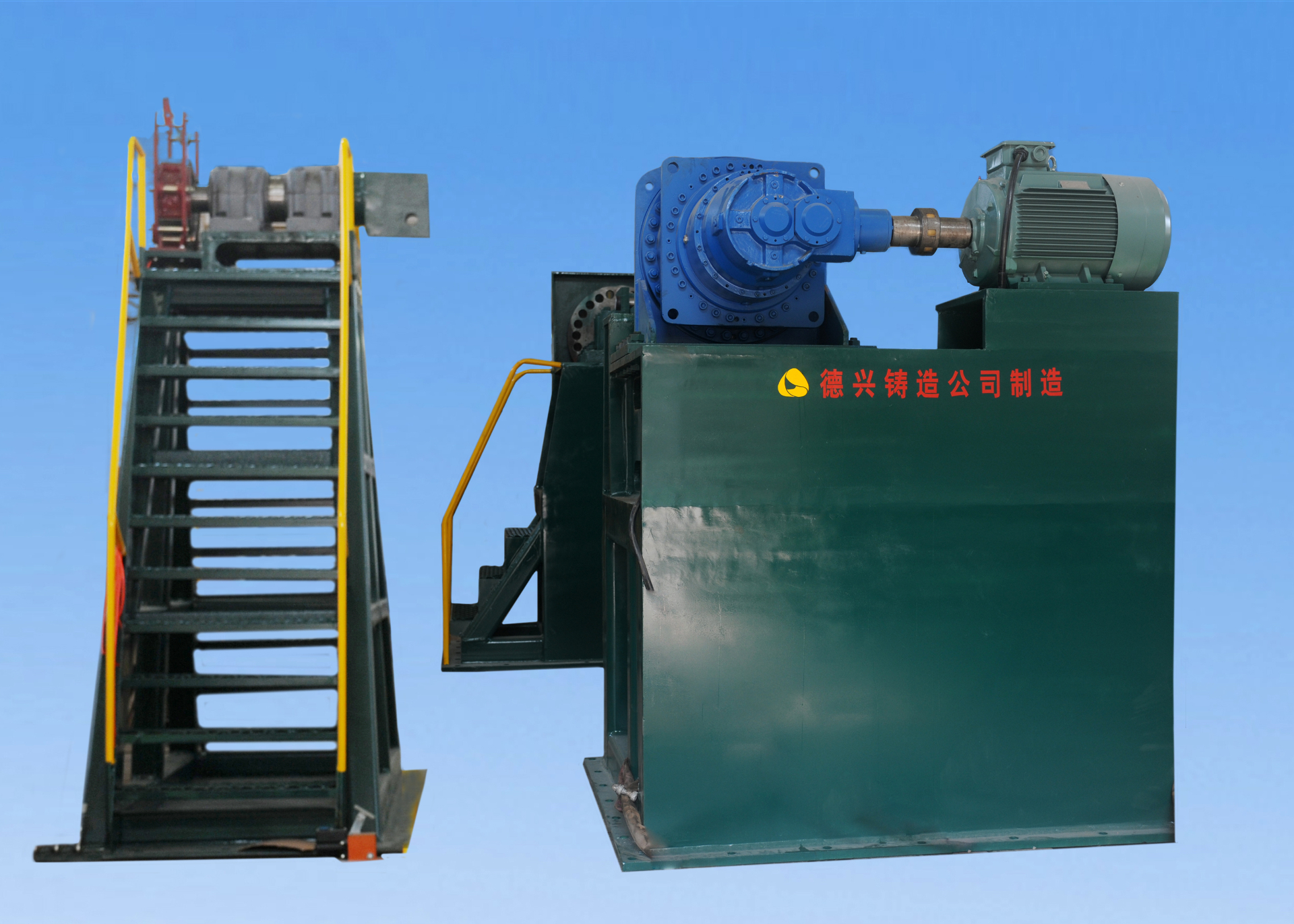

JDJ-1800 皮带张紧绞车
Larger 1800-class belt winch with planetary drive, motor and access stair — built for long overland conveyors.
破碎机易损件

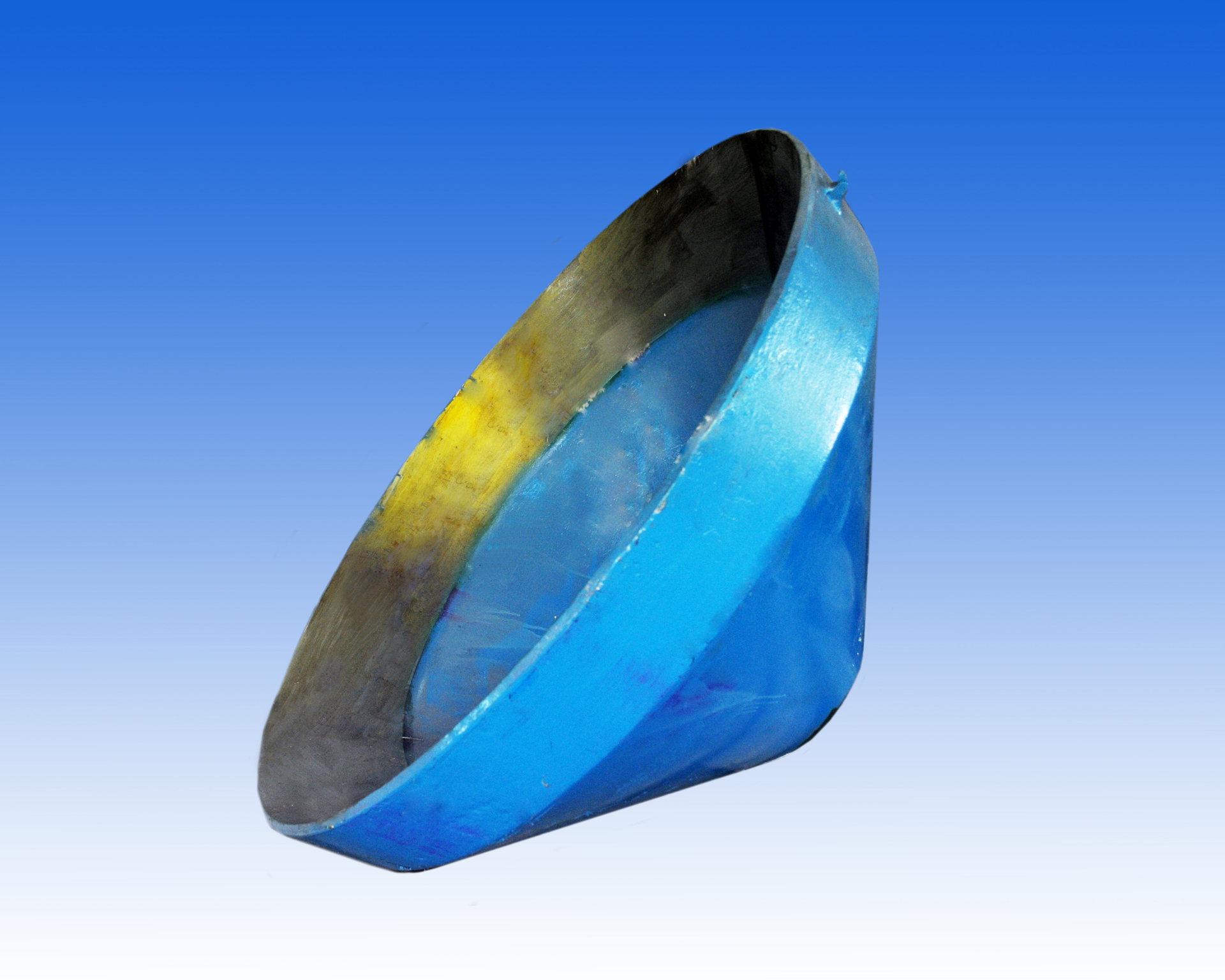

MP800 圆锥破碎机衬板段
Segment of MP800 cone crusher mantle/concave liner, painted blue for shipment — ready for site installation.
破碎机易损件

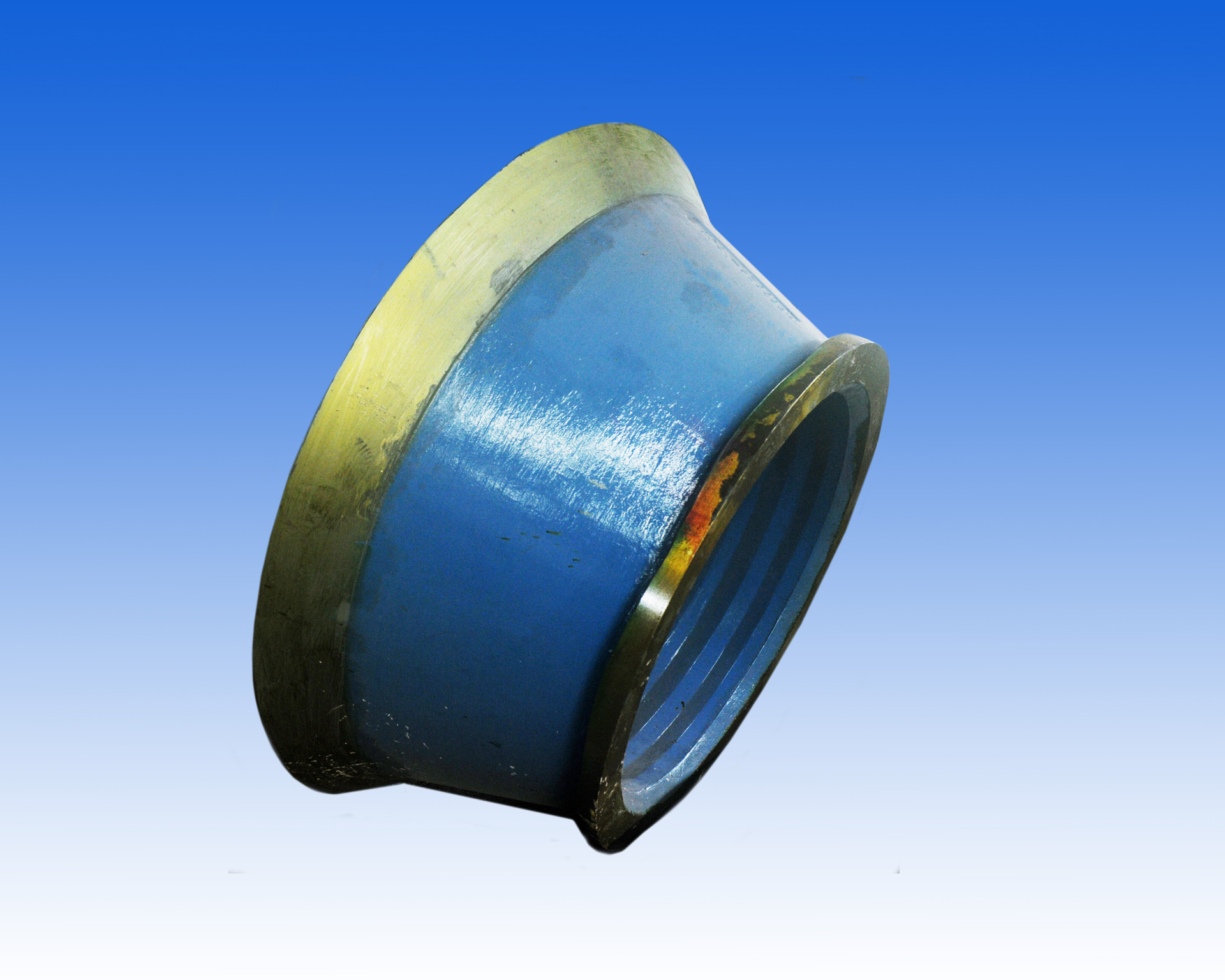

MP800 圆锥破碎机轧臼壁
Machined MP800 cone bowl liner with finished sealing faces and locking ring profile, cast in wear-resistant steel.
大型铸件
大型锥段铸件
Heavy conical shell section for crusher or mill assemblies, fabricated for high-impact mining duty and large-tonnage service.
矿山辅助设备

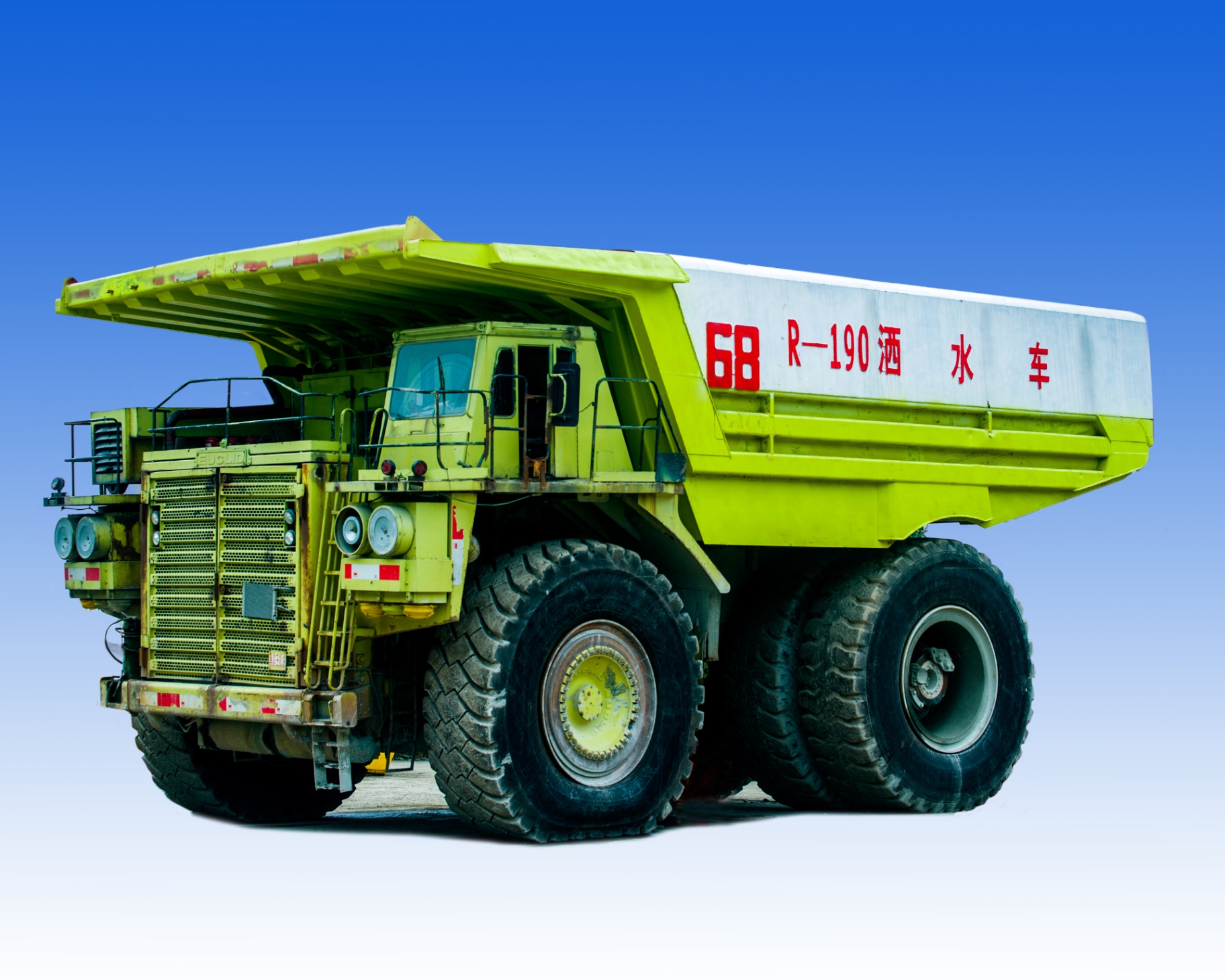

R-190 矿用洒水车
Converted ultra-class mine water truck for haul-road dust suppression, built on a heavy off-highway truck platform.
电铲总成

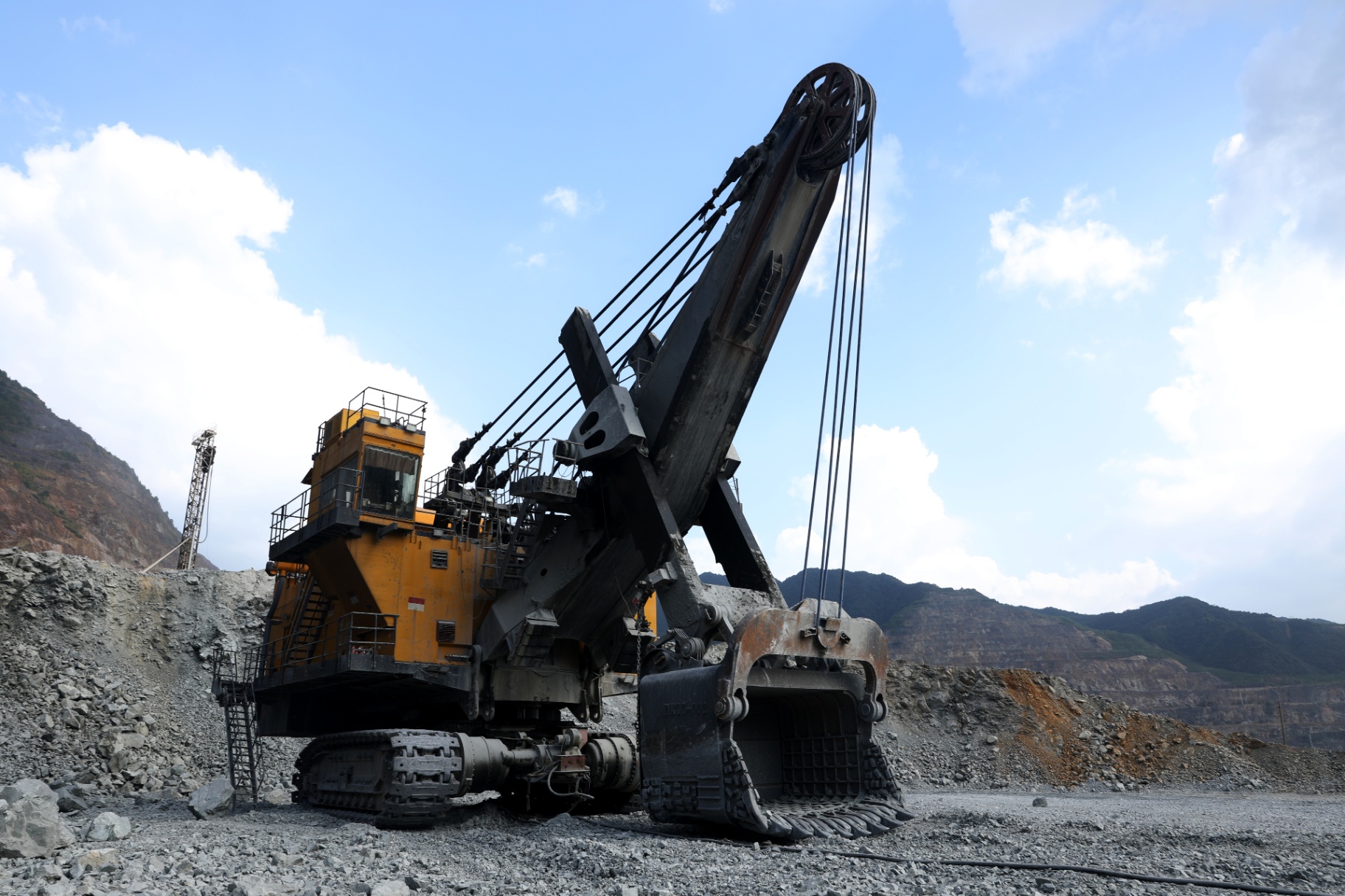

WK-35 电铲 — 现场使用
Working WK-35 electric shovel shown on site, highlighting the full machine and installed bucket assembly in service.
电铲总成

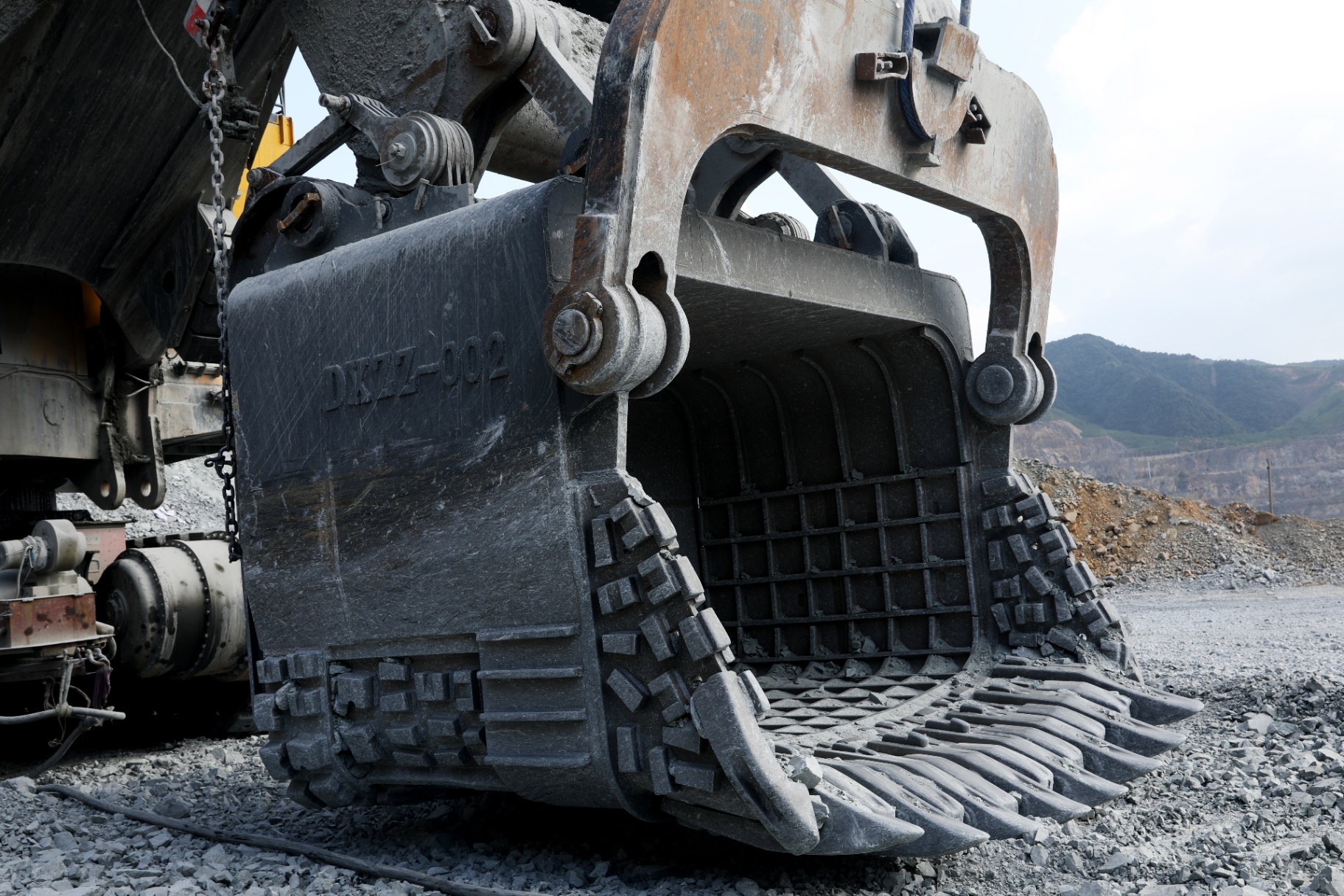

WK-35 铲斗 — 前 3/4 视图
Heavy-duty shovel bucket with tooth system and reinforced sidewalls, photographed in the mine after installation.
电铲总成

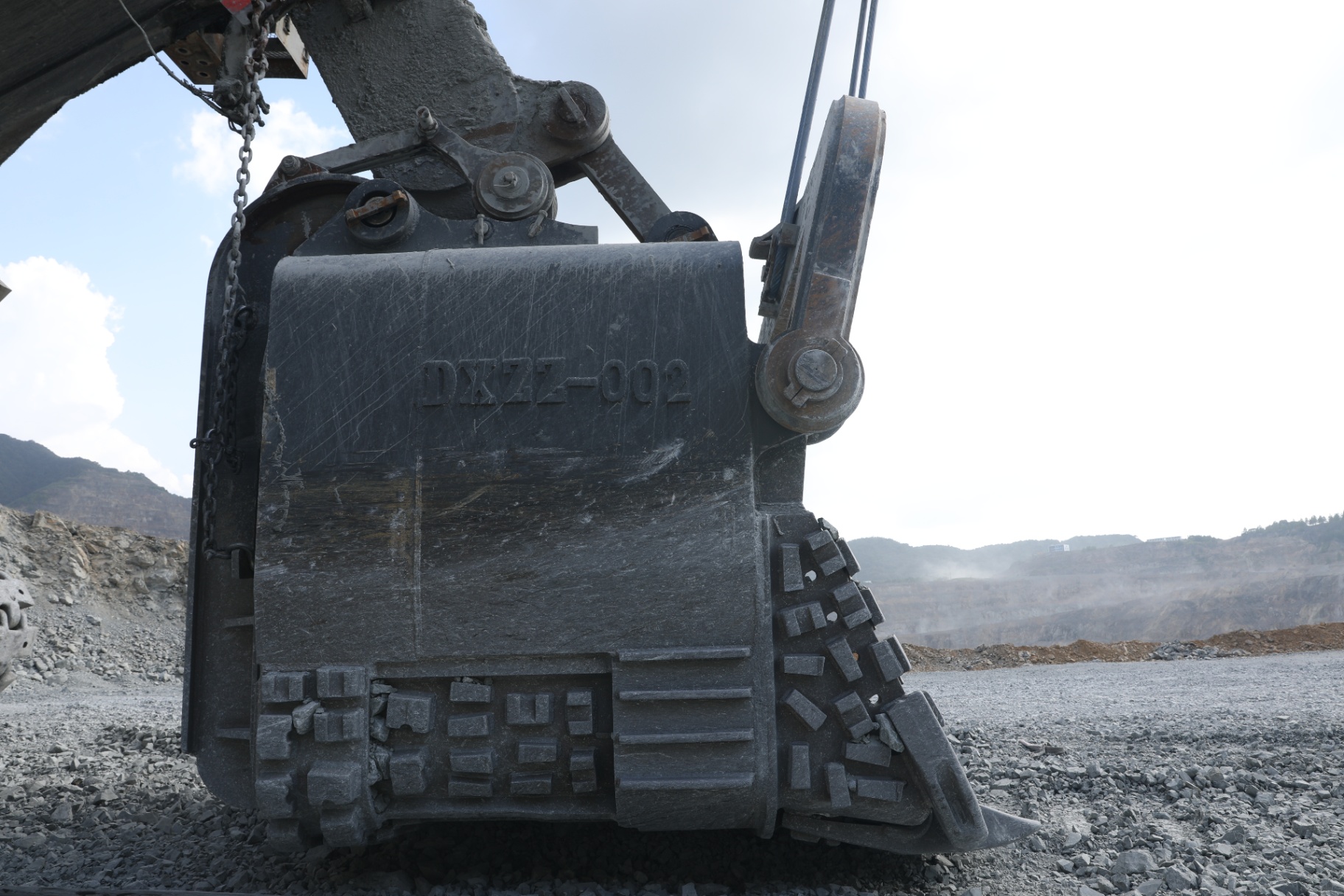

WK-35 铲斗 — 侧视图
Side profile of the WK-35 bucket showing plate thickness, wear blocks and structural reinforcement for rock loading.
电铲总成

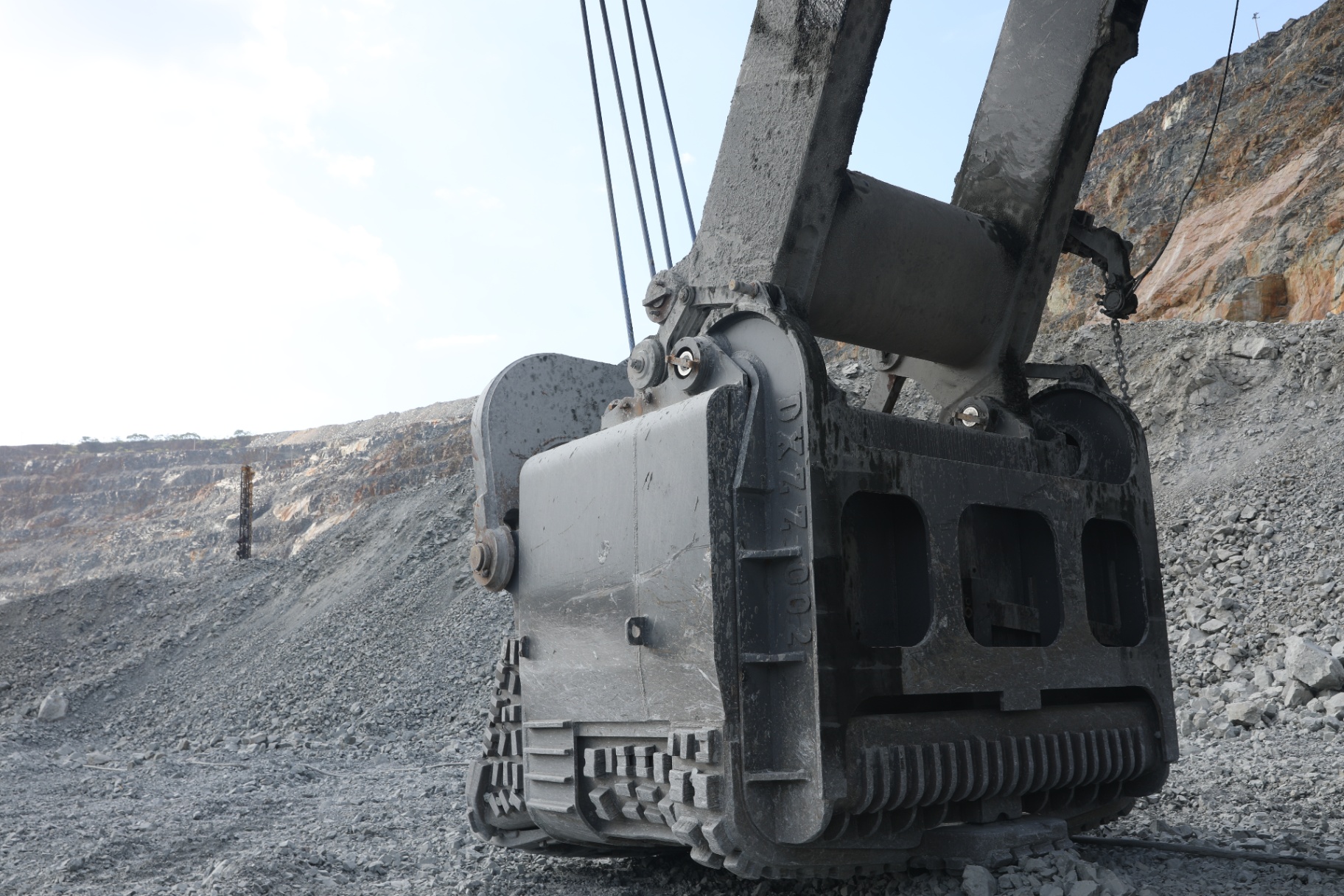

WK-35 铲斗 — 后部结构
Rear structure and hinge connection of the shovel bucket, detailing the back plate and heavy pin arrangement.
电铲总成

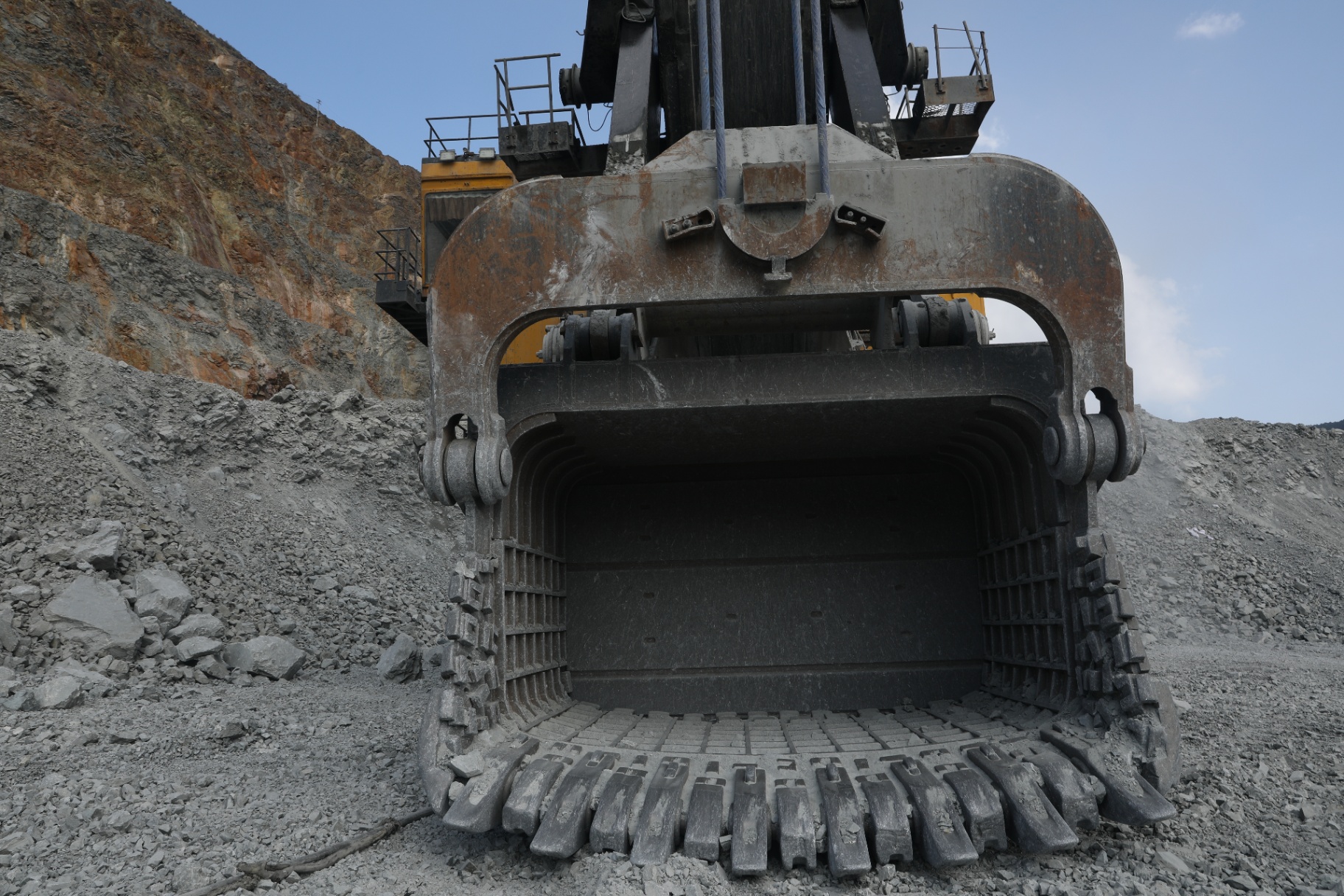

WK-35 铲斗 — 开口视图
Front opening of the bucket showing the internal rib structure, tooth line and wide loading mouth.
电铲总成

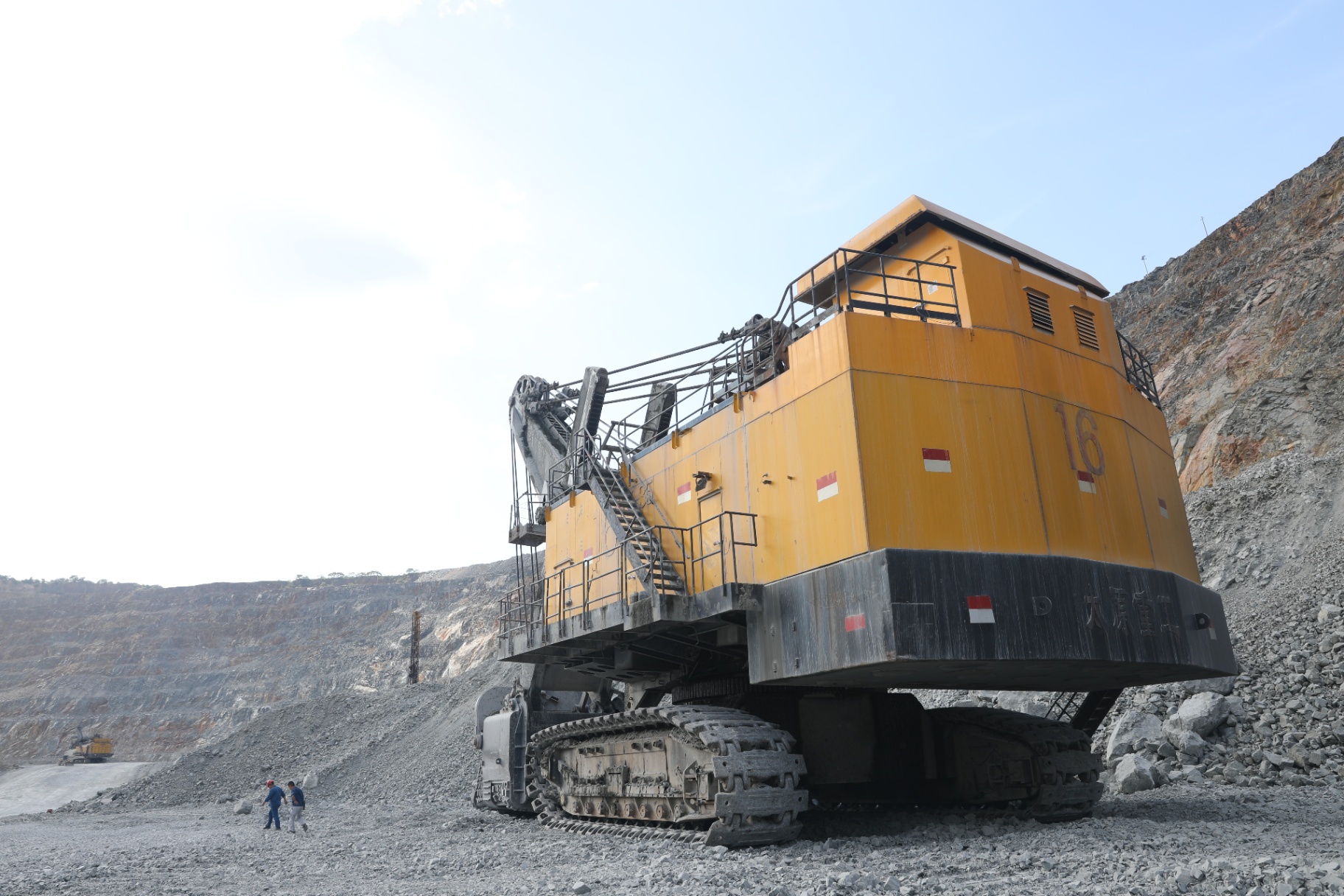

WK-35 电铲 — 后视图
Rear and side view of the field-operated WK-35 electric shovel, emphasizing crawler undercarriage and machine scale.
矿山设备配件
紧固件
高强度螺栓、双头螺柱与U型螺栓套件，用于磨机衬板、破碎机及大型矿山设备的关键紧固连接。
矿山设备配件
皮带托辊
精密加工的输送带托辊，密封轴承结构，适配长距离矿用皮带机，运行平稳、耐磨寿命长。
矿山设备配件
牙轮钻钻杆
牙轮钻机配套钻杆，采用合金钢锻造与螺纹热处理工艺，承受高扭矩与轴向冲击载荷。
矿山设备配件

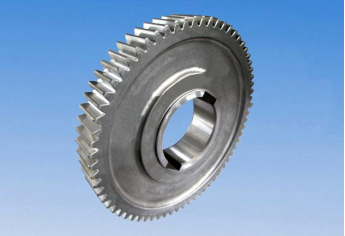

电机车齿轮
矿用电机车传动齿轮，渗碳淬火、磨齿加工，齿面精度高，传动平稳、承载能力强。
矿山设备配件

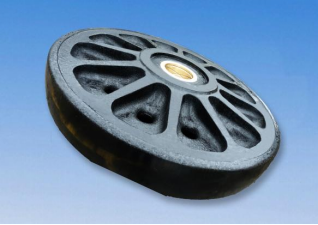

电铲引导轮
电铲履带引导轮，高强度铸钢一体成型，配铜套轴承，耐冲击、耐磨损，延长行走部件寿命。
矿山设备配件

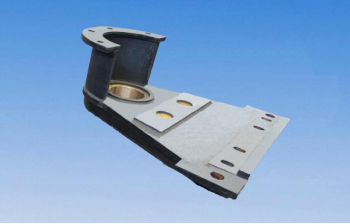

电铲护柄套
电铲斗柄护套总成，焊接式耐磨钢板结构，保护斗柄主体免受矿石冲击磨损，可现场更换。
服务

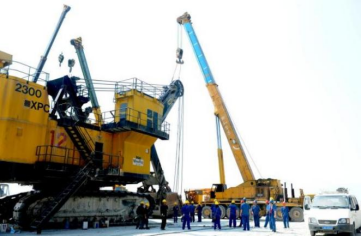

采矿设备维修维保
驻矿团队为电铲、牙轮钻、矿用卡车等大型采矿设备提供检修、大修与备件更换服务，保障设备高利用率。
服务

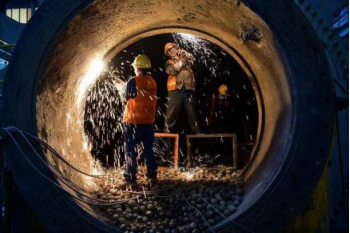

选矿设备维修维保
球磨机、半自磨机、破碎机、浮选机等选矿设备的衬板更换、检修与现场维保，全流程作业管理与安全保障。
服务

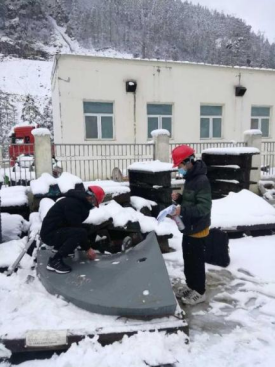

现场测绘优化改进产品
工程师赴矿山现场测绘易损件，结合工况数据进行结构与材质优化改进，提升备件寿命与使用经济性。
运行业绩
以年计、而非以小时计的运行业绩。
客户现场磨机衬板使用业绩节选。
| 磨机 | 矿点 | 材质 | 使用寿命 |
|---|---|---|---|
| Φ3.2×4.5M 球磨机 | 德兴铜矿 | ZGMn13Cr2 | 10–12 个月 |
| Φ5.5×8.5M 溢流磨机 | 德兴大山 | ZGMn13Cr2 | 10–13 个月 |
| Φ7.32×10.68M 磨机 | 德兴大山 | ZGMn13Cr2 | 13 个月 |
| Φ5.03×8.3M 磨机 | 贵溪冶炼厂 | ZGMn13Cr2 | 12 个月 |
| Φ3.2×4.5M 球磨机 | 城门山铜矿 | ZGMn13Cr2 | 14–15 个月 |
| Φ5.03×6.4M 磨机 | 紫金铜业 | ZGMn13Cr2 | 9 个月（131 万吨矿） |
| Φ10.37×5.19M 半自磨机 | 德兴大山 | 70Cr3NiMo 合金钢 | 4 个月 |
| 7 英尺圆锥破衬板 | 德兴大山 | 锰钢 | 800+ 小时 |
